Compact 915M Mid Distance Integrated Reader ISO 18000-6C standard
AD-SM206 is a fixed and compact reader, compatible with ISO 18000-6C standard, its working frequency of 860MHz ~960MHz, compact appearance, excellent reading and writing performance. The reader can be widely used in warehouse logistics management, retail logistics center management, enterprise transportation management, automatic production line management and other fields.
▋Technical Specifications
|
Functional features |
||
|
System parameters: |
ARM7+UHF modules |
|
|
Working frequency: |
National standard(920～925MHz) |
|
|
|
US standard(902～928MHz) |
|
|
|
European standard(865～868MHz) |
|
|
|
Other multinational frequency standards (customized) |
|
|
Identification distance: |
0-8m |
|
|
Group read performance: |
>20 tags |
|
|
Label protocol: |
Support ISO18000-6C (EPC GEN2) protocol electronic tags |
|
|
Frequency hopping mode: |
Wide spectrum frequency hopping (FHSS) or fixed frequency, can be set by software; |
|
|
Way of working: |
|
|
|
Rf Power: |
0-30dBm (power software adjustable) |
|
|
Antenna parameters: |
8dBi Circularly Polarized Antenna (built-in) |
|
|
Supported interfaces: |
|
|
|
Operating voltage: |
9-12V |
|
|
Recognition Tips: |
Beep or LED flash |
|
|
Power consumption: |
<4W |
|
|
Work environment |
||
|
Operating temperature: |
－20℃ ～ +70℃(Beyond the scope need to customize) |
|
|
Working humidity: |
20％ ～ 95％(no condensation) |
|
|
Storage temperature: |
－40℃ ～ +145℃ |
|
|
Physical parameters |
||
|
External dimensions: |
180x180x60MM / 265x185x70MM |
|
|
Net weight: |
550G |
|
|
Gross weight: |
1100G |
|
|
Other Notes |
||
|
Secondary development: |
Dynamic link library (DLL) and demo software source code are provided to support secondary development. |
|
|
Note: |
The recognition distance and group reading performance need to depend on the tag performance and the specific application scenario, and can be customized according to requirements |
|
▋Application Areas
-
Logistics and storage management: goods flow and storage management, as well as mail, parcels, transport luggage flow management;

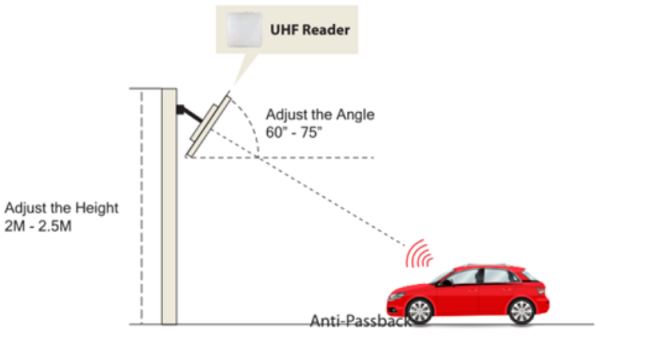

Intelligent parking management: parking management and charging automation;
Production line management: the identification of production process fixed point;
Product anti-counterfeiting detection: use the tag internal memory write protection function to identify the authenticity of the product;
Other fields: in the club management, library, student status, consumption management, attendance management, dining management, swimming pool management and other systems have been widely used.
