Vehicle Based Pipeline TDLAS Laser Infrared Methane Detector Tester PPB Level
PPB Level Vehicle-Based TDLAS Laser Natural Gas Pipeline Leakage Inspection Detection System
Description:

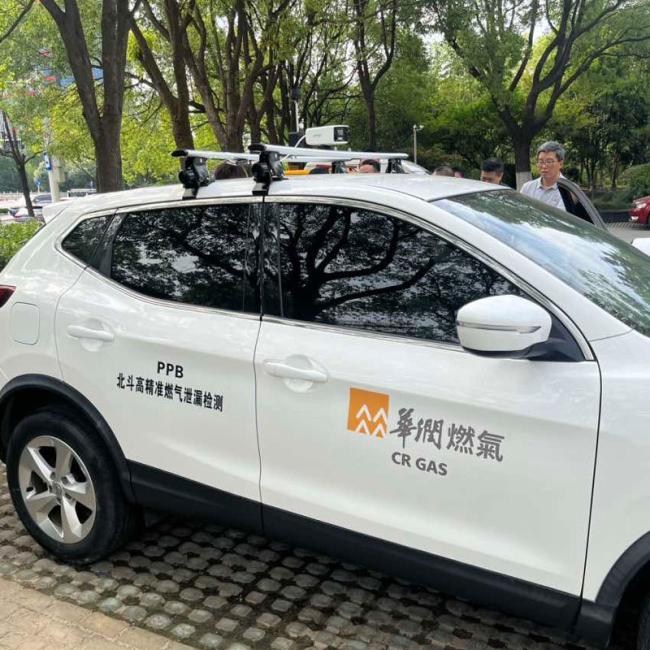

A20 High Precision Vehicle-mounted Laser Natural Gas Leak Inspection System
Vehicle-based gas leak detection using gas detection vehicles and pointed out the special features of this type of above-ground inspection of buried gas pipelines.

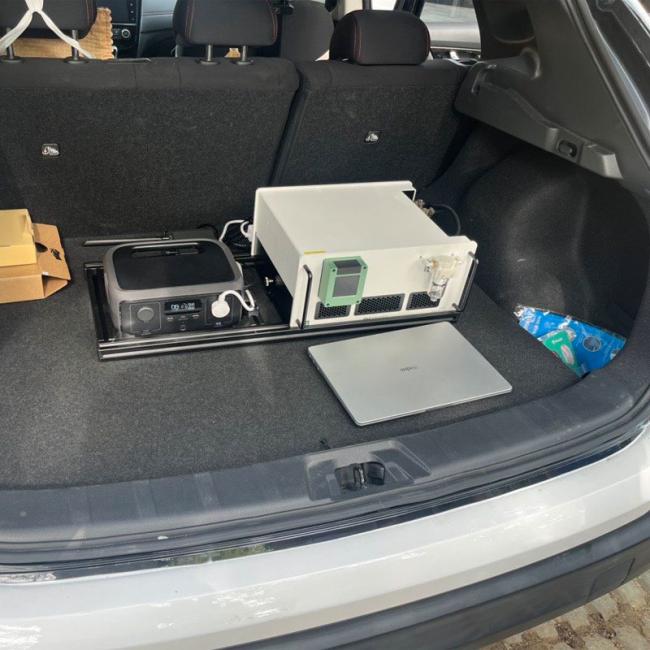

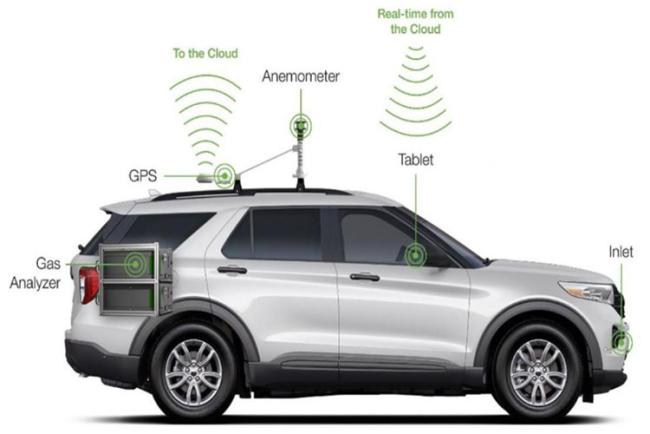

The Vehicle-based gas leak detection system can detect even the slightest traces of gas when inspecting buried gas pipelines. Measurement, speed and GPS data are recorded in the process. Sampling is carried out via an intake bar mounted in front of the vehicle or via an intake system integrated in the front of the vehicle.
Unlike traditional vehicle-mounted laser detection systems, A20 captures the distribution of leaking gases in the atmosphere through its high-precision methane and ethane detection capabilities, combined with wind direction, wind speed, and pipeline network information data, it provides directional localization and early warning for potential leak points.
A20 With static detection limit low to ppb AiLF's mid-infrared laser absorption spectroscopy technology ensures high sensitivity detection while enabling the maintainability of critical components.
With a wide temperature range and low filtration requirements, it has truly achieved laboratory instrument performance with industrial field reliability.
It significantly reduces the false alarm rate with an AI-based false alarm filtering algorithm; Inspection without stopping, parking for leaks; Continuous data history allows for evaluating leakage risks; Automatic route planning to catch distribution efficiently.

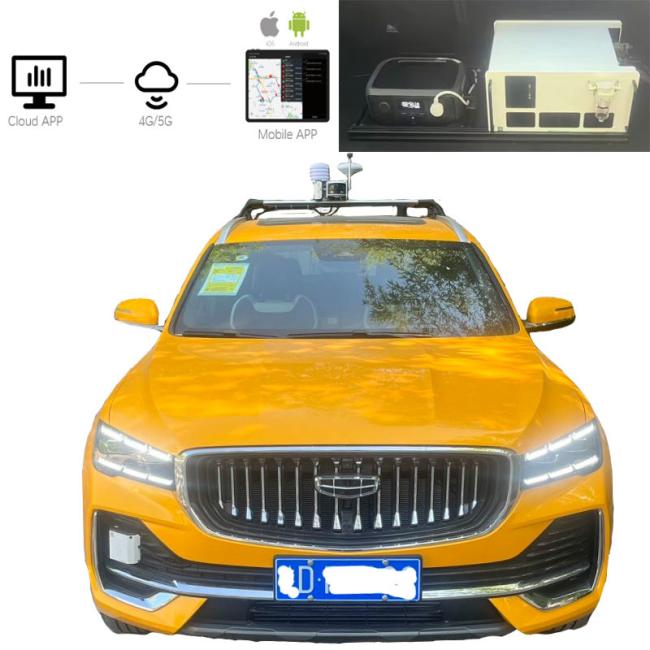

High-precision positioning, panoramic imaging, and multi-parameter environmental information integration sensing; Providing data support for intelligent AI algorithms.
Technical Parameters:
|
Model |
A20 |
Detection Subject |
Methane (CH4 I Ethane (C2H6) |
|
Measuring Principle |
Mid infrared laser absorption spec roscopy |
Concentration Range |
0-10,000 ppm(Methane) I 0-1,000ppm(Ethane) |
|
Resolution |
l ppb(Methane) I 0.5ppb(Ethane) |
Operating Temperature |
-20 ~ 60 °C |
|
Response Time |
1s |
Main Unit Weight |
12 kg |
|
Main Unit Dimension |
300 x 300 x 243 mm |
Power Supply and Power Consumption |
12V DC 120W |
|
Positioning accuracy |
< lm |
Data Display |
Digital, Image, Geographic information image |
Ideal Uses:
·Natural gas pipeline inspections
·Landfill and biogas facility monitoring
·Urban utility infrastructure surveys
·Emergency response for gas leak detection
·Industrial facility safety inspections
