Li Battery IP68 100m Remote Laser Methane Leak Detector Natural Gas Pipeline Inspection 0 - 100000 PPM
Li-battery Power IP68 100m L10 Remote Natural Gas Pipeline Inspection 0-100,000 ppm.m Laser Methane Leak Detector
Description:
The Remote Laser Methane Leak detector use Tunable Diode Laser Technology to provide low maintenance, easy-to-use, detection of methane from a safe distance, with a sensitivity to methane of 5ppm per metre. An operator can stand in a single location and, scan for fugitive surface and penetration emission indications, using a lightweight, intrinsically safe, self-calibrating hand-held laser gas device instrument.
The remote laser gas detector range offers a 0.1 second response to detected methane, over an expected 10-year instrument life. User settable audible alerts allow an operator to quickly scan for methane over a wide area, without having to use a reflector. From gas compression to biogas, fast leak detection means improved safety and environmental impact and increased profitability through reduction of gas loss and tighter management of infrastructure maintenance.

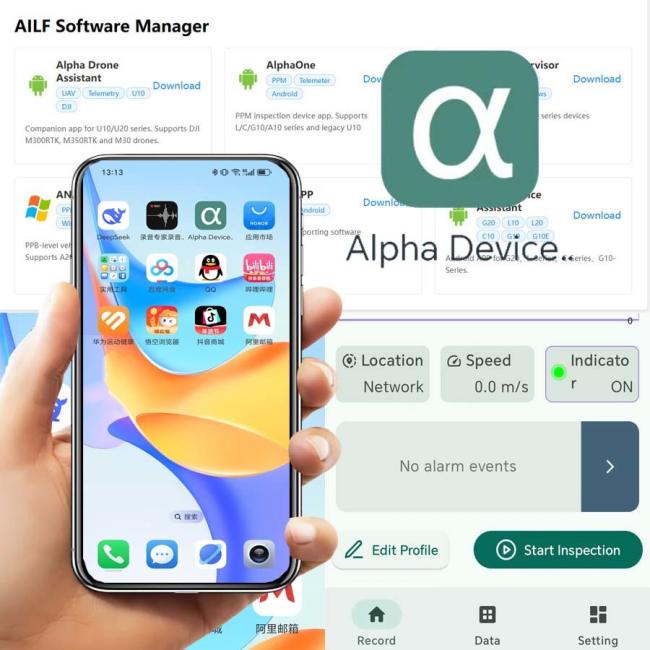

The remote laser gas detector has the longest detection range on the market and, with Bluetooth connection to mobile software, is ideal for recording GPS-linked readings along with notes and photos of monitored components and locations.
Parameters Table:
|
Model |
L10 | L10M |
Detection Subject |
Methane(CH4) |
|
Measuring Principle |
Laser Absorption Spectrum |
Detection Laser Class |
Class I Eye Safe |
|
Resolution |
5 ppm·m |
Indication Laser Class |
Class IIIR No direct sight or instrument observation |
|
Response Time |
0.1s |
Enclosure Protection Class |
IP68 |
|
Maximum Detection Distance |
100m | 50m |
Explosion-proof Grade |
ATEX Exib IIC T4 Gb |
|
Concentration Range |
0~100,000 ppm·m |
Operating Temperature |
-20 ~ 50 ℃ |
|
Power supply and endurance |
Lithium battery > 10h |
Operating Humidity |
< 98%RH, no condensation |
|
Main Unit Dimension |
0.38kg | 0.36kg |
Main Unit Dimension |
170 x 52 x 52 mm |
Characters:
Remote methane detection
Leak inspection report generated
Leak detection and repair (LDAR)
Surface emissions monitoring
Emergency Response and HazMat
>330 feet (100 meters) methane specific detection
Sensitive to 5ppm*m
Audible and visual alarms
Intrinsically safe
No warm up or cool down, full day battery life
Application:
Natural Gas Leak Detection
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.
