Portable TDLAS Laser Methane Leak Detector Internal Pump Natural Gas Pipeline Inspection Rapid Response
Portable TDLAS Laser Methane Leak Detector Internal Pump Natural Gas Pipeline Inspection Rapid Response
Description:
Portable Laser Gas Detector provides better detection performance and long service life that traditional equipment don't have; Combined with mature sampling methods by a trolley or a probe, it makes leak detection rapider and more accurate.
With the built-in gas reference, the G10 portable laser gas detector unit can continuously self-calibrate during operation to ensure accurate detection.
Full-range detection supports readings of concentration in ppm, % LEL and %VOL.
Equipped with the gas pump with a higher flow and efficient filtering system, G10 can be mounted on a trolley or an electric bicycle.
| Model | G10 | Detection Subject | Methane(CH4) |
| Measuring Principle | Laser Absorption Spectrum | Display Unit | PPM,%LEL,%VOL |
| Resolution | 0.5 ppm | Explosion-Proof Grade | ATEX Exib IIC T4 Gb |
| Response Time | 0.1 s | Operating Temperature | -20 ~ 50 ºC |
| Concentration Range | 0~100% VOL | Operating Humidity | < 98%RH, no condensation |
| Enclosure Protection Class | IP66 | Main Unit Dimension | 208 x 78 x 53 mm |
| Power supply and Endurance | Lithium battery >10h | Main Unit Weight | 1.1 kg |
| Accessories | Strap, hand-held probe | Optional Accessories | Bell-shaped probe,trolley |
Key features and benefits:
High Sensitivity:
TDLAS-based detectors can achieve 0.5ppm-level sensitivity, allowing for the detection of even small leaks.
Specificity:
This TDLAS based laser methane detector can enabling accurate leak identification with fast response time at 0.1s.
Real-time Monitoring:
TDLAS allows for real-time measurements, providing immediate feedback on methane values.
Versatility:
They can be used in various applications, including leak detection in pipelines, industrial facilities, and landfills.
Examples of applications:

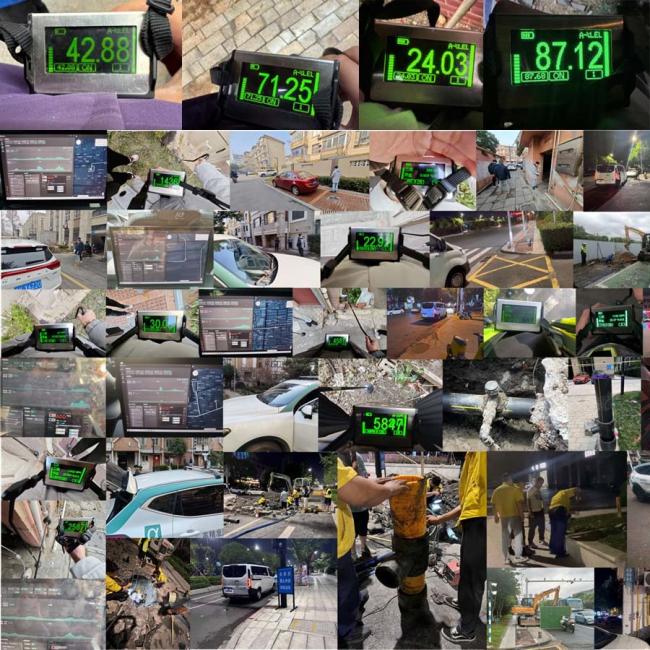

Natural gas pipeline inspections
