50m Remote Laser Methane Leak Detector for Natural Gas Pipeline Leak Inspection Inspection

Description:

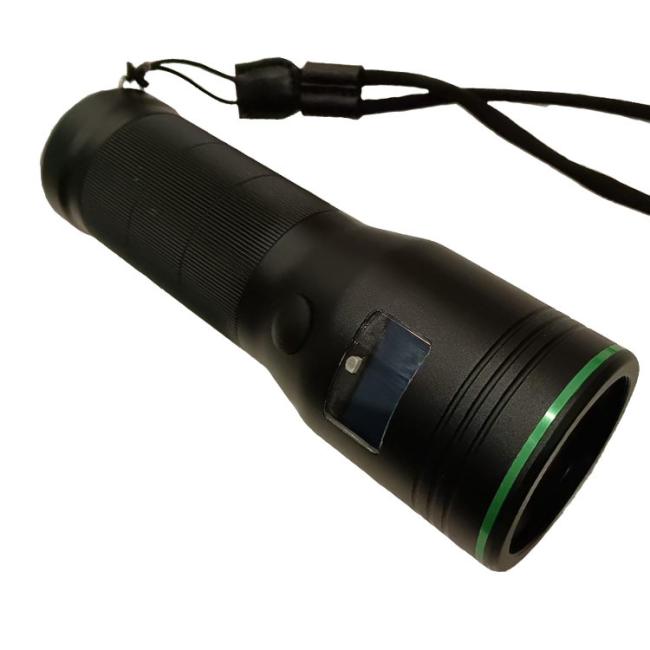

L10 Remote Laser Methane Detector Using tunable laser diode (tldas) technology, the remote handheld methane leak detection from AiLF instruments utilises a laser tuned to measure methane concentration transmitted only through a gas plume. This remote laser methane leak detector can be used for better qualitation of ch4. The methane absorbs a portion of the light that, upon reflection, is detected by the handheld remote methane detector unit. The L10 laser methane detector is a compact and portable laser methane gas detector with a laser. Suitable for the detection of leaks in underground and above ground pipelines. Handheld laser methane detector for fast and safe detection of methane leaks at a distance of up to 50 meters.

The remote laser gas detector has the long detection range on the market, with Bluetooth connection to mobile ADA software, is ideal for recording GPS-linked readings along with notes and photos of monitored components and locations.

How It Works:
The laser beam of the Remote laser methane leak detector is transmitted towards the target. As the beam passes through the gas plume, some of the light is absorbed by the methane molecules. A sensor then captures the reflected light, and by analyzing how much is absorbed, the system calculates the methane concentration.The results will show on the display screen immediately.

Key Features:

Methane detection at a distance 165 ft (50 metres)
Bluetooth connection for instant field reporting, using a mobile App ADA software
Instrument weight 0.79lbs (360g)
10 hours rechargeable battery for continuous
Suitable for compliance reporting
IP68 enclosure rating

Technical Parameters

Ideal Uses

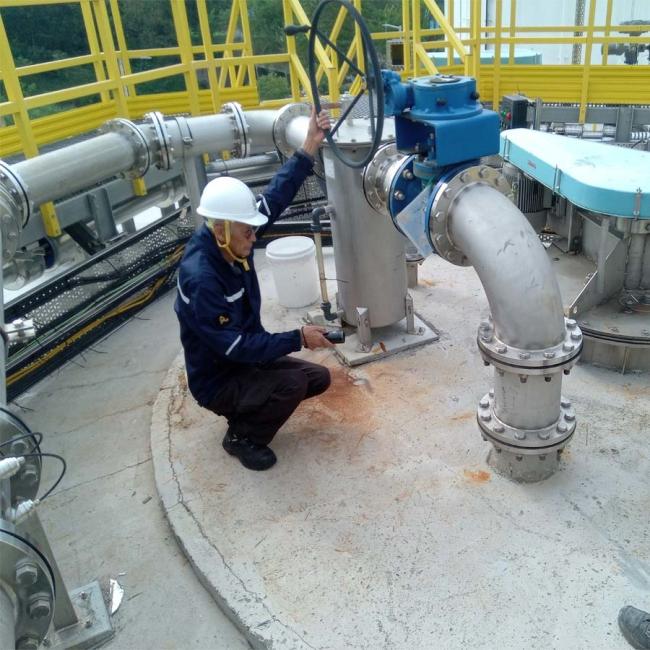

Natural gas pipeline inspections

Landfill and biogas facility monitoring

Urban utility infrastructure surveys

Emergency response for gas leak detection

Industrial facility safety inspections
