50m Remote Laser Methane Leak Detector Pipeline Inspection Walk Using RMLD Leak Measurement

Description:

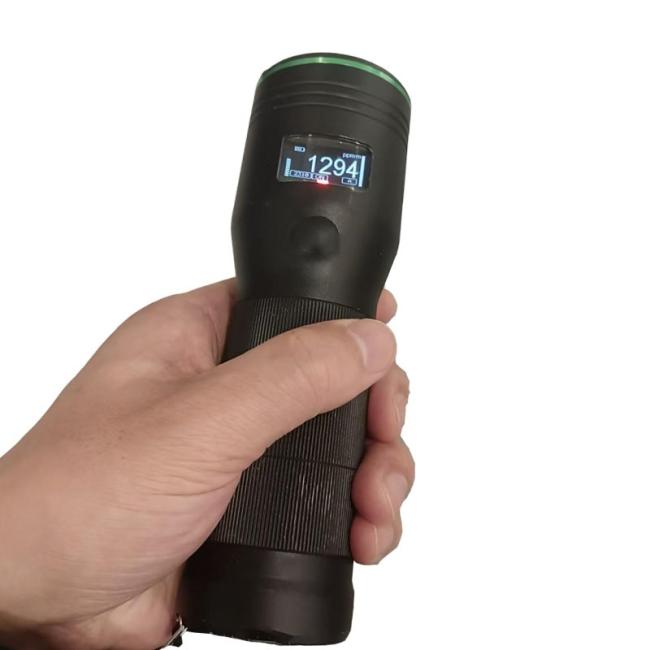

L10 Remote Laser Methane Detector is our truly portable laser methane leak detector adopts the most advanced TDLAS technology, which will realize non-contact and remote detection for the places where the patroller cannot reach. The leakage point and source can be located and found accurately and quickly.Through the remote detection capabilities, it is the perfect tool for hard-to-reach locations like pipes in shafts or under the ceiling. then to improve the work efficiency and reduce labor intensity. Handheld laser methane detector for fast and safe detection of methane leaks at a distance of up to 50 meters.

The remote laser methane leak detector has the long detection range on the market, with Bluetooth connection to mobile ADA software, is ideal for recording GPS-linked readings along with notes and photos of leak locations.

How It Works:
The laser beam of the Remote laser methane leak detector is transmitted towards the target. As the beam passes through the gas plume, some of the light is absorbed by the methane molecules. A sensor then captures the reflected light, and by analyzing how much is absorbed, the system calculates the methane concentration.The results will show on the display screen immediately.

Key Features:

Methane detection at a distance 165 ft (50 metres)
Small size and light-weight 0.79lbs (360g) easy to carry
Good selectivity, response to Methane only
One-button operation
Sensitivity of 5ppm·m
Fast response, no alarm delay
Color LCD display
Visual, audible alarm
Adjustable alarming level between 0-100,000ppm·m
Self -test function
Low consumption, can be used for continuous operating more than 10 hours
Intrinsically safe design
Self-Test and Calibration Functions
Datalogging Bluetooth connection for instant field reporting, using a mobile App ADA software
Suitable for compliance reporting
IP68 enclosure rating

Technical Parameters

Ideal Application:

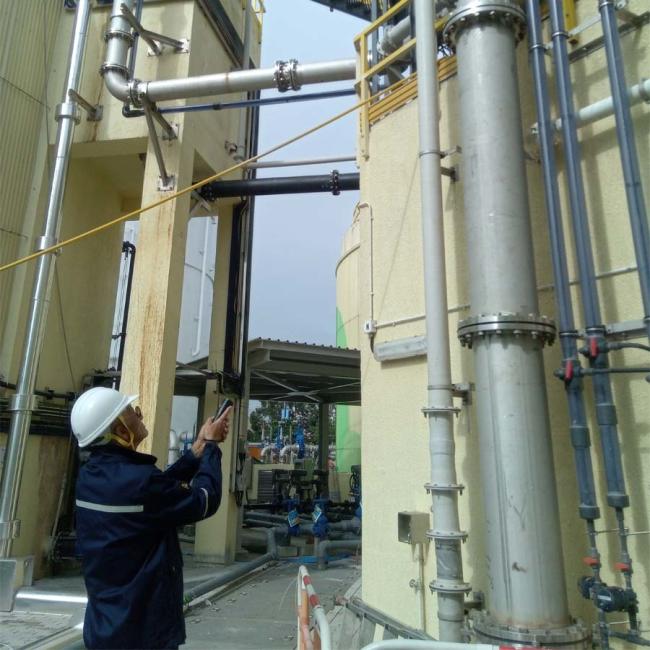

Remote laser methane Leak detector is primarily used in oil and gas exploration, environmental monitoring, gas pipeline inspection, industrial safety, and emergency response. It helps in methane leak detection, ensuring workplace safety, and preventing environmental hazards in these sectors.

    Natural gas pipeline inspections

Landfill and biogas facility monitoring

Urban utility infrastructure surveys

Emergency response for gas leak detection

Industrial facility safety inspections
