High Efficiency Disc Organic Fertilizer Granulator , Ceramic Sand Proppant Disc Pelletizer

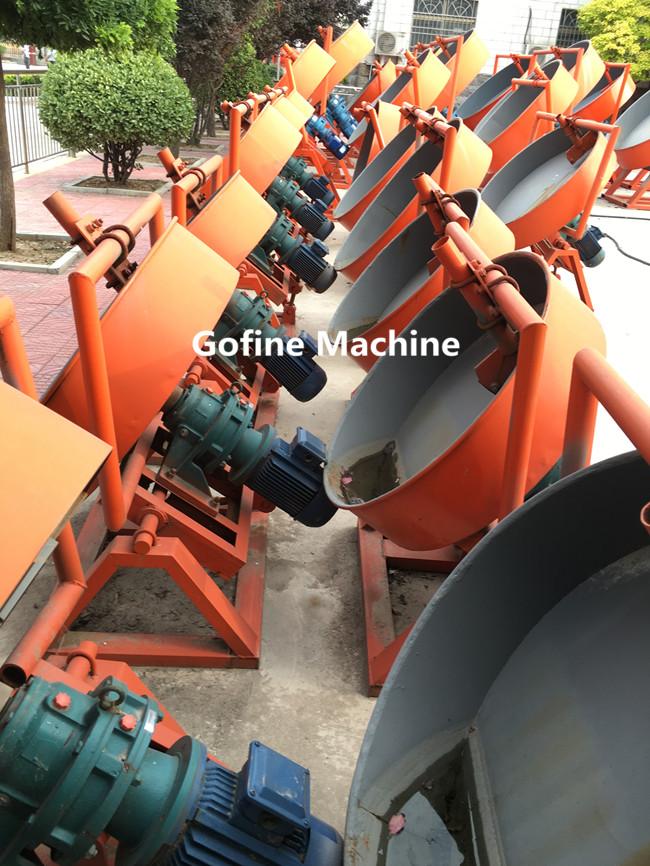

Ceramic Sand Proppant Disc Pelletizer / Disk Granulator
Working Principles:
♦ The pulley and the belt are driven by the main motor and the pinion is driven by the reduction gear.
♦ The pinion gear is split with the large gear fixed at the bottom of the disc, and they mesh with each other and work in opposite directions.
♦ The large gear is mounted on the granulation disc fixed on the frame adjustment plate through a professionally designed tapered hole.
♦ The granulation disc is continuously rotated, and the spray device is used to evenly bond the materials together to form a spherical shape.
♦ In addition, an automatic material feeding system is designed on the upper part of the granulation tray to prevent the material from sticking to the wall, thereby greatly improving the service life of the machine.
♦ As the motor continuously rotates and the material continuously enters, mass production can be realized to meet the needs of the user.
Product Details
- Uniform granulation,high granulation rate,stable operation,durable equipment and long service life.
- The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
- The plates are reinforced with a number of radiant steel plates,which are durable and never deformed
- There is high strength fiberglass in the granulation pan making the machine durable
parameter
| Model |
Diameter of pelletizing disc(mm) |
disc edge height (mm) |
speed(r/min) | power(kw) | Throughput(T/h) | Reducer Model | Shape size(mm) |
| YZ-500 |
500 |
200 | 32 | 0.55 | 0.02-0.05 | BWY0-43-1.55KW | 650*600*800 |
| YZ-600 | 600 | 280 | 33.5 | 0.75 | 0.05-0.1 | BWY0-43-1.55KW | 800*700*950 |
| YZ-800 | 800 |
200 |
21 | 1.5 | 0.1-0.2 | XWD4-71-1.5KW | 900*1000*1100 |
| YZ-1000 | 1000 | 250 | 21 | 1.5 | 0.2-0.3 | XWD4-71-1.5KW | 1200*950*1300 |
| YZ-1200 | 1200 | 250 | 21 | 1.5 | 0.3-0.5 | XWD4-71-1.5KW | 1200*1470*1700 |
| YZ-1500 | 1500 | 300 | 21 | 3 | 0.5-0.8 | XWD5-71-3KW | 2060*1700*2130 |
| YZ-1800 | 1800 | 300 | 21 | 3 | 0.8-1.2 | XWD5-71-3KW | 2060*1700*2130 |
| YZ-2000 | 2000 | 350 | 21 | 4 | 1.2-1.5 | XWD5-71-4KW | 2260*1650*2250 |
| YZ-2500 | 2500 | 450 | 14 | 7.5 | 1.5-2.0 | ZQ350 | 2900+2000*2750 |
| YZ-2800 | 2800 | 450 | 14 | 11 | 2-3 | ZQ350 | 3200*2200*3000 |
| YZ-3000 | 3000 | 450 | 14 | 11 | 2-4 | ZQ350 | 3400 2400*3100 |
| YZ-3600 | 3600 | 450 | 13 | 18.5 | 4-6 | ZQ400 | 4100* 2900*3800 |
