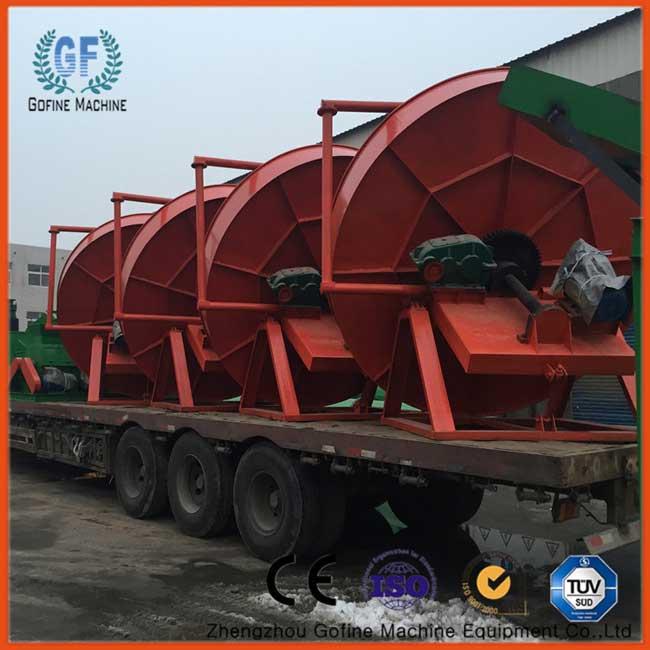

7.5kw Power Fertilizer Granulating Machine Pan Granulator Machine Overall Disc Structure
Wide Use NPK fertilizer pan granulator rounding machine, Pan Granulator Machine
Introduction
Overall disc structure, granulation rate reaches above 93% The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.
The reduction gears and motor using the flexible belt driving, smooth start, slowing impact, extend equipment service life.
The design of disc bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.
disc granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate.
Specification
| Type (m) | Speed the check(r/min) | Production output (t/h) | Power (kw) | Adjustable scope (o) | Weight (t) |
| Φ2.2 | 14.25 | 4-8 | 7.5 | 35-55 | 2.85 |
| Φ2.5 | 11.81 | 5-10 | 7.5 | 35-55 | 3.25 |
| Φ2.8 | 11.21 | 12-16 | 7.5 | 35-55 | 3.71 |
| Φ3.0 | 11.3 | 15-18 | 11 | 35-55 | 4.35 |
| Φ3.2 | 9.6 | 15-20 | 11 | 35-55 | 5.11 |
| Φ3.6 | 9.1 | 18-24 | 15 | 35-55 | 6.51 |
welcome you to know more on our machine, look forward to your cooperation!
