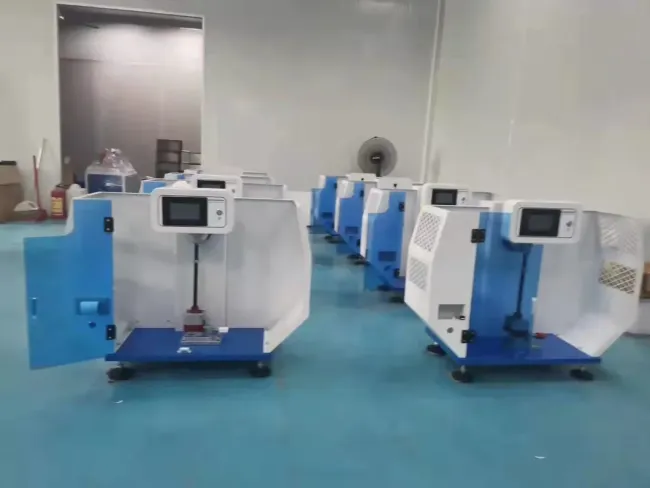

Digital Charpy Izod Impact Tester Machine For Evaluating Plastic Materials Impact Resistance
This digital Charpy impact tester is designed to measure the impact toughness of rigid plastics, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials, and other non-metallic materials. It serves as ideal testing equipment for chemical industries, research institutes, universities, and quality testing departments.
- ISO179-2000 Determination of Plastics - Hard Materials Charpy Impact Strength
- GB/T1043-2008 Rigid Plastic Charpy Impact Test Method
- JB/T8762-1998 Plastics Charpy Impact Testing Machine
- GB/T 18743-2002 Charpy Impact Test Method for Fluid Transport Via Thermoplastic Pipe (Suitable for pipe pieces)
- High-precision intelligent controller with LCD display for intuitive and accurate data reading
- Patented carbon fiber lever prevents shaking during impact direction testing, improves material rigidity, concentrates impact strength on pendulum centroid, and extends service life
- Imported high-resolution digital encoders for superior angle measurement accuracy and stability
- Aerodynamic impact hammer and imported ball bearings minimize mechanical friction losses
- Automatic calculation of final results with storage and averaging of 12 test data sets
- Optional Chinese/English interface with customizable units (J/m, KJ/m², kg-cm/cm, ft-lb/in)
- Built-in mini printer for test data output
| Parameter | Charpy Impact | Izod Impact |
|---|---|---|
| Pendulum Energy | 1J, 2J, 4J, 5J | 1J, 2.75J, 5.5J |
| Pendulum Angle | 150° | |
| Blade Angle | 30° | |
| Blade Front Angle | 5° | |
| Blade Back Angle | 10° | |
| Impact Speed | 2.9m/s | 3.5m/s |
| Impact Center Distance | 221mm | 335mm |
| Blade Filleted Radius | R=2mm±0.5mm | R=0.8mm±0.2mm |
| Energy Loss | 0.5J ≤4.0J 1.0J ≤2.0J 2.0J ≤1.0J ≥4.0J≤0.5J |
2.75J ≤0.06J 5.5J ≤0.12J |
| Pendulum Torque | Pd1J=0.53590Nm Pd2J=1.07180Nm Pd4J=2.14359Nm Pd5J=2.67949Nm |
Pd2.75J=1.47372Nm Pd5.5J=2.94744Nm |
| Print Output | Capacity, Angle, Energy, etc. | |
| Power Supply | AC220V±10% 50HZ | |
Discussion of testing requirements and technical details, product recommendations, and quotation based on customer specifications.
Creation of technical drawings for custom requirements, provision of reference photos, and confirmation of final solution and pricing.
Manufacturing according to confirmed requirements, production progress photos, final product confirmation, calibration services, and timely shipping arrangements.
On-site installation support and comprehensive after-sales service provision.
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for our customers. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Urgent requirements receive special arrangements.
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
