ASTM D638 Universal Testing Machine 25-500mm/min Table Type Tensile Testing Equipment
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Tensile testing equipment with Servo motor is widely used in controlling the quality across multiple industries:
- Rubber and Plastics
- Metallurgical iron and steel
- Manufacturing machinery
- Electronic equipment
- Automobile production
- Textile fiber
- Wire and cable
- Packaging materials
Test capabilities include: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.
| Model | UP-2000 |
|---|---|
| Load range | 5-200kg |
| Unit exchange | kgf, gf, Ton, lbf, N, kN |
| Accuracy of load | ± 0.5% of indicated value |
| Load resolution | 1/10,000 |
| Deformation measuring resolution | 0.01mm |
| Action | Tensile and compression function |
| Load Magnifying Rate | Variable speed |
| Max. tensile space | 650mm (Not including fixture) |
| Valid test width | 400mm |
| Test speed | 25-500mm/min |
| Input mode of speed | Computer |
| Speed accuracy | ± 0.5% |
| Displacement accuracy | 0.01mm |
| Data sampling | 50 r/s |
| Spacing function | 10 spacings for each time, the smallest and largest data will display and average value will be calculated automatically |
| Display | Computer (s) |
| Motor | AC motor |
| Control system | Computer |

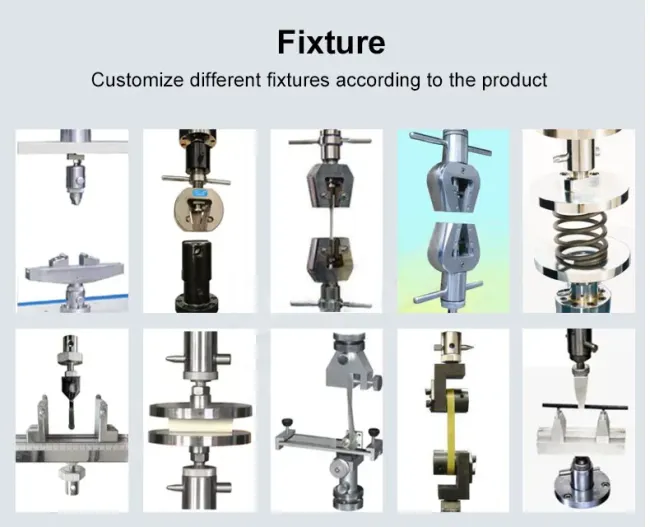

| Standard Accessories | 1 Sensor; A pair of tensile fixture; a pair of universal functional fixture |
| Power | 1∮, 220V/50HZ |
During the whole business process, we offer Consultative Selling services:
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
- Customization: Create drawings and reference photos for customized requirements, confirm final solution and pricing
- Production & Delivery: Manufacture according to PO requirements, provide production photos, perform calibration, and arrange shipping
- Installation & Support: On-site installation and comprehensive after-sales support
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation.
If your machine doesn't work, contact us via email or phone. We will troubleshoot through conversation or video chat and provide solutions within 24 to 48 hours.
Standard machines in stock: 3-7 working days. No stock: 15-20 working days after payment. Urgent orders receive special arrangements.
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin use. On-site installation assistance available when necessary.
