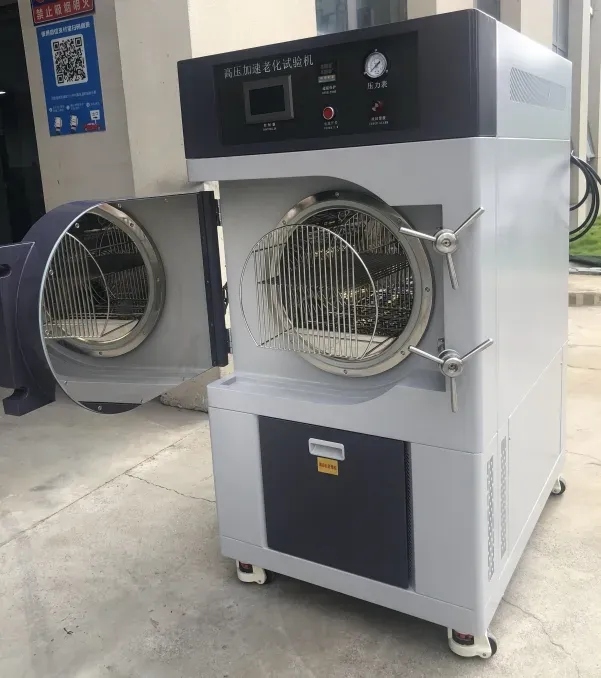

Alarm Equipped High Pressure Accelerated Aging Chamber With Over Temperature Protection
HAST (Highly Accelerated Stress Test) chambers reduce the time required for semiconductor humidity testing by elevating temperatures above 100°C and increasing pressure, simulating normal humidity tests while maintaining identical failure mechanisms. Testing can be completed in days or weeks rather than months.
- Automatic humidity filling system
- Automatic door lock mechanism
- Round workspace design for wider sample board loading
- Hermetic power-pin system for bias testing
- Air HAST modification available for faster lead-free solder whisker resistance testing
| Parameter | Specification |
|---|---|
| Temperature Range (Saturated Steam) | 100°C~135°C (Operating temperature: 120°C, 100Kpa / 133°C, 200Kpa; 143°C available as special order) |
| Pressure Measurement | Relative pressure: Display values indicated on pressure gauge Absolute pressure: Display values + 100 Kpa (actual value in inner box) |
| Humidity of Saturated Steam | 100%RH saturation steam humidity |
| Steam Pressure (Absolute Pressure) | 101.3Kpa + 0.0Kg/cm² ~ 2.0Kg/cm² (3.0Kg/cm² available as special standard) |
| Recursive Device | Steam natural convection circulation |
| Safety Protective Devices | Water short storage protection, over pressure protection (automatic/manual water replenishing, automatic pressure discharge function) |
| Accessories | Two layers stainless steel plate |
| Power Requirements | AC 220V, 1ph 3 Lines, 50/60Hz |
- Large capacity water tank for extended testing time with fully automatic water supply
- Sample signal application terminals matched to sample quantity
- 7-inch color touch screen with 250 sets of 12,500 segment programs
- USB curve data download function with RS-485 communication interface
- Efficient vacuum pump for high purity saturated steam
- Integrated silicone door pad with excellent gas density and long service life
- Customized equipment available for specific customer requirements
- Customer Inquiry: Technical requirement discussion, product recommendation, and quotation
- Specifications Customization: Technical drawings, product appearance reference, and final solution confirmation
- Production and Delivery: Manufacturing according to PO requirements, production progress updates, calibration, and shipping coordination
- Installation and After-Sales: Field installation and comprehensive after-sales support
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for international customers. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom branding and logos.
We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
