UP-6115 Hanging Basket Cold And Hot Temperature Chamber , Impact Test Chamber For IC Chip

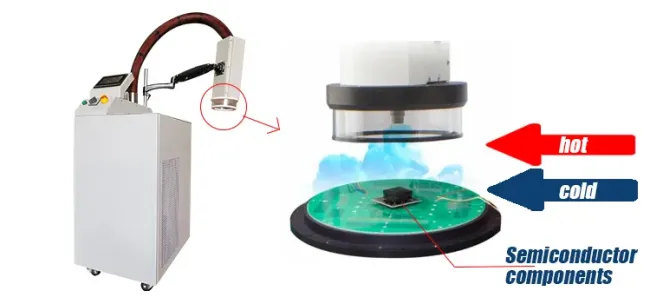

The UP-6115 Hanging Basket Cold and Hot Temperature Impact Test Chamber is designed for semiconductor electronic components manufacturing in harsh environments. This system performs critical IC package assembly and test stages including burn-in, electronic hot and cold testing at temperature, and various environmental test simulations.
This system provides the same functionality as high and low temperature shock test chambers.
| Parameter | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 |
|---|---|---|---|---|---|
| External dimension (air) cm | 45*85*130 | 55*95*170 | 70*100*175 | 80*120*185 | 100*150*185 |
| Dimension (water) cm | 45*85*130 | 45*85*130 | 55*95*170 | 70*100*175 | 80*120*185 |
| Cooling water at 25°C | 0.6m³/h | 1.5m³/h | 2.6m³/h | 3.6m³/h | 7m³/h |
| Power supply: 380V, 50Hz | 4.5kw max | 6.8kw max | 9.2kw max | 12.5kw max | 16.5kw max |
- Air Cooled Type: Copper tube and aluminum fin condensing mode with upper air outlet type. Condensing fan uses German EBM axial flow fan
- Water Cooled: Models with "W" designation are water-cooled
- Water-Cooled Condenser: Tubular heat exchanger (Paris / Shen)
- Power Supply: Can be customized for 460V 60Hz, 220V 60Hz three-phase
- Shell Material: Plastic spraying of cold rolled sheet (standard color 7035)
- Temperature Expansion: High temperature to +300°C
- Customer Inquiry: Technical requirement discussion, product recommendations, and quotation
- Customization: Technical drawings, appearance references, and final solution confirmation
- Production & Delivery: Manufacturing according to PO requirements, production updates, calibration, and shipping coordination
- Installation & Support: Field installation and comprehensive after-sales support
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with free maintenance. Extended warranty available for sea transportation. Technical support provided via email, phone, or video chat with solutions offered within 24-48 hours.
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
