Advanced Cyclic Salt Spray Test Chamber with Humidity Control 1.0~2.0ml Spray Volume and 1.0~6.0 Kgf Compressed Air Pressure
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
5-15 work days
Brand:
YOUBI
Product Description
UP-6197 Advanced Cyclic Salt Spray Test Chamber with Humidity Control
Product Overview
The Advanced Cyclic Salt Spray Test Chamber with Humidity Control determines corrosion resistance of ferrous metals, inorganic coatings, and organic coatings. Suitable for automotive components (rearview mirrors, audio systems, electronics, lighting), electrical products, watches, hardware, outdoor lighting, communications equipment, locomotives, instrumentation, aerospace components, and waterproof seals.
Compliance Standards
CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: 8117, B268
Technical Specifications
| Parameter | UP-6197-60 | UP-6197-90 | UP-6197-120 |
|---|---|---|---|
| Internal Dimension W×H×D (mm) | 600×400×450 | 900×500×600 | 1200×500×800 |
| External Dimension W×H×D (mm) | 1100×600×1200 | 1400×1200×900 | 2100×1400×1300 |
| Lab Temperature | Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C | ||
| Pressure Bucket Temperature | Saline test (NSS ACSS) 47±1°C; Corrosion Test (CASS) 63±1°C | ||
| Lab Capacity (L) | 270 | 480 | 640 |
| Saline Capacity (L) | 25 | 40 | 40 |
| Saline Concentration | 5% NaCl concentration, or 0.26g CuCl₂·2H₂O per liter of 5% NaCl | ||
| Compressed Air Pressure | 1.0~6.0 kgf | ||
| Spray Volume | 1.0~2.0 ml/80cm²/h (16-hour minimum operation, average value) | ||
Key Features
- Constructed with tank, pneumatic system, heating unit, and control system
- Tank made from imported anti-corrosive, high-temperature resistant, aging-resistant PVC plate with high-temperature welded joints for easy cleaning and leak prevention
- Transparent fiberglass upper cover for sample observation and spray monitoring
- Water-sealed tank-cover junction prevents salt fog overflow during operation
- Multiple rack layers accommodate samples in various orientations
- Tower-type spray system ensures uniform fog distribution and prevents salt crystal formation
- Independent heating system for optimal thermal performance
- RKC temperature controller with PID function for high accuracy and long service life
- Wire control panel and components located on tank right side with lockable access door for maintenance

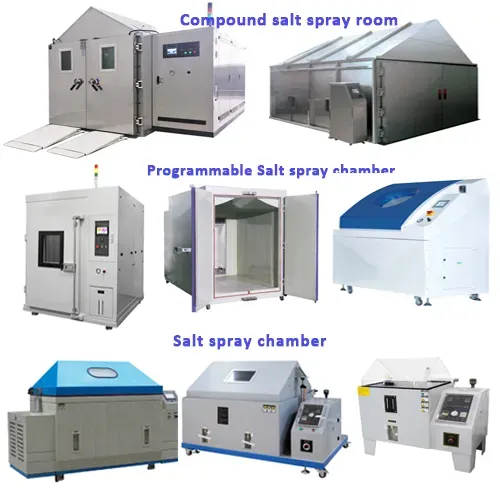

Product Images
Our Service Process
- Customer Inquiry: Technical requirement discussion, product recommendation, and quotation
- Customization: Technical drawings, reference photos, and final solution confirmation
- Production & Delivery: Manufacturing according to PO requirements, production progress photos, factory calibration, and shipping coordination
- Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather Shoe Testing Equipment, and Plastic Rubber Testing Equipment. All machines include a 12-month warranty after shipment, with free maintenance for 12 months (extendable to 14 months considering sea transportation). For technical issues, contact us via email or phone - we provide solutions within 24-48 hours through remote diagnostics including video chat if necessary.
What is the delivery timeframe?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Urgent requirements receive priority scheduling.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to specific requirements. We provide OEM and ODM services including custom branding with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when required.
