SIINO JIGUO TC-760Q Automatic Servo Windows Patching Machine With Corner Cutting& Creasing Function,Max. sheet size (mm):760*850,Film Sheet Thickness (mm):0.03-0.3
This high-performance automatic window patching machine delivers exceptional productivity with a maximum working speed of ≤ 30000s/h (depending on product size). Designed for industrial packaging operations, it handles corrugated paper thickness up to 5mm with precision and reliability.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
The Automatic Box Window Patching Machine is a versatile solution for enhancing packaging operations. Designed for continuous industrial use, this 2800kg machine delivers professional window patching with precision and efficiency.
Adjustable working speed up to 30,000 sheets/hour, adaptable to various product sizes
Handles cardboard from 120gsm to 1500gsm and corrugated board up to 5mm thick
Industrial-grade 380V, 50Hz, 3-phase power supply for reliable operation
- High-performance servo control system for precision operation
- Hob double shearing method for accurate film cutting
- Adjustable paper collection platform with micro motor control
- Complete electrical system with full servo control
- On-the-fly film position adjustment without stopping production

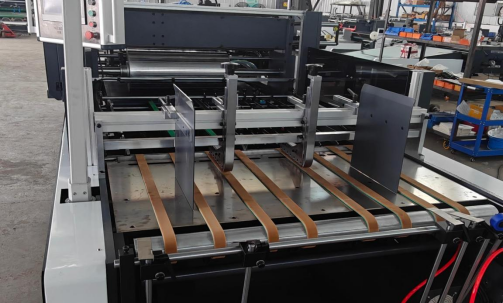

Servo Paper Feeder: High-performance servo control with imported wear-resistant belt material ensures stable paper output at high speeds.

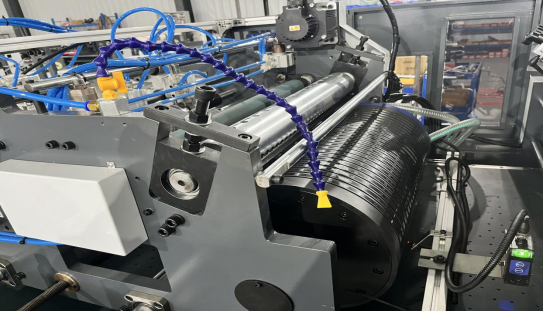

Film Cutting System: Scissor-style film cutting synchronized with servo control for precise film attachment, with adjustable positioning during operation.

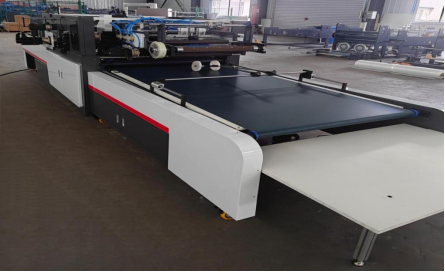

Paper Collection Platform: Micro motor-controlled platform with adjustable angle, speed regulation, and counting capabilities.

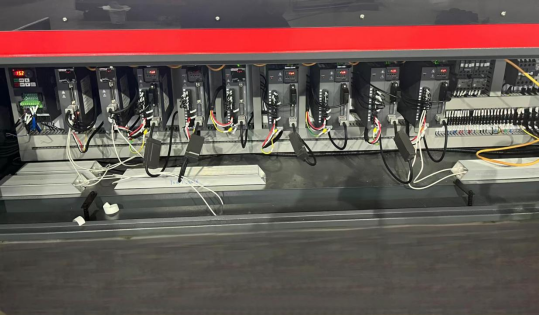

Electrical System: Full servo control across all machine components ensures high stability and precision at maximum operating speeds.
- Brand: SINO-JIGUO
- Model: TC-760Q
- Certification: CE compliant
- Minimum Order: 1 Set
- Price Range: $30,000 - $50,000
- Delivery Time: 20 days
- Payment Terms: T/T
- Packaging: Stretch Film Standard
- On-site installation and operator training
- Technical troubleshooting assistance
- Preventive maintenance programs
- 24/7 technical support access
- Software and hardware upgrades
- Secure stretch film packaging
- Standard shipping: 3-5 business days
- Expedited shipping: 1-2 business days
- Shipping costs calculated at checkout
The brand name is SINO-JIGUO.
The model number is TC-760Q.
It is manufactured in China.
It has CE certification.
The payment terms are T/T.
