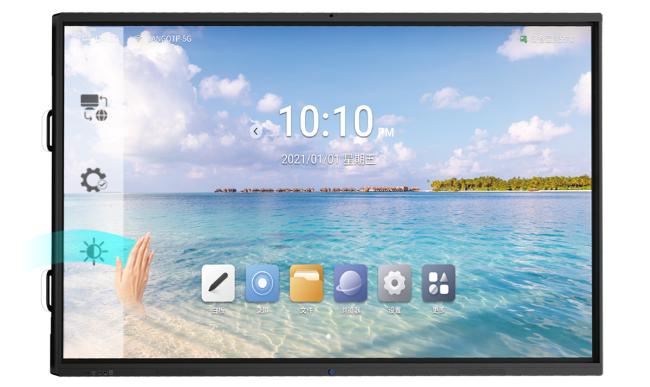

98 Inch Interactive Smart Boards For Teaching School 3840x2160
98 Inch Smart Board Interactive Smart Boards For Teaching School
The 98-inch smart interactive flat panel features a 4K UHD ultra-clear display, utilizing 20-point infrared touch technology (supporting up to 40 points under Windows system). The surface is made of 4mm anti-glare tempered glass. It supports dual-system capability: optional Android configurations (ranging from 4+32GB to 16+256GB) or a Windows OPS module (with Intel i5 to i7 processors). It offers comprehensive connectivity, including 4 HDMI ports, USB 3.0, Type-C, and dual-band Wi-Fi. Equipped with built-in 2×15W speakers, it supports VESA 900×600mm wall mounting. The whole unit has a power consumption of ≤570W, with dimensions of approximately 2217×1319×106mm.
Display and Visual Specifications
| Feature | 55"/65" | 75" | 86"/98"/110" |
|---|---|---|---|
| Screen Size | 55 inch / 65 inch | 75 inch | 86 inch / 98 inch / 110 inch |
| Resolution | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) | 3840 x 2160 (4K UHD) |
| Panel Type | a-Si TFT-LCD (Brands: AUO/BOE/CSOT/Innolux) | a-Si TFT-LCD (Brands: AUO/BOE/CSOT/Innolux) | a-Si TFT-LCD (Brands: AUO/BOE/CSOT/Innolux) |
| Brightness (Typ.) | 350 cd/m² | 400 cd/m² | 450 cd/m² (86"/98") / 500 cd/m² (110") |
| Contrast Ratio (Typ.) | 4500:1 | 4500:1 | 6000:1 |
| Viewing Angle | 178° (H) / 178° (V) | 178° (H) / 178° (V) | 178° (H) / 178° (V) |
| Surface Treatment | 4mm Anti-glare Tempered Glass, 7H Hardness | 4mm Anti-glare Tempered Glass, 7H Hardness | 4mm Anti-glare Tempered Glass, 7H Hardness |
Touch and Interaction Parameters
- Touch Technology: High-precision infrared touch.
- Touch Points: Supports 20-point multi-touch as standard, extendable to up to 40 points under the Windows operating system, enabling simultaneous writing and operation by multiple users.
- Writing Experience: Zero-gap bonding process effectively reduces parallax, delivering smooth and natural writing.
- Bezel Material: Ultra-thin metal front frame (22.3mm–25.3mm thick) with fine sandblasted finish and anodized surface, offering robustness, durability, and excellent heat dissipation.
Windows OPS Plug-in Computer Module (Optional)
- Plug-and-Play Design: Enables flexible switching to a full Windows PC environment.
- Supported Models: Configurations available from Intel 4th‑gen Core i5/i7 up to 12th‑gen Core i5/i7 processors (e.g., i5‑12450H/16G/256G).
- Full Compatibility: Perfectly compatible with Microsoft Office, professional teaching software, and a wide range of desktop applications.
About This Product
Q: Are software or firmware updates provided?
A: Yes. We regularly release firmware updates for system optimization and feature enhancements. Users can update via over-the-air (OTA) or local methods to enjoy improved performance and security.
Q: Can you offer customization services (e.g., pre-installed software, brand logo)?
A: Yes. We support a certain degree of hardware and software customization, including OEM/ODM services. Please discuss your specific requirements in detail with our sales team.
