Professional LCD Video Wall Solution | 3.5mm Ultra-Narrow Bezel for Seamless 2x2, 3x3 Multi-Screen Display

Transform any space into a high-impact visual command center with our 3.5mm ultra-narrow bezel LCD video wall series. Available in 46″, 49″, 55″, and 65″ sizes, these displays are engineered for flawless multi-screen integration, delivering crisp, uninterrupted imagery ideal for control rooms, conference halls, retail video walls, and public information displays.

• Available Sizes: 46″, 49″, 55″, 65″
• Panel Technology: IPS A-si TFT LCD
• Resolution:
  • 46″/49″/55″: 1920×1080 (FHD)
  • 65″: 3840×2160 (4K UHD)
• Brightness: 450 cd/m² (46″/49″/55″), 500 cd/m² (65″)
• Color Depth: 8-bit (16.7M colors) for FHD models; 10-bit (1.07B colors) for 65″ 4K model
• Response Time: 8ms (G to G)
• Refresh Rate: 60Hz
• Input Interfaces: HDMI, RJ45 (network video), VGA (65″ also includes DVI)
• Control Ports: RS232 IN ×1, RS232 OUT ×2, USB ×1
• Power Supply: AC 100–240V, 50/60Hz
• Operating Temperature: -10°C to 50°C
• Expected Lifespan: 50,000 hours

• Control room & surveillance monitoring walls
• Corporate lobby & conference room displays
• Retail digital signage & promotional video walls
• Exhibition halls & museums
• Transportation hubs & command centers
• Educational & broadcast studios

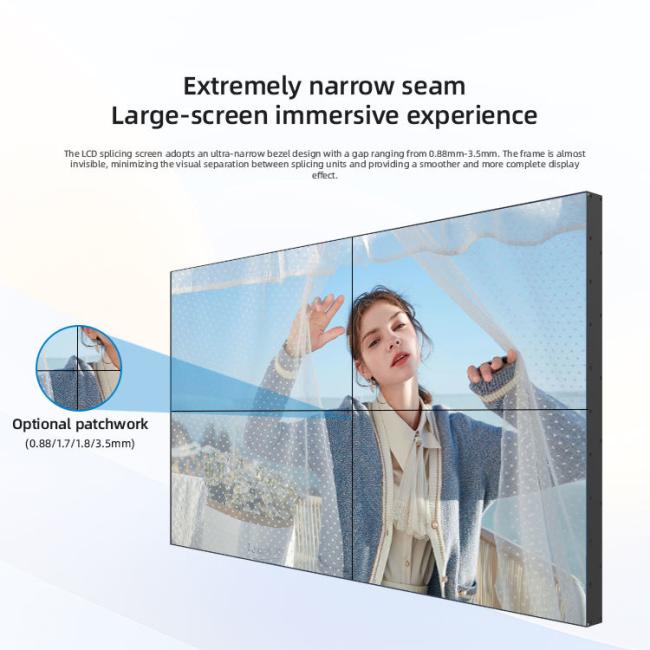

• Consistent narrow bezel across all sizes for uniform tiling
• Professional-grade inputs for flexible system integration
• High reliability with 50,000-hour lifespan
• Easy to install, configure, and maintain
• Scalable from 2×2 to large-scale video wall layouts
