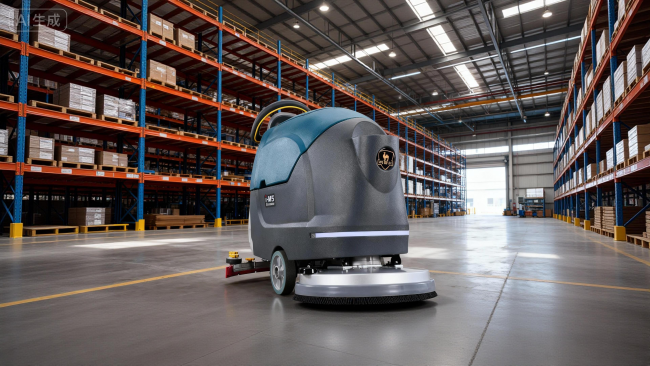

Marshell i‑M5 Walk‑behind Floor Scrubber – 60/65L Tank, 6hr Runtime, Commercial Floor Cleaner
Meet the Marshell i‑M5, a high‑capacity, long‑runtime walk‑behind floor scrubber built for heavy commercial and industrial cleaning. With a 510mm cleaning width, 2000m²/h productivity, and 60L clean / 65L dirty water tanks, it handles large areas with fewer refills. Powered by a 24V 100Ah battery, it delivers 3–4 hours in normal mode or 4–6 hours in ECO mode, supported by a 430W brushless suction motor with 12/21Kpa adjustable vacuum.
Designed for ease of use, it features one‑touch start/stop, ECO mode, and brush release, plus real‑time current display, fault code alerts, and runtime tracking. The built‑in IoT system (with permanent data) lets you monitor location, status, performance, and historical data remotely. Safety features include auto‑stop on release, manual parking brake (10% slope), IP67 waterproof COB light strip, dual water‑full protection, and integrated electronic controls with overload/short‑circuit protection. CE, CNAS, and CMA certified for reliable, compliant operation.
| Model | i-M5 | Unit |
|---|---|---|
| Dimension(l*h*w) | 1340*570*1040 | mm |
| Packaging dimension(l*h*w) | 1450*650*1160 | mm |
| Cleaning Width | 510 | mm |
| Cleaning efficiency | 2000 | m2/H |
| Weight (with battery) | 160 | kg |
| Power | 1000 | W |
| Drive axle power | / | W |
| Brush motor power | 580 | W |
| Suction motor power | / | W |
| Working voltage | 24 | V |
| Running speed | / | Km/h |
| Backward speed | / | Km/h |
| Clean water tank capacity | 60 | L |
| Sewage tank capacity | 65 | L |
| Suction scraper width | 830 | mm |
| Sound | 68 | dB |
| Brush pressure | 25 | kg |
| Working time | H | |
| Climbing ability (no load) | / | % |
| Minimum turning radius | 700 | mm |
| Lead-acid battery(standard) | 24V100AH | - |
| Charging time | 4-6 | H |
| Lithium battery(option al) | 25.6V 100AH | - |
- Fully charge the battery before initial use.
- Do not operate on uneven, steep (>10% slope), or slippery floors.
- Avoid contact with open flames, corrosive chemicals, or harsh solvents.
- Use the parking brake when stationary; do not leave unattended on slopes.
- Regularly clean filters, squeegee, and tanks to maintain performance.
- Disconnect power and remove the key when not in use.
- Specifications subject to upgrade; confirm details with sales representatives.
- Long Runtime & Large Tanks: 60L clean / 65L dirty tanks; 3–4hr normal / 4–6hr ECO runtime (24V 100Ah).
- High Cleaning Efficiency: 510mm width, 2000m²/h output, 830mm wide squeegee.
- One‑Touch Operation: One‑click start/stop, ECO energy save, and brush release for easy use.
- Smart IoT Monitoring: Real‑time tracking of position, status, and performance; permanent data included.
- Powerful Brushless Suction: 430W motor, 12/21Kpa adjustable vacuum, low energy, strong pickup.
- Enhanced Safety & Durability: Auto‑stop on release, 10% slope parking brake, IP67 lighting, dual water protection, waterproof charging base.
- Reliable & Certified: CE, CNAS, CMA certified; overload/short‑circuit protection, durable custom brush motor.
- Supermarkets, shopping malls & retail stores
- Schools, universities & educational facilities
- Hospitals, clinics & healthcare centers
- Hotels, resorts & hospitality venues
- Transportation hubs: train/bus stations & airports
- Warehouses, factories & industrial workshops
- Large office buildings & commercial spaces
