Constructed with a tin-plated copper conductor, FEP insulation and outer jacket, and braided copper shielding, the KT xxxx Y SBK 1–3 TPC shield and jacket cable provides excellent electrical conductivity, chemical resistance, and durability. The integrated polyimide layer acts as a thermal and mechanical barrier, protecting the insulation from deformation and improving overall cable reliability. With an operating temperature range of -55°C to +150°C, the cable maintains stable performance in extreme conditions. Rated at 250V AC, it is optimized for precision signal and control applications, where reliability and noise resistance are more critical than high power capacity.
* Model:KT xxxx Y SBK 1–3 TPC
* Insulation:FEP
* Conductor:Electrolytic tin plated annealed copper
* Protection:Polyimide separating tape
* Rated voltage: 250 volts AC
* Rated operating temperature: -55℃ to +150℃
* Multiple core: single core(SBK1), twisted pair(SBK2), twisted triples(SBK3) for you to choose or more cores for custom
* Colors: Black,brown,red,orange,yellow,green,blue,purple,gray,white, transparent,two-color stripes or other colors specified by the customer
Polyimide Reinforced Structure – Additional PI tape enhances thermal stability and mechanical protection
High Temperature Performance – Reliable operation from -55°C to +150°C in demanding environments
Optimized for Signal Transmission – 250V rating suitable for precision control and low-power systems
Braided Copper Shielding – Ensures stable EMI protection with strong mechanical durability
FEP Insulation & Jacket – Provides resistance to heat, chemicals, and aging
Enhanced Structural Reliability – Prevents insulation deformation and improves long-term stability
Multi-Core Configurations – Available in single core, twisted pair, and triple core designs
Compact Cable Design – Smaller diameter for space-constrained installations
Specification
| BING' REFERENCE |
PRIMARY WIRE | SHIELDING | JACKET | ||||||||
| REFERENCE | NOMINAL Ø (mm) |
NOMINAL Ø (inch) |
STRAND Ø (mm) |
STRAND Ø (inch) |
NOMINAL BRAIDED SHIELD Ø (mm) |
NOMINAL BRAIDED SHIELD Ø (inch) |
NOMINAL OUTER Ø (mm) |
NOMINAL OUTER Ø(inch) |
APPROX. WEIGHT (g/m) |
APPROX. WEIGHT (Ibs/100ft) |
|
| KT 2807 Y SBK1 | KT 2807 TPC | 0.70 | 0.028 | 0.102 | 0.0040 | 1.15 | 0.045 | 1.40 | 0.055 | 5.20 | 0.35 |
| KT 2619 Y SBK1 | KT 2619 TPC | 0.80 | 0.031 | 0.102 | 0.0040 | 1.25 | 0.049 | 1.50 | 0.059 | 7.35 | 0.49 |
| KT 2419 Y SBK1 | KT 2419 TPC | 0.95 | 0.037 | 0.102 | 0.0040 | 1.40 | 0.055 | 1.70 | 0.067 | 8.80 | 0.59 |
| KT 2237 Y SBK1 | KT 2237 TPC | 1.10 | 0.043 | 0.102 | 0.0040 | 1.55 | 0.061 | 1.90 | 0.075 | 10.80 | 0.73 |
| KT 2037 Y SBK1 | KT 2037 TPC | 1.30 | 0.051 | 0.102 | 0.0040 | 1.75 | 0.069 | 2.15 | 0.085 | 14.90 | 1.00 |
| KT 2807 Y SBK2 | KT 2807 TPC | 0.70 | 0.028 | 0.102 | 0.0040 | 1.90 | 0.075 | 2.20 | 0.087 | 9.80 | 0.66 |
| KT 2619 Y SBK2 | KT 2619 TPC | 0.80 | 0.031 | 0.127 | 0.0050 | 2.20 | 0.087 | 2.50 | 0.098 | 13.65 | 0.92 |
| KT 2419 Y SBK2 | KT 2419 TPC | 0.95 | 0.037 | 0.127 | 0.0050 | 2.50 | 0.098 | 2.80 | 0.110 | 18.30 | 1.23 |
| KT 2237 Y SBK2 | KT 2237 TPC | 1.10 | 0.043 | 0.127 | 0.0050 | 2.80 | 0.110 | 3.10 | 0.122 | 22.10 | 1.48 |
| KT 2037 Y SBK2 | KT 2037 TPC | 1.30 | 0.051 | 0.127 | 0.0050 | 3.20 | 0.126 | 3.55 | 0.140 | 31.65 | 2.13 |
| KT 2807 Y SBK3 | KT 2807 TPC | 0.70 | 0.028 | 0.102 | 0.0040 | 2.00 | 0.079 | 2.30 | 0.091 | 12.60 | 0.85 |
| KT 2619 Y SBK3 | KT 2619 TPC | 0.80 | 0.031 | 0.127 | 0.0050 | 2.30 | 0.091 | 2.60 | 0.102 | 19.15 | 1.29 |
| KT 2419 Y SBK3 | KT 2419 TPC | 0.95 | 0.037 | 0.127 | 0.0050 | 2.65 | 0.104 | 3.00 | 0.118 | 22.55 | 1.52 |
| KT 2237 Y SBK3 | KT 2237 TPC | 1.10 | 0.043 | 0.127 | 0.0050 | 2.95 | 0.116 | 3.30 | 0.130 | 29.55 | 1.99 |
| KT 2037 Y SBK3 | KT 2037 TPC | 1.30 | 0.051 | 0.127 | 0.0050 | 3.40 | 0.134 | 3.80 | 0.150 | 40.45 | 2.72 |

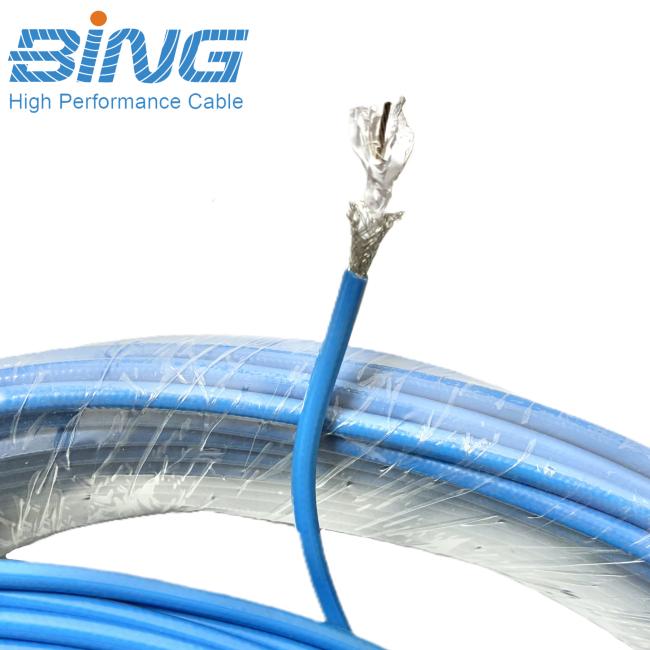

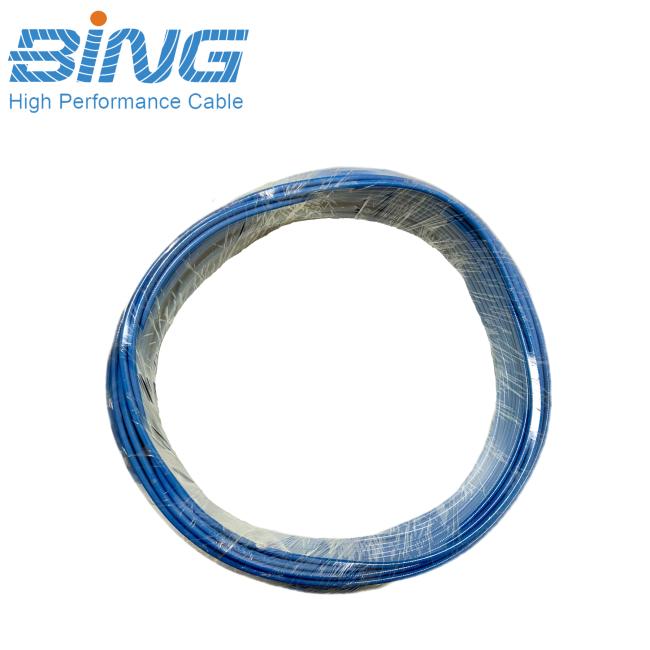

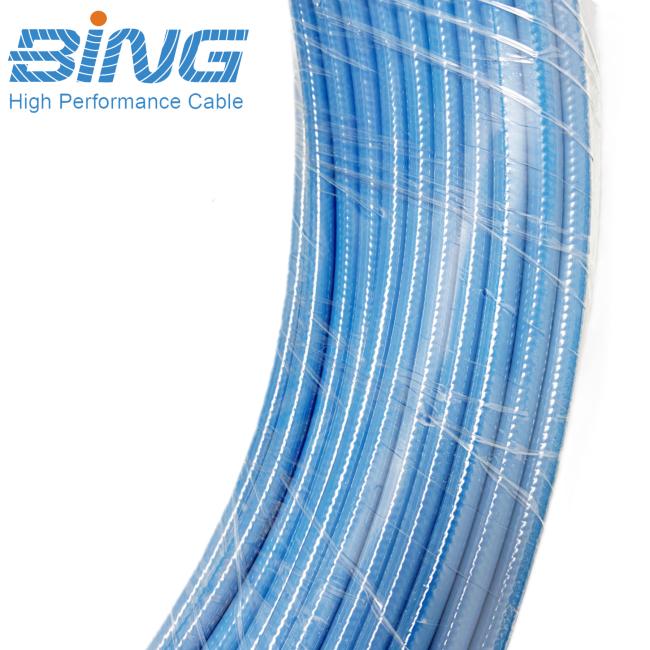

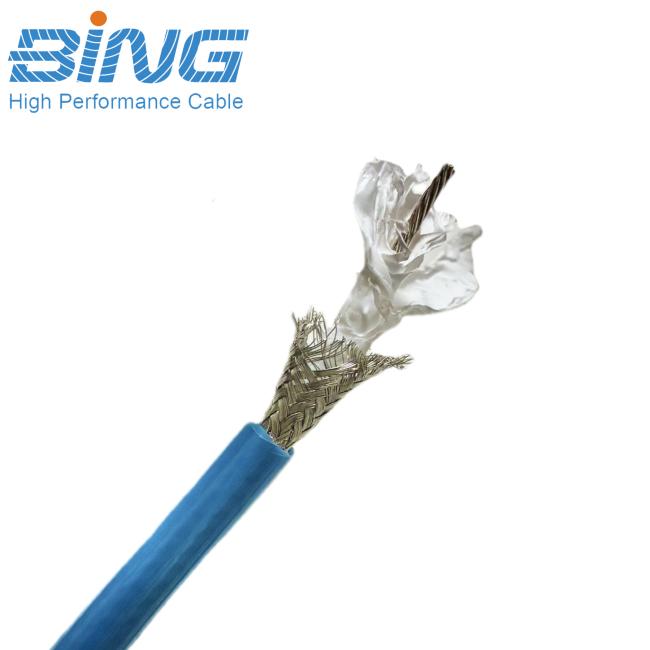

Picture Detail
|
