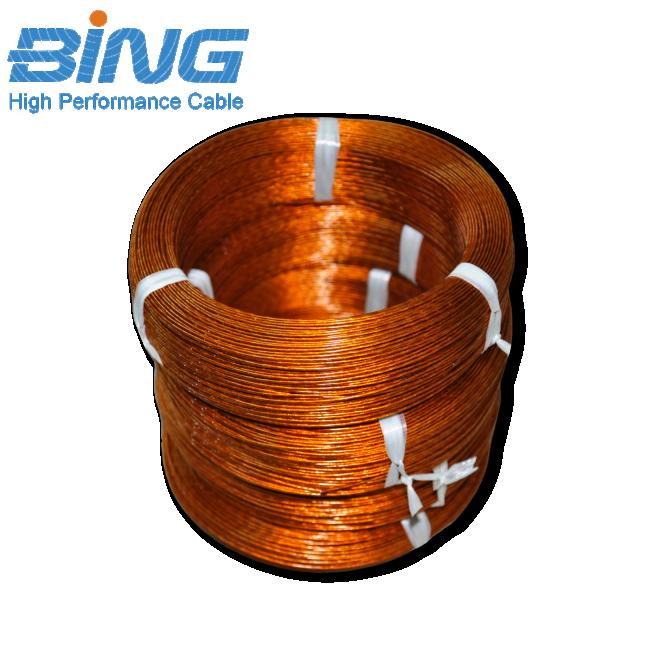

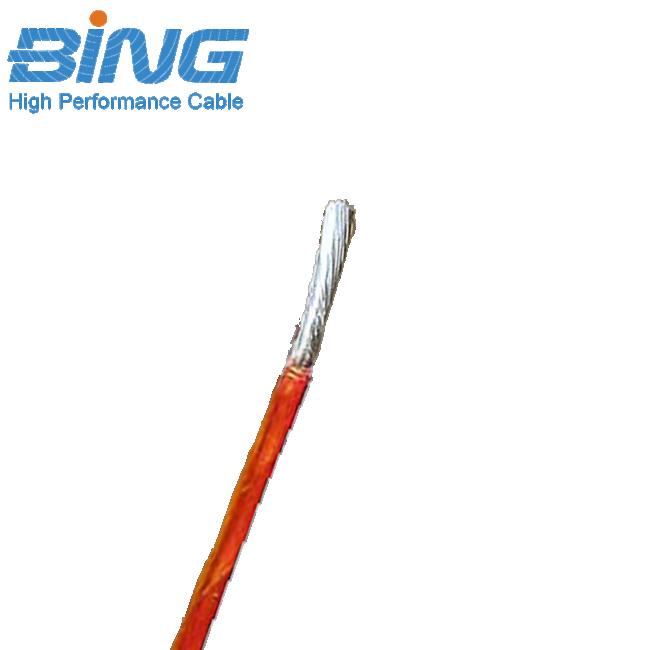

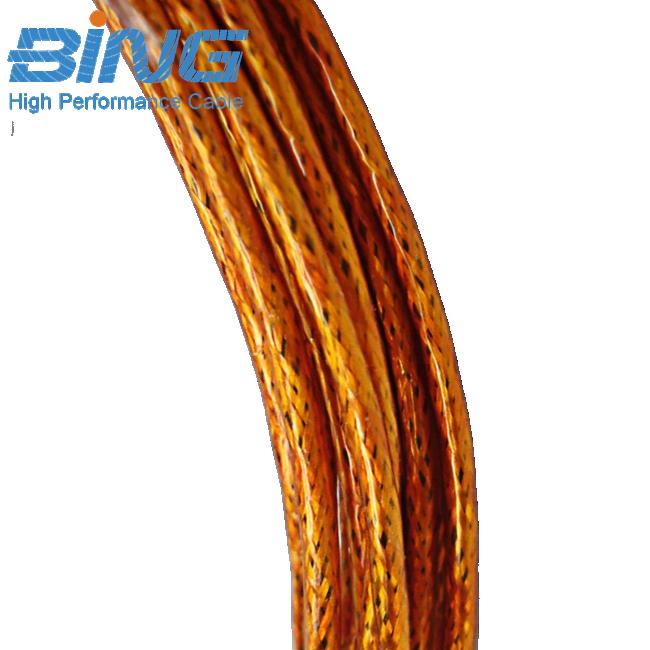

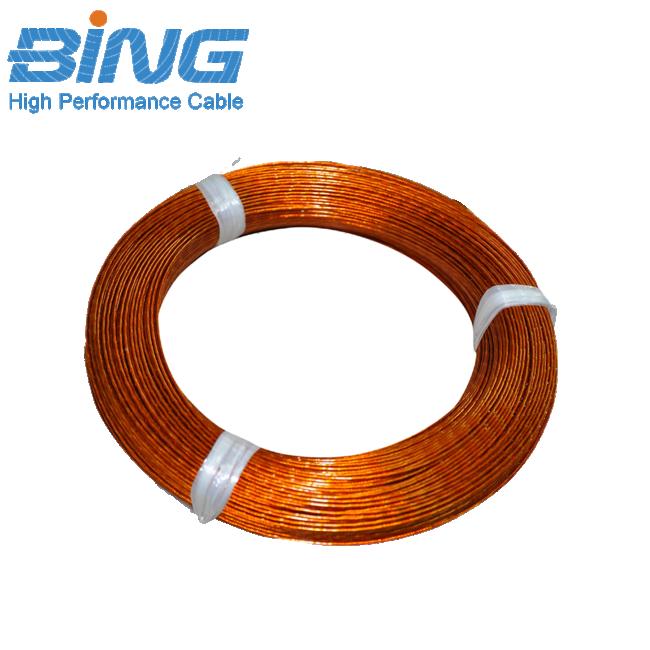

Lightweight HT-SPC Polyimide Taped Wire 250V for Aerospace Communication Cable
HT-SPC polyimide taped wire is a premium Polyimide & PTFE wire engineered exclusively for aerospace applications where weight reduction is critical. As a professional Polyimide insulated aerospace cable, it features a thin 0.115mm polyimide/PTFE composite insulation and high-performance silver-plated copper conductor, delivering stable and reliable performance across an extreme temperature range of -90°C to +200°C. This Lightweight Heat Resistant Cable is the ideal wiring solution for aircraft, satellites, and other high-temperature, high-reliability environments.
- Conductor: Annealed silver-plated electrolytic copper or high-strength silver-plated copper alloy.
- Insulation: Fluororesin-coated PTFE or polyimide film tape wrapped and sintered.
- Sheath: PTFE tape wrapped and sintered sheath, available in different colors (wire surface can be laser marked).
- Insulation Detail: Fluororesin-coated PTFE or polyimide composite film insulation.
- Operating Temperature: -90~+200℃.
- Rated Voltage: AC 250V.
- Insulation Thickness: 0.115 mm.
- Standard Colors: Black, brown, red, orange, yellow, green, blue, purple, gray, white (custom colors available).
- Multi-core Cables: Twisted pair, three-core stranded, four-core stranded, etc. (with/without sheath, with/without shielding optional).
- High-Conductivity Silver-Plated Copper: Available in both annealed electrolytic copper and high-strength copper alloy variants
- Superior Corrosion Resistance: Silver plating ensures excellent oxidation resistance and maintains conductivity at high temperatures
- Flame Retardant: Low flame propagation properties meeting stringent aerospace requirements
- Arc Resistance: Superior resistance to electrical arcing
- Chemical Resistance: Excellent resistance to aviation fuels, hydraulic fluids, and lubricants
- Optimized for High-Frequency Applications: Enhanced skin effect performance for signal integrity
- Commercial Aircraft: Internal wiring for avionics, flight control systems, and cabin electronics,where Lightweight Heat Resistant Cable is essential.
- Missile Systems: Signal transmission and control systems ,supported by our reliable Polyimide insulated aerospace cable.
- Medical Devices: Specialized equipment requiring biocompatible materials,Specialized equipment requiring biocompatible materials, using the stable structure of Polyimide & PTFE wire.
- Instrumentation: Precision electronic equipment internal wiring,often implemented with our customized Multi-Core Cable.
Our HT-SPC Polyimide Taped wire is designed for the harshest environments and extreme conditions. This silver plated copper wire may be used in commercial or mili tary aircraft where wire applications must adhere to strict restrictions and specifications. As a professional Electrolytic silver-plated copper cable, our high-performance ployimide taped wire meets the strictest requirements for small dimensions, high-temperature resistance, low weight, and low flame propagation, making it the top choice for Aerospace communication cable and mission-critical aerospace wiring.
| PART NUMBER | AWG | CONSTRUCTION (mm) | CONDUCTOR/ NOMNAL (mm) | NOMNAL AREA (mm2) | OMNAL RESISTANCE (Ω / 100m) | INSULATED WIRE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| NOMNAL (mm) | APPROX. WEIGHT (g/m) | ||||||||||
| HT 3001 | 30 | 1/ 0.254 | 0.254 | 0.051 | 35 | 0.48 | 0.60 | ||||
| HT 3007 | 30 | 7/ 0.102 | 0.303 | 0.057 | 34 | 0.53 | 0.70 | ||||
| HT 2801 | 28 | 1/ 0.320 | 0.320 | 0.081 | 21 | 0.55 | 0.90 | ||||
| HT 2807 | 28 | 7/ 0.127 | 0.381 | 0.088 | 20 | 0.61 | 1.00 | ||||
| HT 2601 | 26 | 1/ 0.403 | 0.403 | 0.13 | 13 | 0.63 | 1.40 | ||||
| HT 2619 | 26 | 19/ 0.102 | 0.504 | 0.15 | 12 | 0.74 | 1.70 | ||||
| HT 2401 | 24 | 1/ 0.510 | 0.510 | 0.21 | 8.5 | 0.74 | 2.10 | ||||
| HT 2419 | 24 | 19/ 0.127 | 0.634 | 0.24 | 7.5 | 0.86 | 2.60 | ||||
| HT 2201 | 22 | 1/ 0.644 | 0.644 | 0.33 | 5.3 | 0.87 | 3.20 | ||||
| HT 2219 | 22 | 19/ 0.160 | 0.800 | 0.38 | 4.7 | 1.03 | 4.00 | ||||
| HT 2001 | 20 | 1/ 0.812 | 0.812 | 0.52 | 3.3 | 1.04 | 5.00 | ||||
| HT 2019 | 20 | 19/ 0.203 | 1.009 | 0.62 | 2.9 | 1.24 | 6.20 | ||||
| HT 1819 | 18 | 19/ 0.254 | 1.269 | 0.96 | 1.9 | 1.50 | 9.60 | ||||
| HT 1619 | 16 | 19/ 0.300 | 1.500 | 1.34 | 1.3 | 1.73 | 13.2 | ||||
