Durable Cast Iron Feed Pellet Machine High Efficiency Robust Animal Feed Machine
Price:
205-850USD
MOQ:
20 pieces
Delivery Time:
10-15 work days
Brand:
CHENGYI
Product Description
Durable Cast Iron Feed Pellet Machine High Efficiency Animal Feed Processor
This robust feed pellet machine, engineered from high-grade wear-resistant cast iron and alloy steel, represents modern agricultural engineering excellence. Designed to transform raw biomass and grain into high-density nutritional sticks, it ensures livestock receive a balanced diet with every bite. Suitable for both small-scale poultry farms and large industrial feedlots, this granulator provides the mechanical force needed to process corn, soy, wheat, and straw into uniform shapes.

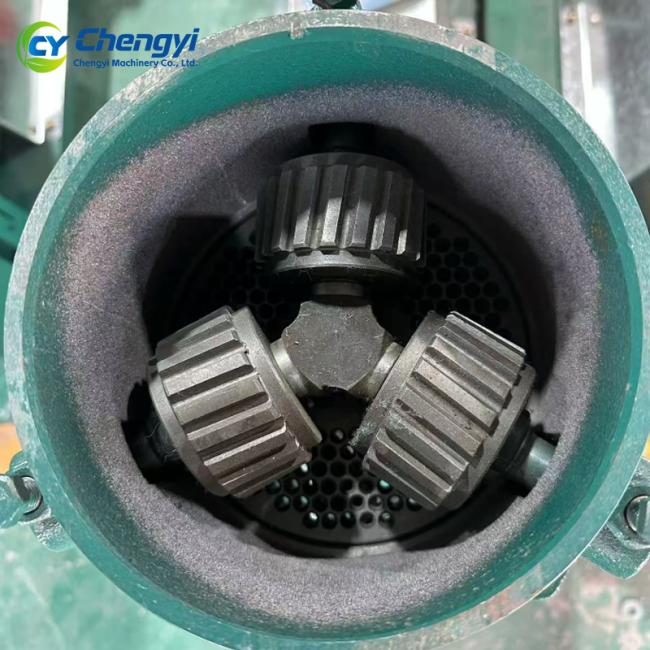

The internal mechanism utilizes a heavy-duty roller and die system. As raw material enters the hopper, intense pressure generates natural heat that partially gelatinizes starch, making the final product easier for animals to digest. This pellet press is ideal for aquatic farming and biomass energy production due to its ability to handle different moisture levels. The feed extruder functionality sanitizes pellets through high-temperature friction, reducing bacterial contamination risk. By integrating this equipment into your workflow, you optimize storage space and significantly reduce feed wastage.
Key Features & Benefits
- Enhanced Material Durability: Built with alloy steel for long service life and reliable performance
- Adjustable Pellet Size: Swap dies to create different diameters suitable for both chicks and cattle
- Energy-Efficient Motor: High-torque engine reduces electricity costs while maintaining high output
- Low Maintenance Design: Accessible lubrication points ensure minimal downtime and operational efficiency
- Nutrient Preservation: Rapid compression keeps vitamins intact within produced pellets
Technical Specifications
| Model | Hourly Output (6mm die) | Weight | Dimensions (mm) | Packaging |
|---|---|---|---|---|
| CYKL-125 | 30kg-75kg | 63kg | 800×320×710 | Wooden Box |
| CYKL-160 | 75kg-150kg | 115kg | 1050×380×700 | Wooden Box |
| CYKL-210 | 150kg-300kg | 190kg | 1280×470×880 | Wooden Box |
| CYKL-230 | 300kg-400kg | 230kg | 1360×500×920 | Wooden Box |
| CYKL-260 | 400kg-500kg | 350kg | 460×560×1020 | Wooden Box |
| CYKL-300 | 500kg-1000kg | 350kg | 1570×710×1170 | Wooden Box |
| CYKL-400 | 1000kg-2000kg | 865kg | 1830×830×1490 | Wooden Box |
Application Scenarios
- Poultry & Livestock Farms: Creating specialized diets for chickens, pigs, and sheep
- Aquaculture Operations: Producing floating or sinking feed for fish and shrimp ponds
- Biomass Energy Plants: Converting agricultural waste into heating fuel pellets
- Commercial Feed Mills: Scaling up production for local distribution and retail
Frequently Asked Questions
What is the primary material used in the construction of the Feed Pellet Machine?
Our feed pellet machine is manufactured using reinforced cast iron and heat-treated alloy steel for maximum structural integrity.
Can I adjust the length of the pellets produced by the Feed Pellet Machine?
Yes, the machine features an adjustable cutting blade that allows you to customize pellet length.
How does the Feed Pellet Machine handle different types of raw materials?
The machine is designed with a versatile pressure ratio to process everything from soft grains to tougher crop stalks.
Does the Feed Pellet Machine require a binding agent to form pellets?
In most cases, natural lignin and starch in the material allow the machine to form solid pellets without additives.
What is the expected hourly output of this specific Feed Pellet Machine model?
Depending on motor configuration, this machine can produce between 200kg and 1000kg of high-quality feed per hour.
