China Factory High Quality Process Cycloidal Gear Disc Wheel Part for X3, X4, B1, B2 for sale

Factory High Quality Process Cycloidal Gear Disc Wheel Part for X3, X4, B1, B2

Price Negotiable

Price: $18-20

MOQ: 1

Delivery Time: Negotiable

Brand: KINGEAR

Product Description

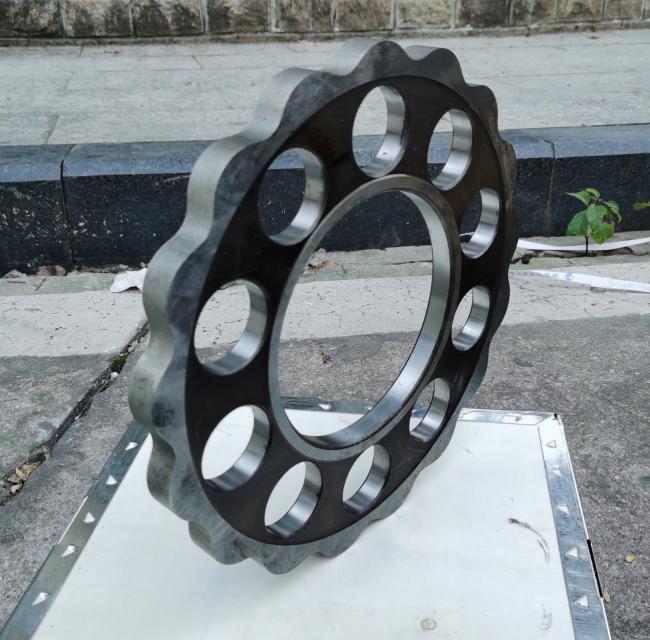

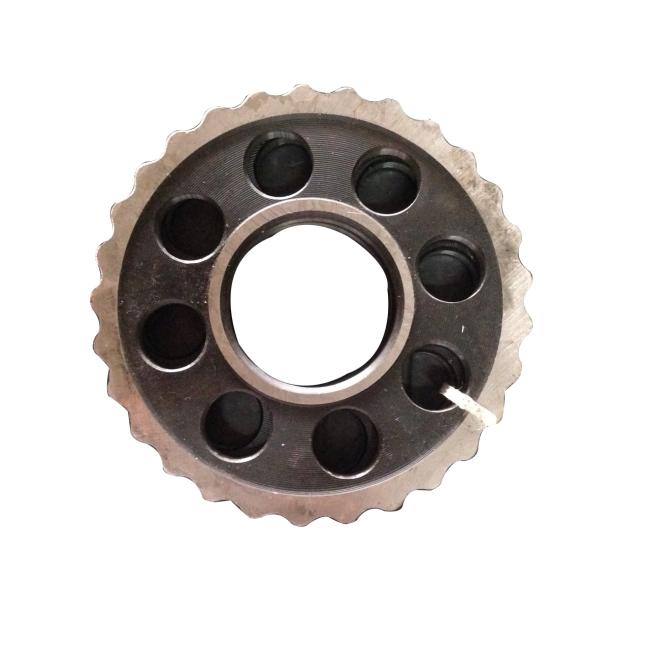

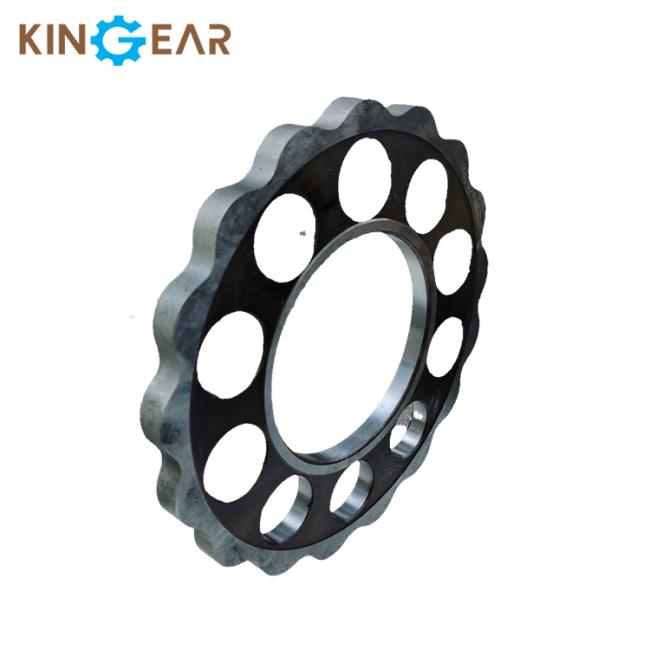

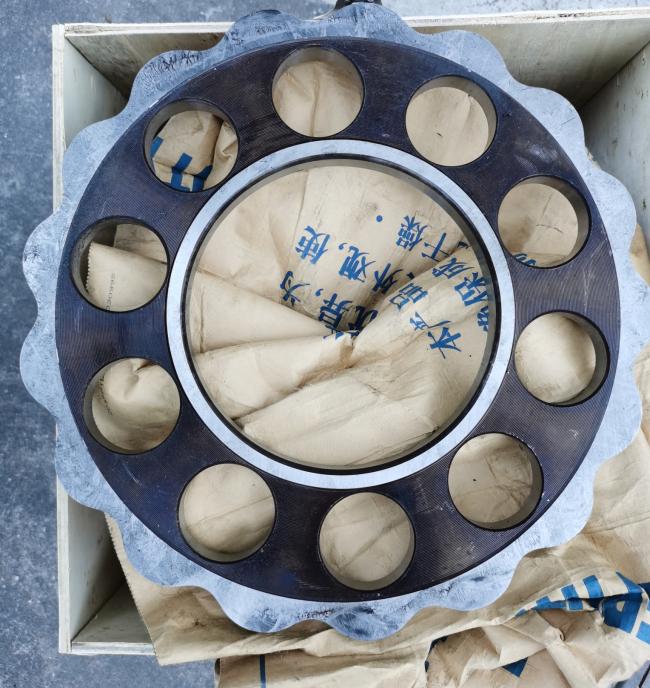

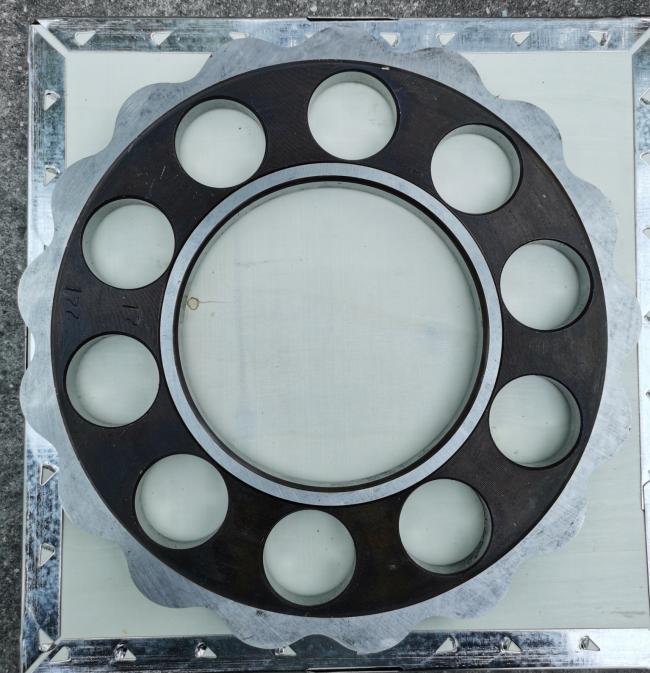

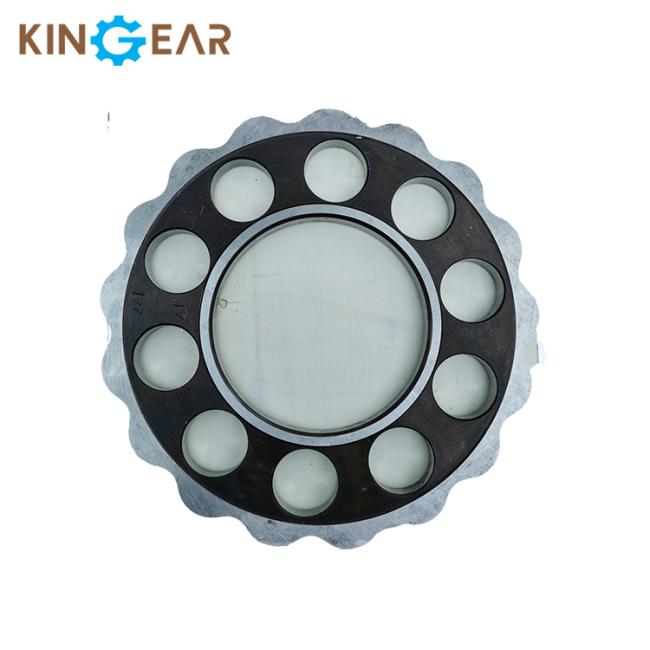

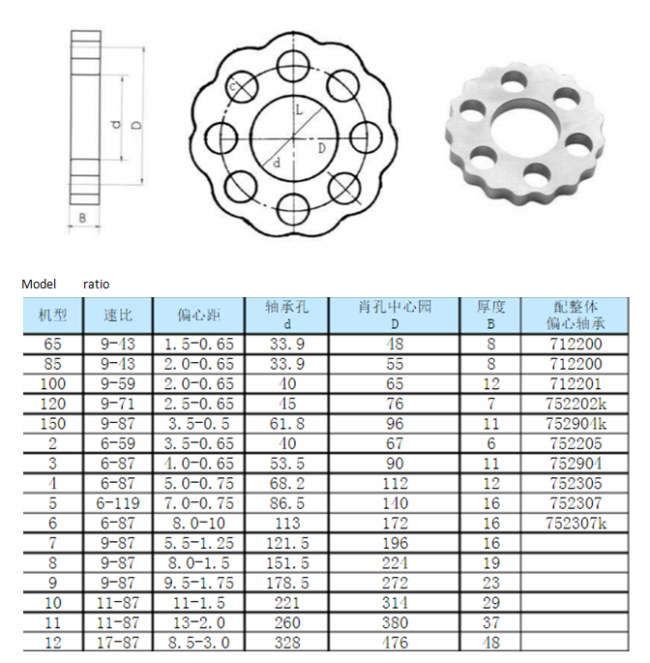

Cycloidal GEAR CAM/DISC, gear wheel, gear ring Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission gearbox, the main part gear wheel ring is cyclo gear type as below,

outer diameter

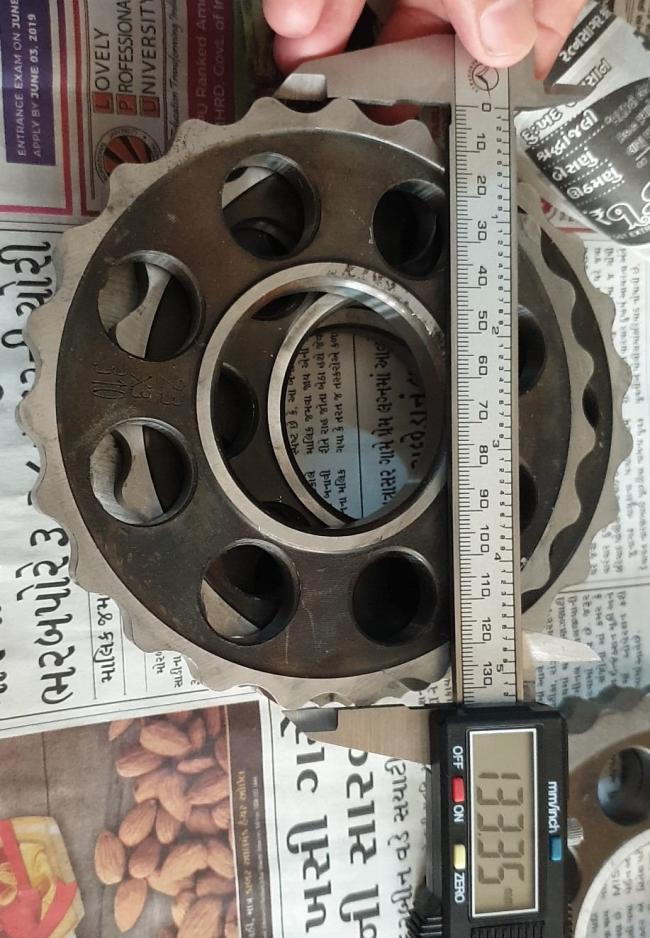

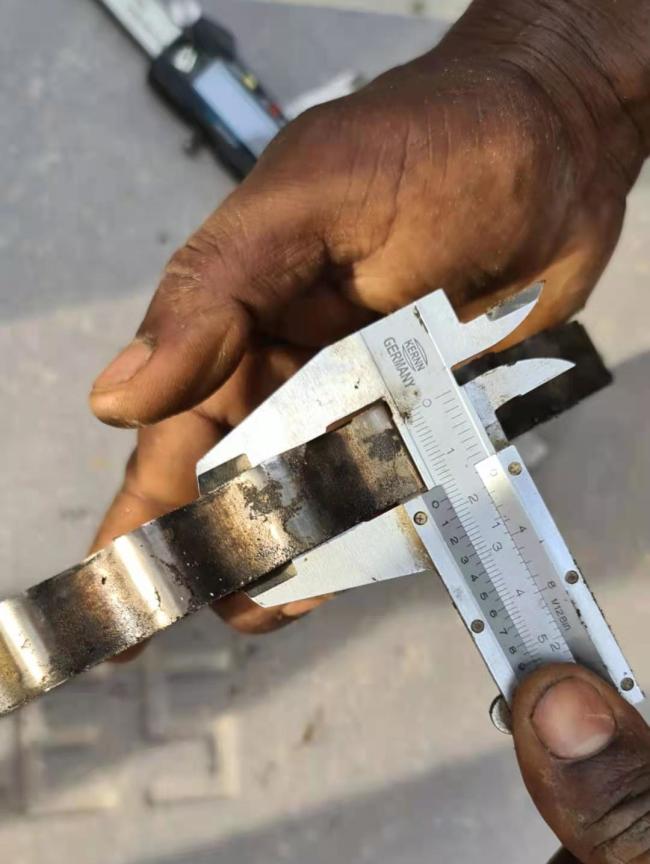

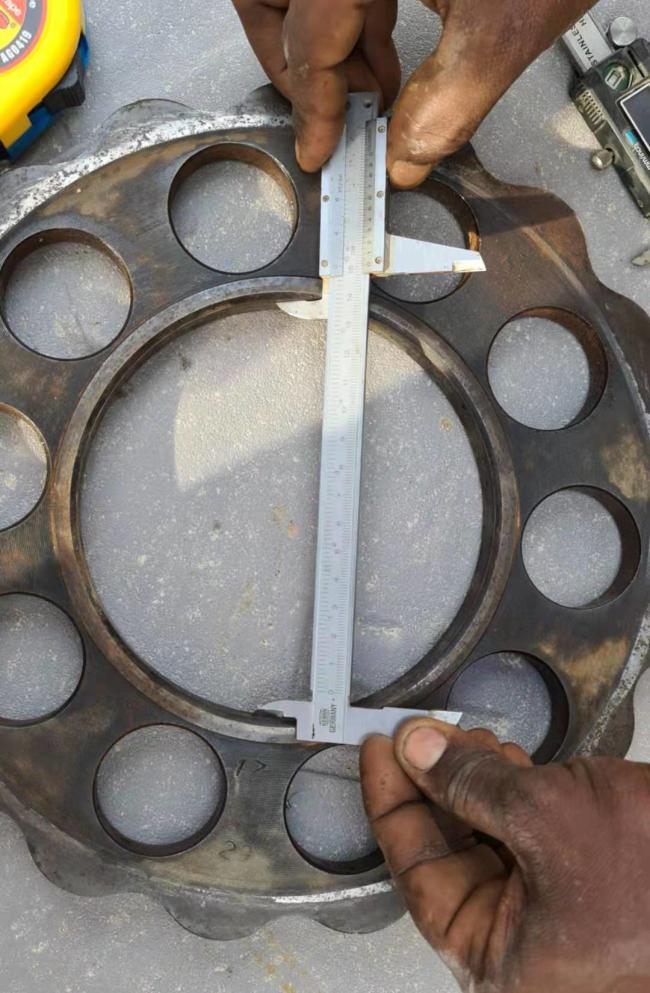

Please measure your old or damaged gear parts above dimensions, we will compare to offer the same.

inner diameter

take photo of your old gearbox name plate, we will know its model and specifications.

thickness.

the gears are usually sold by a pair (2pcs), one pc can not be used for repair and maintainment

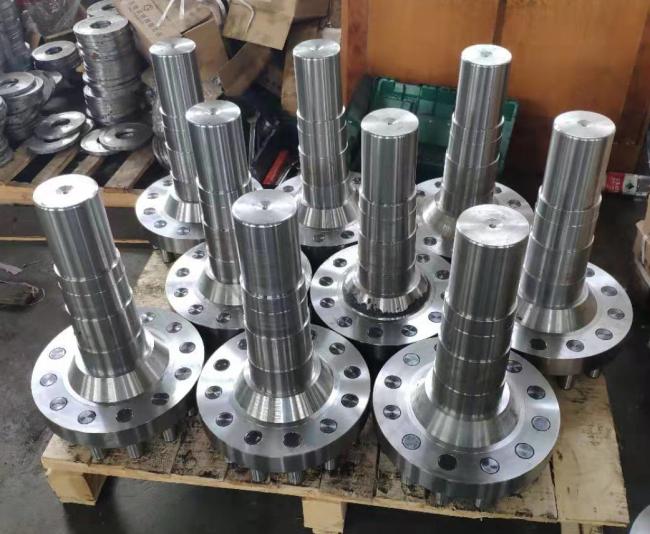

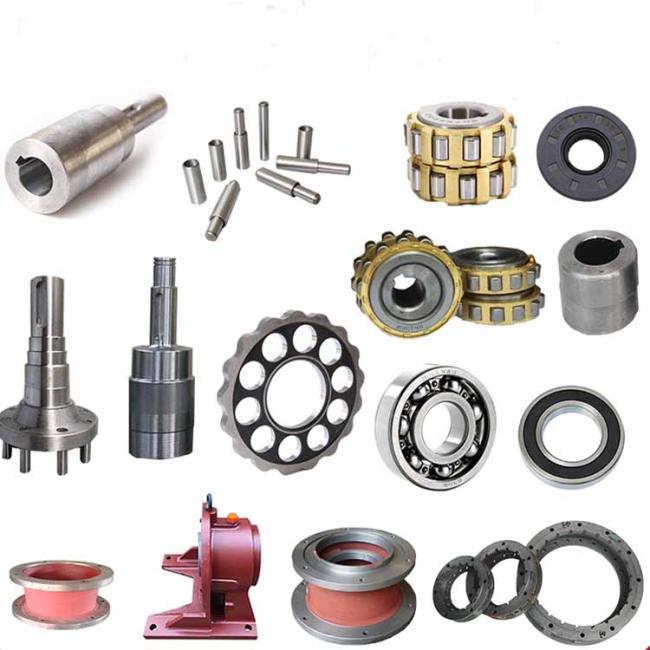

For other parts for cycloidal gearbox repair and maintainment, pls contact us with photo , dimensions, model of gearbox and specifications. we will offer the same Pin and shaft sets, Bearing, gearbox housing , flange and so on.

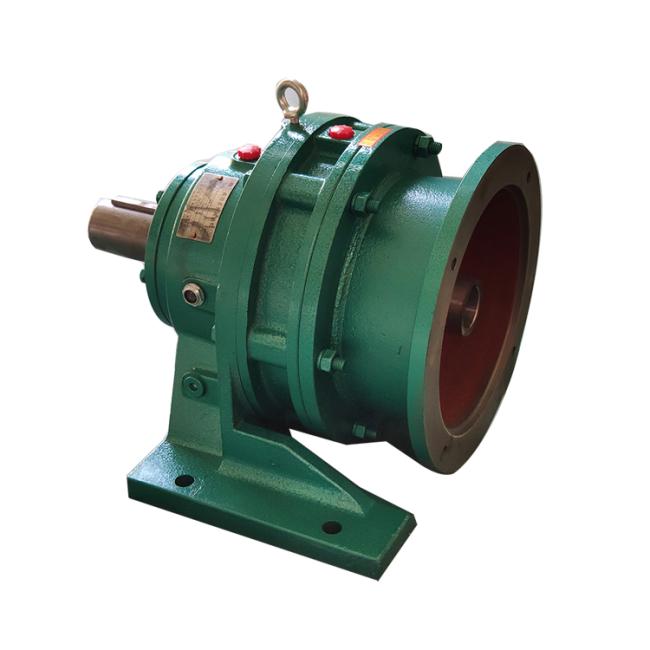

We definitely supply the complete set cycloidal gearbox and motor.

Houshing:	Casting Iron

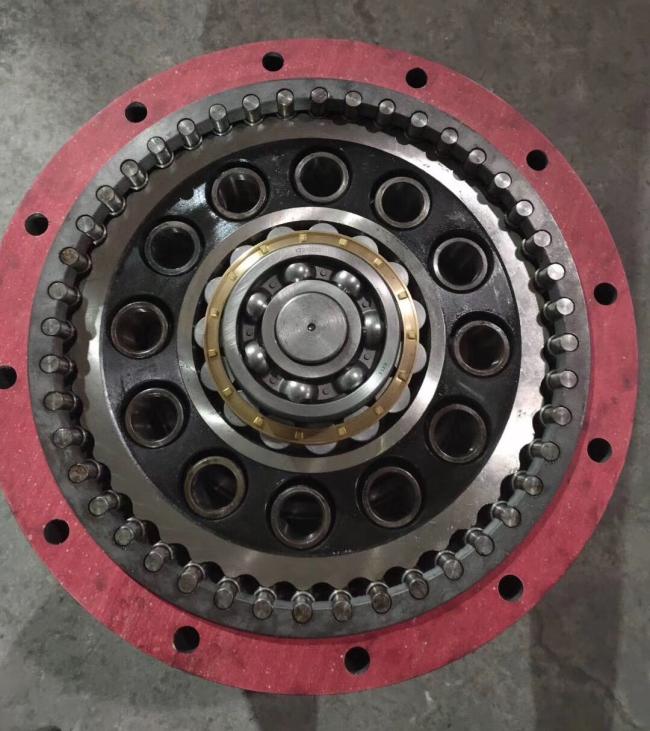

Gearset:	Cycloid wheel & Pin wheel
Input Configurations:	Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)	IEC-normalized Motor Flange, Keyed Solid Shaft Input
Output Configurations:	Keyed Solid Shaft Output

Feature One

Economic but High efficiency, the average efficiency is over 90%

Feature Two

Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage
combinations.

1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87

2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849

Feature Three

Low speed, low frequency: mainly used for heavy load, low speed and no frequent work place

1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
