KINGEAR ODM Customized K Type and R Type Helical Combined Gearbox Speed Box Low Speed Reduced From Speed Box
Price:
$1,800-2,000
MOQ:
1
Delivery Time:
Negotiable
Brand:
KINGEAR
Product Description
Product Description

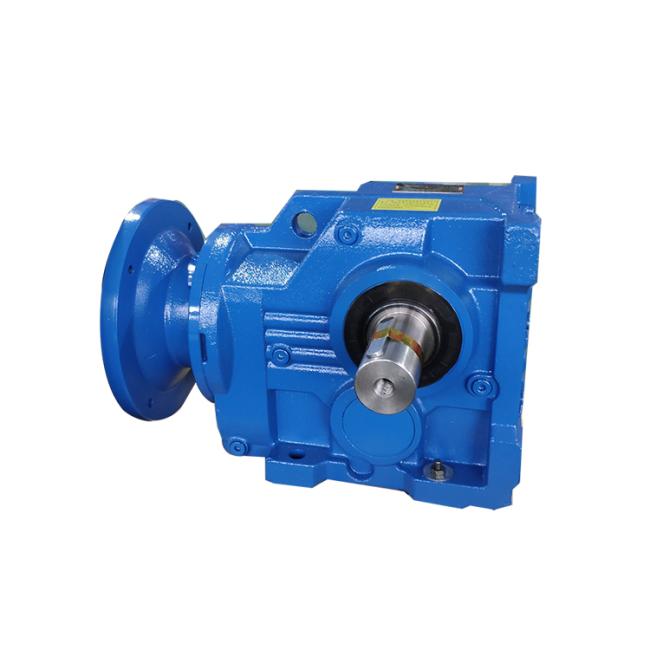

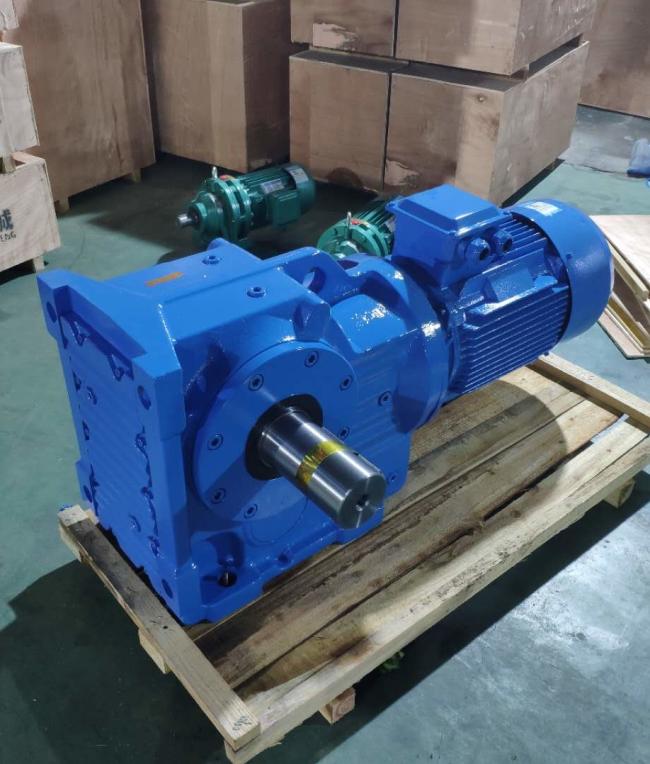

Helical bevel right angle shaft gear box

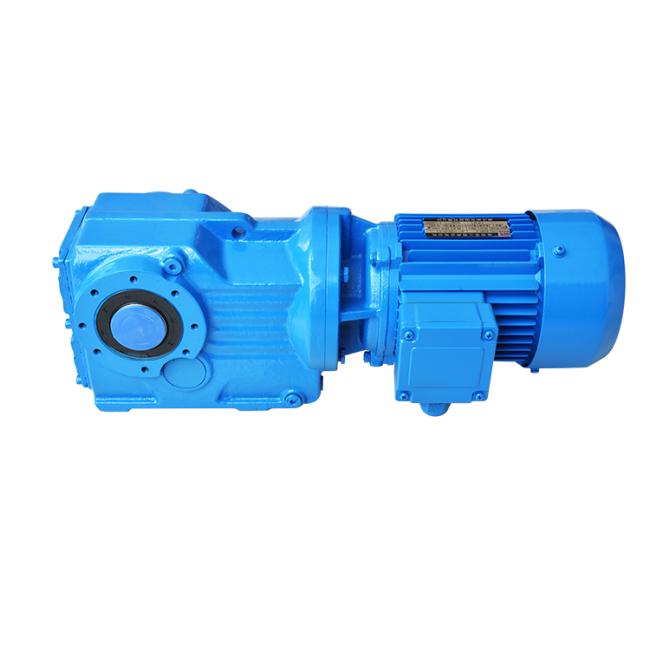

K Series bevel helical geared motors which offer ratios from 6:1 to 180:1 in three stages. Motors are available up to 90kW and output torque capacity up to 12,300 Nm. It is designed with integral cast feet for base or end mounting and can be offered with single or double output shafts. This Bevel Helical gear reducers are also available shaft mounted or with output flanges, mounting horizontally or vertically. The units can also be offered with torque arm support.

Houshing: | High-strength cast iron HT250 | ||
Gear material | 20CrMnTi | ||
shaft material: | Shaft-chromium steel-45# | ||
Ratio: | customer-made | ||
Gear Accuracy | 7 to 6 level | ||
Noise(Max) | 60-70dB | ||
inpupt options: | direct motor input or input flange IEC B5 | ||
