3:1 Aluminium Right Angled 90 Degree Gear Box Speed Reducer Increaser

Price Negotiable
Price: $190-200
MOQ: 1
Delivery Time: Negotiable
Brand: KINGEAR or OEM
Product Description
Product Description

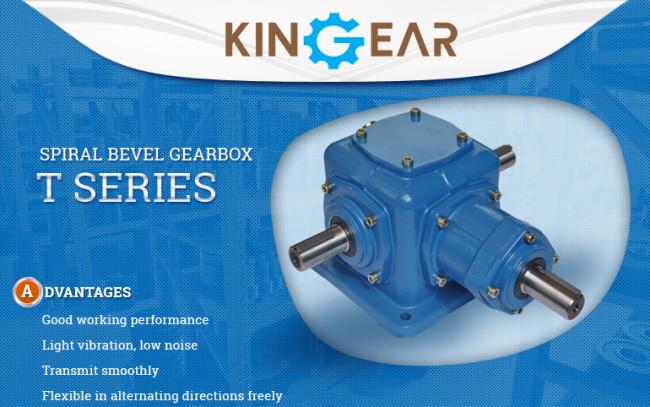

Spiral bevel speed reducer can rotate in either clockwise or anticlockwise and adopts a structure design of multi-direction and integrated input and output shaft. It has features of small volume, high loading capability, wide power range, low noise, high efficiency, flexible in alternating directions freely.

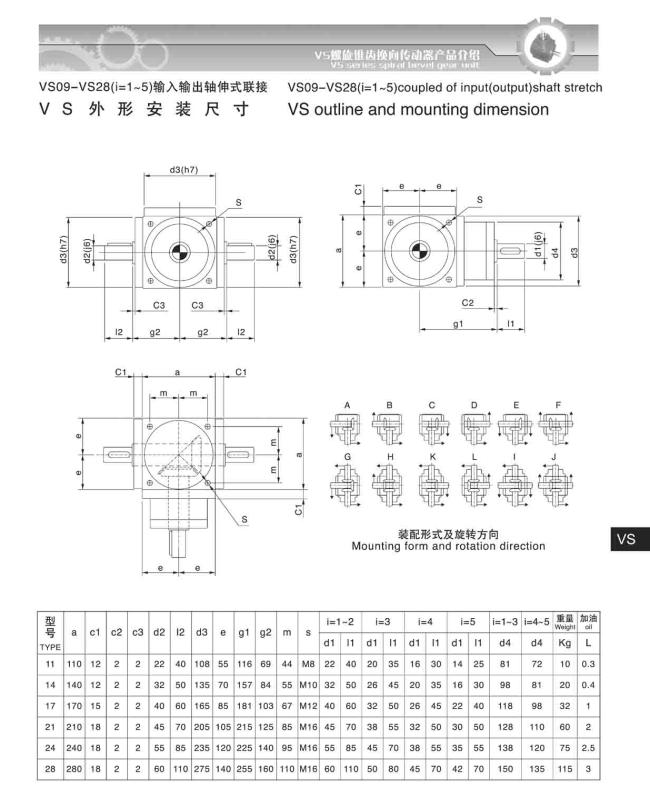

Product model
VS11
VS14
VS17
VS21
Ratio:
 1:1 :  input speed = output speed.
 2:1 : 2 turns input speed = 1 turnsoutput speed.
other ratio: 1:1.5, 1:3. 1:4. 1:5
1:2
output shaft:
22mm
32mm
40mm
45mm
weight
10kg
20kg
32kg
60kg
