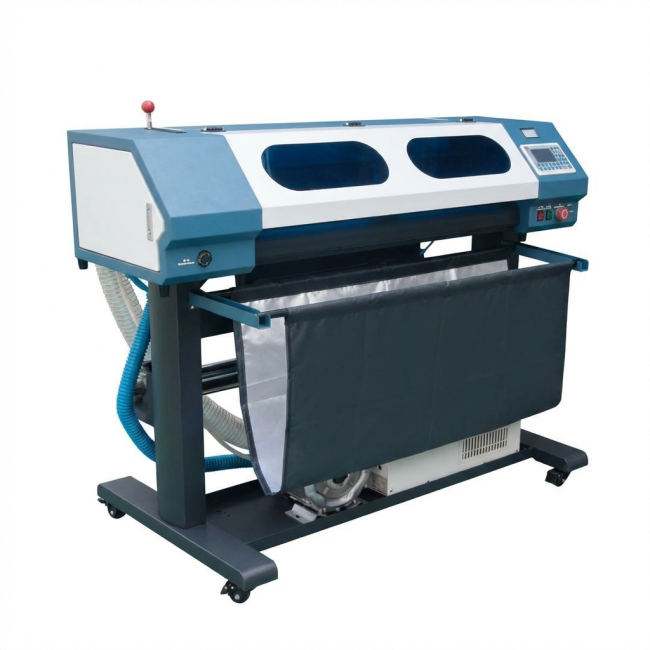

Heat Transfer Laser Vinyl Cutting Machine 110V 220V For Fabric Vinyl Sticker
Price:
USD 1100- USD 3500
MOQ:
1PC
Delivery Time:
5-10 working days
Brand:
LEDIO
Product Description
Heat Transfer Vinyl Laser Cutting Plotter For Fabric Vinyl Sticker
Guangzhou hot sale vinyl sticker film laser cutting plotter heat transfer vinyl plotter cutter with fast speed
We have machine in stock in Guangzhou ,welcome to visit us !
High Speed: Boost Production Efficiency Dramatically
Built with a high-performance motion control system and optimized optical path design, this laser engraving machine featuresbreakthrough high-speed working performance, with an engraving and cutting speed up to 12,000mm/s — 30% faster than standard models on the market. It supports non-contact high-speed continuous operation, shortening single product processing time significantly and greatly boosting daily output. Compatible with roll-to-roll automatic feeding and rewinding, it realizes uninterrupted large-batch production, effectively reducing labor costs and production cycles, fully meeting the high-efficiency demands of small workshops and large industrial factories alike.
|
Type
|
980LASER PRO+
|
|
Laser type
|
SPT glass co2 laser tube
|
|
Tube power
|
50w
|
|
Laser power supply brand
|
laser power
|
|
Maximum discharge width
|
980mm
|
|
Maximum cutting width
|
800mm
|
|
Repetitive cutting accuracy
|
±0.2
|
|
Motor drive mode
|
stepping motor
|
|
Cooling water chiller
|
CW3200
|
|
Cutting gas assistance
|
20w
|
Sample SHOWS:
Control System
Adopts NEW A3S laser controller Supports PC connection, USB disk reading, network port connection, and WIFI connection
Material feeding system
Uses fully segmented steel barbed shaft
The steel barbed shaft has better friction, which is conducive to the accuracy of material forward and backward movement, making
the material run smoothly. With the integrated glue injection pressure wheel, it prevents the material from running off.
The steel barbed shaft has better friction, which is conducive to the accuracy of material forward and backward movement, making
the material run smoothly. With the integrated glue injection pressure wheel, it prevents the material from running off.
Feeding system
Passive feeding Passive feeding uses a fixed left and right clamping shaft. The clamping shaft can adjust the material feeding
force on both sides. The material can be more stable when feeding. The left and right fixers prevent the material from being
offset to the left and right, and the cut material will not deviate
force on both sides. The material can be more stable when feeding. The left and right fixers prevent the material from being
offset to the left and right, and the cut material will not deviate
Waste collector
Waste during cutting can easily cause the material height to increase Waste will fall into the waste collector during material
movement, ensuring stable cutting and easy waste collection to maintain hygiene.
movement, ensuring stable cutting and easy waste collection to maintain hygiene.
Laser tube type
Adopt customized professional CO2 laser tube 50W customized professional laser ube, with small spot, stable cutting, working life
of co2 is about 4000 hours
Waste smoke extraction device
A high-power vacuum turbine blower absorbs the smoke generated by cutting through the pipe.
Machine advantage
1.Laser engraving machine cutting range and advantages: stickers, instant notes, kraft paper, PVC film, PP material, PU material,TPU material, thin acrylic, cardboard, thin wood, silicone material, clothing lettering film, most materials, cloth and other non-metallic soft materials within 2mm can be cut and engraved.
2.Laser cutting plotter is a laser tube or radio frequency laser that emits laser light through three reflections and then focuses to generate cutting force to burn and cut the material. Laser cutting is non-contact cutting, and no compensation is required when cutting directly or at sharp corners. The cutting is very smooth. The cutting edge of laser cutting is easier to separate from the waste and easier to discharge waste. Laser cutting can also achieve multiple color line segments with different power and speed settings, so that half-cutting and full-cutting can be cut at the same time, and the unwanted internal waste can be directly cut off, saving the time of manual removal (also known as laser waste removal machine). Laser cutting plotter can also remove the surface to achieve engraving effect. Laser cutting is deeper than knife cutting, and the cutting thickness can reach 1.5-2.0mm
3.Laser cutting plotter the width of laser cutting plotter can reach 800mm, and the length is no limited, it is no need you to put material by hand. In terms of cutting effect, since the laser head of the laser cutting plotter moves for cutting, the cutting force is uniform and the cutting surface is vertical.
