Small Size CNC Router Machine For Auto Carving Drilling

Price Negotiable

Price: USD 1750-4000

MOQ: 1PC

Delivery Time: 5-10 working days

Brand: LEDIO

Product Description

CNC Router Machine With 600x900mm Working Area 1.5kw Water Cooling Spindle And Hiwin Square Liner Guide For Auto Drilling

Model	6090
Working area	600900100mm
driver and motor	stepper 860 driver and 450A motor
Spindle motor	1.5kw water cooling spindle motor
Inverter	Best brand Frequency inverter
machine table	PVC table combined aluminum T-slot extrusion
X Y Z travelling Positioning Accuracy	0.08/300mm
X Y Z travelling repositioning Accuracy	±0.05mm
Frame	cast iron body structure
X Y structure	Taiwan Hiwin square liner guide and block
Z axis Structure	Ball screw
Max Rapid travel rate	10000mm/min
Max Working speed	8000mm/min
Working Voltage	AC220V 50HZ/60HZ
Control system	NC Studio control system
Limited stop	Extra-travel limit stop and hard limit stop
set collect	including 3.175mm,4mm,6mm
Machine accessories	including 14 tools
Operate system	Niormal
Package	Solidwood wooden package

CNC Drilling Carving Router Machine Sheet Auto Drilling Machine

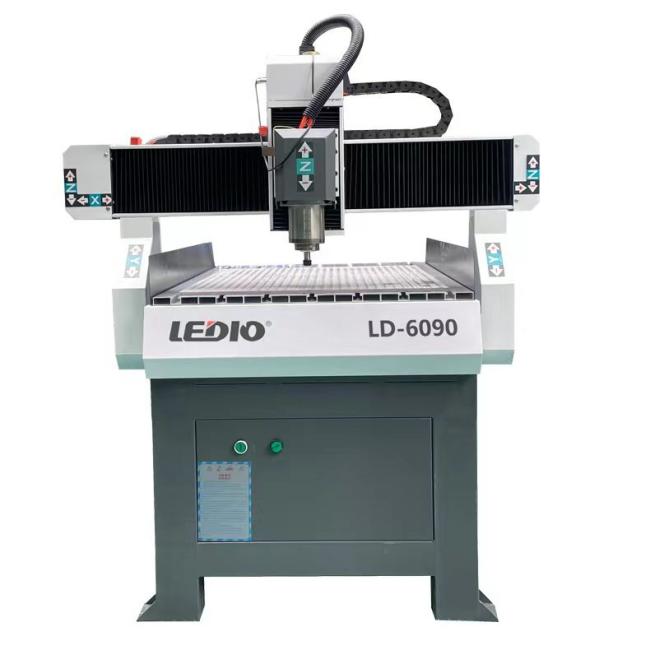

CNC Drilling Carving Router Machine Overview

Applicable Materials & Industries

Applicable Materials

Plexiglas, glass, acrylic, double-color board, ABS board, PVC board, circuit board, inscribed wooden slip, wooden board, and more.

Applicable Industries

Advertisement signs, marks, brands, blister light box mould, casting mould, circuit board manufacture, electroplating drill, art craft works, crystal works, wood products, decoration, upholster and other related industries.

Configuration Details
