1.5KW 2.2KW 3KW Mini CNC Engraving Machine For Hotfix Rhinestone PVC Template Making

Price Negotiable

Price: USD 1750-4000

MOQ: 1PC

Delivery Time: 5-10 working days

Brand: LEDIO

Product Description

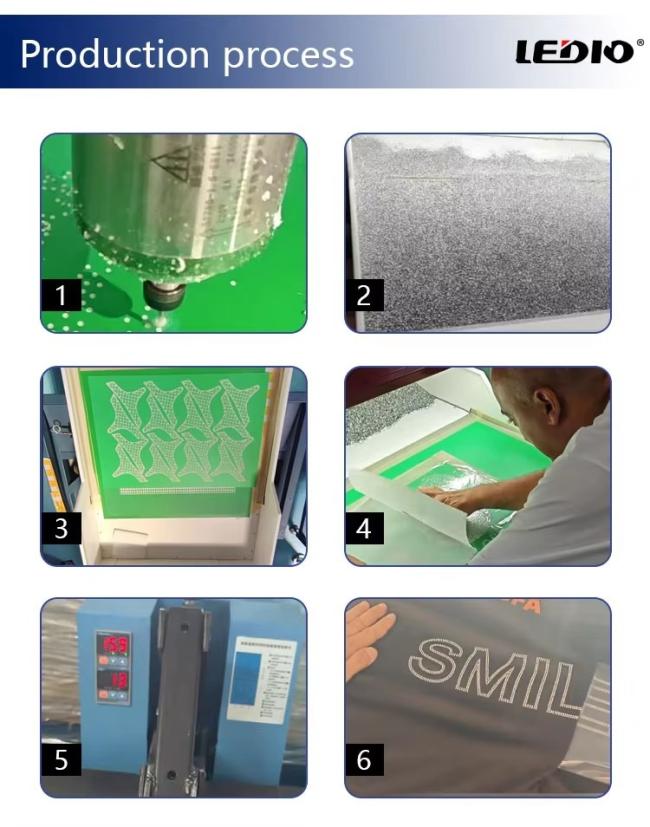

Mini CNC Engraving Machine for Hotfix Rhinestone PVC Template Making

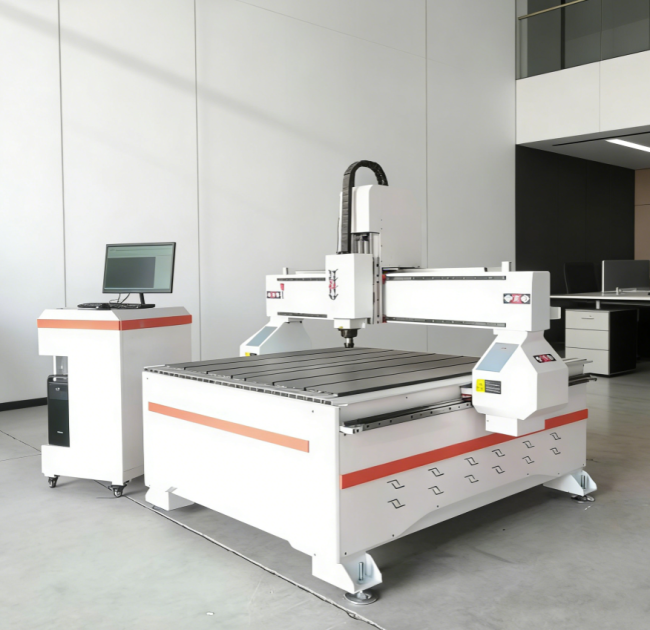

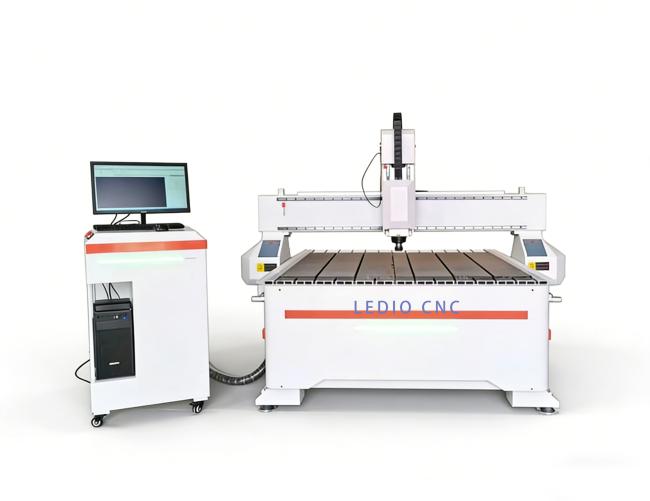

Our 6090 and 1313 CNC Router are compact and high-precision engraving machines ideal for small businesses and DIY users. With working areas of 600×900mm and 1300×1300mm, they perform stable engraving, milling and cutting on wood, acrylic, PVC, MDF, aluminum and soft stone. Built with a rigid frame and precision transmission parts, they ensure high efficiency and accuracy. Easy to operate and widely used in signage, crafts, molds and furniture processing.

Model	6090
Working area	600900100mm
driver and motor	stepper 860 driver and 450A motor
Spindle motor	1.5kw water cooling spindle motor
Inverter	Best brand Frequency inverter
machine table	PVC table combined aluminum T-slot extrusion
X Y Z travelling Positioning Accuracy	0.08/300mm
X Y Z travelling repositioning Accuracy	±0.05mm
Frame	cast iron body structure
X Y structure	Taiwan Hiwin square liner guide and block
Z axis Structure	Ball screw
Max Rapid travel rate	10000mm/min
Max Working speed	8000mm/min
Working Voltage	AC220V 50HZ/60HZ
Control system	NC Studio control system
Limited stop	Extra-travel limit stop and hard limit stop
set collect	including 3.175mm,4mm,6mm
Machine accessories	including 14 tools
Operate system	Windows XP/window7,32bits
Package	Solidwood wooden package
