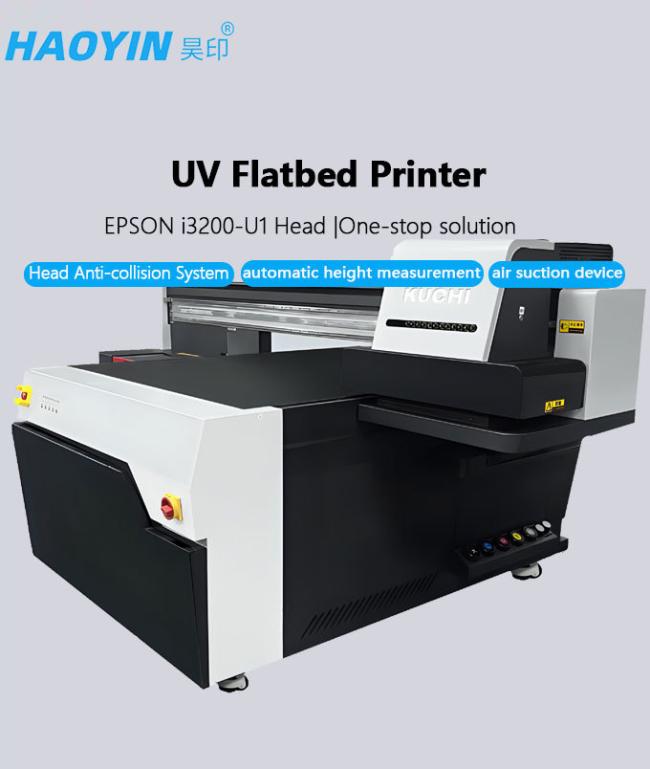

1200x1000mm UV Flatbed Printer for Large Format Custom Signage
1200×1000mm UV Flatbed Printer Ideal for Large Format Custom Signage.
Easy to operate
Simplify complex jobs with a visual positioning system and smart zone suction that automatically recognizes material size. Powered by 3 or 4 Epson I3200-U1 heads, this 1200×1000mm UV printer outputs CMYK plus white, varnish, and frost at 6㎡/h.
Thick material and 3D printing
Designed for thick and rigid substrates, this UV flatbed printer uses Epson I3200-U1 heads (3 or 4 units) across a 1200×1000mm format. Its zoned suction adapts to material size, while the visual positioning system ensures accurate placement on irregular surfaces.
Targeting the Identification and Display Industry
Ideal for signage and display production, this UV flatbed printer delivers photo-quality results on glass, acrylic, PVC, and more. Featuring 3 or 4 Epson I3200-U1 heads, it supports CMYK, white, varnish, and frost effects within a 1200×1000mm print area.
Intelligent suction cup+visual positioning
Intelligent zone suction automatically adjusts to the size of your material, while a visual positioning system ensures perfect alignment. This UV flatbed printer—powered by 3 or 4 Epson I3200-U1 heads—offers CMYK, white, varnish, and frost across 1200×1000mm.
Speed and Capacity
With a production speed of 6 square meters per hour, this UV flatbed printer keeps jobs moving. Configured with 3 or 4 Epson I3200-U1 heads, it handles CMYK, white, varnish, and frost effects on materials like glass, crystal, and leather.
Product Details

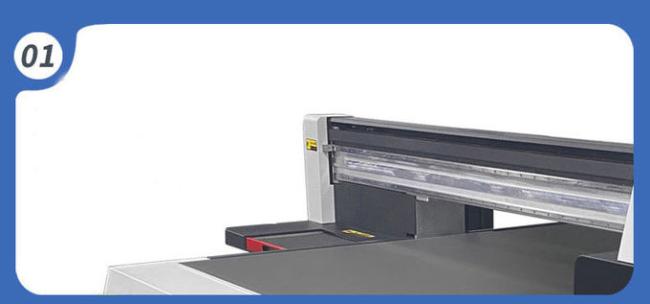

01 Transmission Beam Guide Rail
• Beam: All-steel structure ,5mm thick steel plate
• X-axis: Japan imported THK dual linear guide rail
• Ensures stable carriage movement during printing

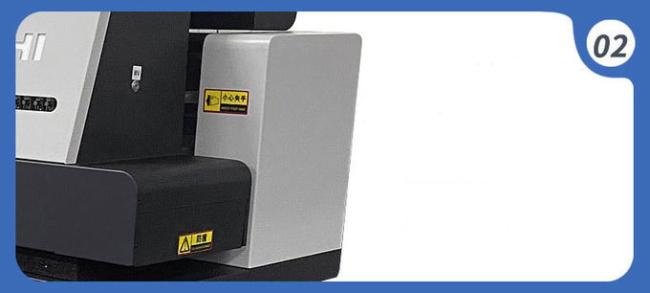

02 Anti-Collision Device
• Anti-collision devices on both sides of the printhead
• Automatically stops the machine when obstacles are detected
• Effectively protects the printhead from damage

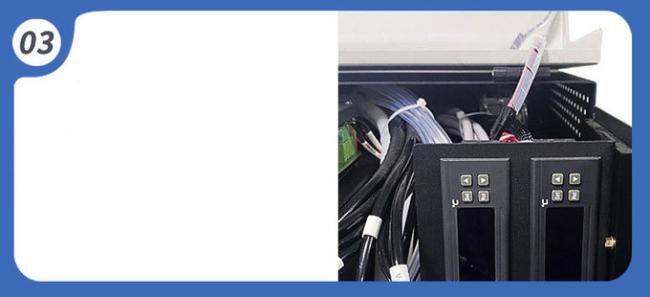

03 Imported UV Lamp
• Imported LED chips with long service life
• Tilted UV lamp design prevents light reflection onto the printhead
• Avoids fatal damage to the printhead
04 High-Toughness Cable Chain
• High-toughness cable chain reduces wire wear
• Extends cable service life
• Low noise during operation
| Printer Model | KY1210 |
| Print Head | Epson I3200 U1 Head |
| Print Format | 1200mm × 1000mm |
| Print Color | CMYK+white+varnish+frosted |
| Ink Type | Environmentally Friendly Water-Based Pigment Ink |
| Printing Height | 10-13CM |
| Speed | 8pass bidirectional 6 square meters per hour |
| Power Supply | 200V/4500W.50HZ/60HZ |
| Operating Enviroment | Temperature:18-30°,Humidty:40%-60%,Dust-Ree Room |
