Six head DTG printer with pre-treatment for bright CMYK on dark wear

Price Negotiable
Price: 14000USD
MOQ: 1
Delivery Time: 7-10 Work Days
Brand: Haoyin
Product Description

Six head DTG printer with pre-treatment for bright CMYK on dark wear



The ideal choice for customized merchants



This double-station DTG printer is equipped with six Epson I3200 print heads and supports nine-color CMYK+ORGB+white ink printing for a broad gamut. The dual-station design increases production efficiency. You can expand to eight heads later, and the moisturizing system fully protects the print heads, improving efficiency and extending their life. A removable platen gives flexibility for various fabric sizes. It prints 80 A4-size patterns per hour, has a small footprint, is easy to operate, and reduces labor costs—so it’s very suitable for custom and small-batch clothing merchants.






Scalable six-head dual-station square



Powered by six Epson I3200 print heads for nine-color printing (CMYK+ORGB+white ink) and a wide color gamut, this double-station DTG printer enhances production efficiency through its dual-station design. Future upgrade to eight heads is possible. The head moisturizing system ensures full protection, boosting efficiency and extending lifespan. A removable platen flexibly handles various fabric sizes. This unit completes 80 A4-sized patterns per hour, has a compact footprint, is easy to operate, and saves labor costs—ideal for clothing merchants doing custom and small-batch production.






Preferred for small-batch customization



Running on six Epson I3200 print heads, this double-station DTG printer supports a full color gamut with nine colors (CMYK+ORGB+white). The dual-station design improves production efficiency. It can be expanded to eight heads later and features a head moisturizing system that fully protects the heads, thus boosting efficiency and prolonging lifespan. A removable platen allows flexible printing on different fabric sizes. It delivers 80 A4-sized patterns per hour, has a small footprint, is easy to operate, and saves labor costs—making it a perfect match for clothing merchants focused on custom and small-batch production.



Technical Specifications
Specification Details
Printer Model KY-5060
Print Head  iEpson I3200A1 Head× 6
Print Width ≤ 40cm
Print Color CMYKORGB + White
RIP Software MainTop / RF / RIIN
Printing Accuracy 720 × 1800 dpi
Recommended Speed 6PASS 70Pcs/A4
Electrical Parameters 220V / 600ma / 50-60HZ
Printing Media Pure cotton and cotton-containing fabrics
Operating System Windows 10 and above
Work Environment Temperature 15-30℃, Humidity 35-85%
Machine Size 2140 × 1236 × 1413mm (600KG)

Product Features

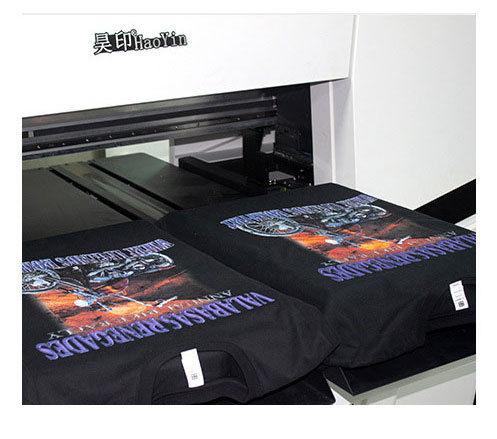

Dual-Station DTG printer

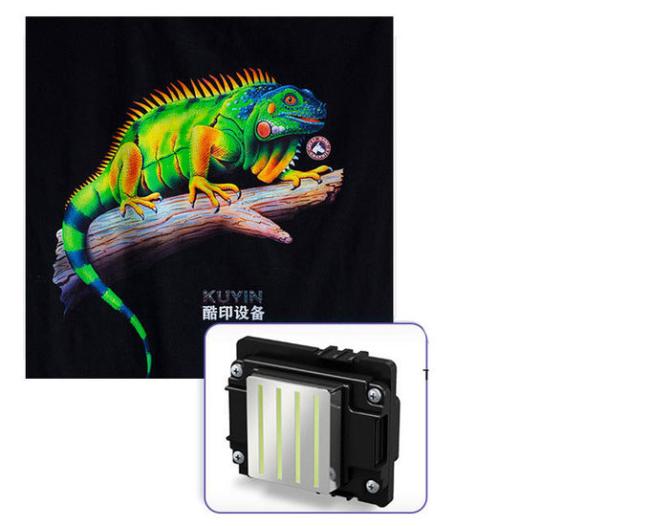

01 Epson i3200-A1 Printhead
This machine has 6 Epson i3200-A1 printheads (2 each for pretreatment, white ink, and color ink). It's easy to use, highly efficient, and requires no manual pretreatment—just print in one go. Speed: 80–120 A4 pieces per hour. With 600 dpi per color and up to 4 colors per printhead, it delivers sharp details, smooth transitions, and vivid colors. The printheads are durable and low-maintenance.

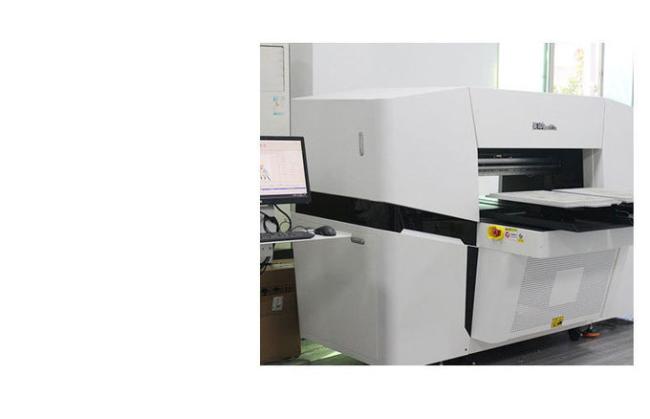

02 Compact Size & Easy Operation

It has a small size and takes up little space. It is easy to use: you just need a design to print, and basic computer skills to run the machine.

03 Epson i3200-A1 Printhead

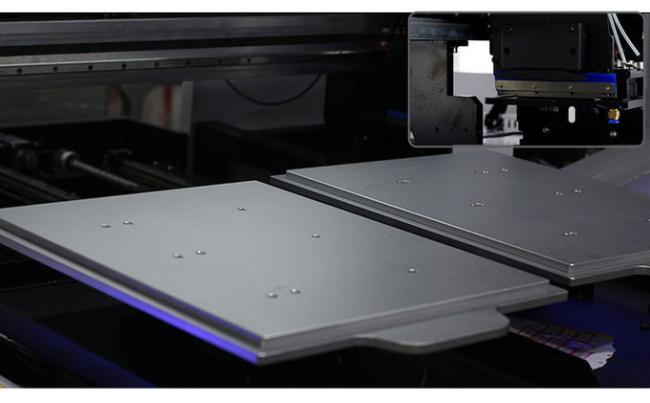

60×90cm max print size. Supports various print areas. Standard: two 40×50cm stations. Custom sizes on request.

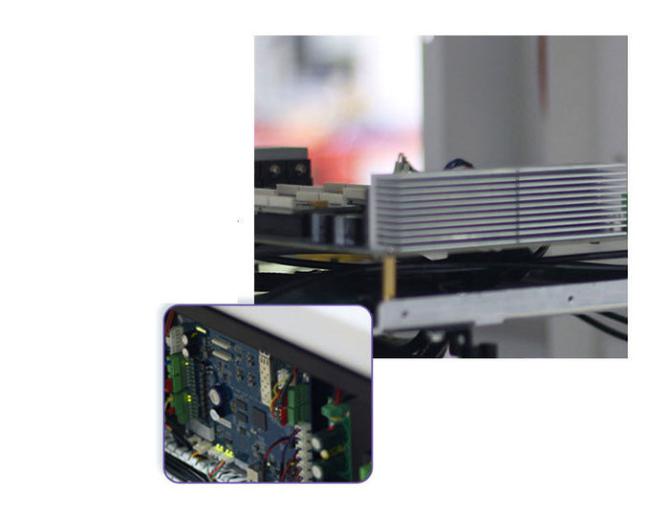

04 Premium Domestic Mainboard
Domestic high-quality mainboard ensures stable operation, high print precision, and excellent color output.

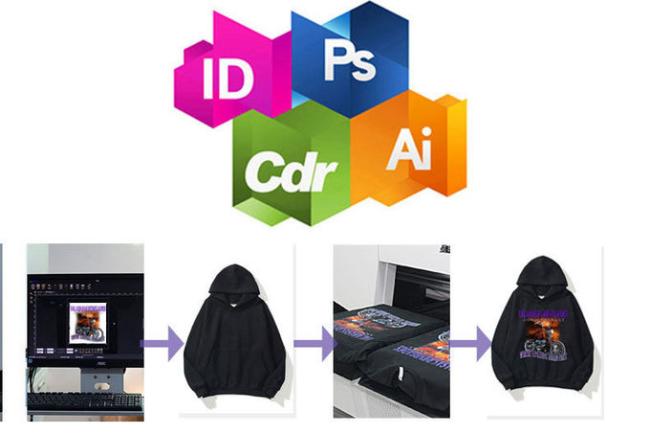

05 Pro Color Software
Imported RIP software offers user-friendly color management — freely adjust ink, remove backgrounds with one click, and arrange layouts easily. Delivers high color accuracy, smooth transitions, and strong 3D effects.

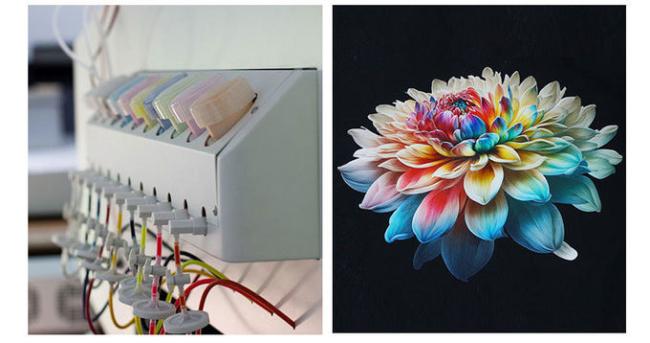

06 9-Color Ink Cartridges for Vivid Prints
With 9-color ink cartridges, you can choose from two color configurations:

07 Printhead Protection System
The printhead protection system helps the printhead last longer by giving it:

• Auto-circulation for white ink

• Anti-crash protection

• Humidification

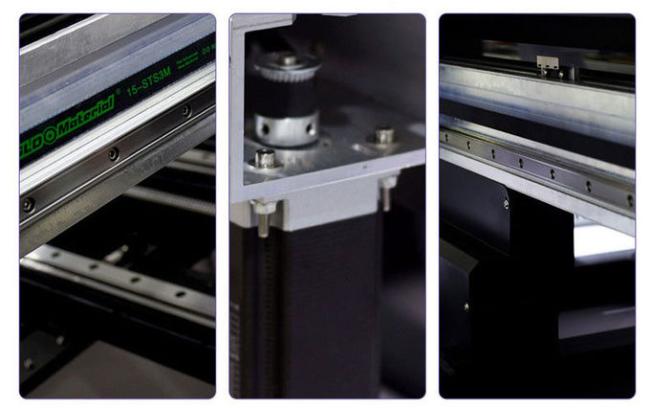

08 Imported Linear Guides
Japanese imported THK/Hiwin guides, steel beam, and dual servo motors ensure jam-free, high-speed, high-precision printing. Consistent accuracy even after years of use.
