China 5.0mm Vent Rite Air Oxidized Black Valve One Way Vent Valve CJ06-N002 Metal Threaded Waterproof Air Permeable Valve Reliable Metal Vent Valve for Outdoor & Industrial Electronics for sale

5.0mm Vent Rite Air Oxidized Black Valve One Way Vent Valve CJ06-N002 Metal Threaded Waterproof Air Permeable Valve Reliable Metal Vent Valve for Outdoor & Industrial Electronics

Name: 5.0mm Vent Rite Air Oxidized Black Valve One Way Vent Valve CJ06-N002 Metal Threaded Waterproof Air Permeable Valve Reliable Metal Vent Valve for Outdoor & Industrial Electronics
Brand: XINXIA New Material Co., Ltd

Price Negotiable

Price: 0.8USD/PCS

MOQ: 5000PCS

Delivery Time: 5-8 work days

Brand: XINXIA

Product Description

CJ05-N036

Part name/ Product model	Metal threaded waterproof air permeable valve
Customer / Customer name
P/N/ code	CJ05-N036
Customer P/N / Customer part number

product appearance

Thread specifications	M05X0.8
Length of thread	5.0mm
Material quality	Stainless steel aluminum alloy ☑ Copper Other Please note:
Colour	Natural color Oxidized black ☑ Nickel plating Other please note:
Gasket ring	☑ Black O-ring Original color O-ring Black flat washer Original color flat washer
Logo	Logo ☑ No logo

Product performance characteristics

Breathability & Water resistance	☑ M007≥50ml/min, IP67>10Kpa (about equal to 1.0 m water pressure)
Working temperature	-40℃ ~125℃
Salt atmosphere	48 hours (IEC 68-2-11)
Torsion	0.5 ±0.1Nm

Design and dimensions

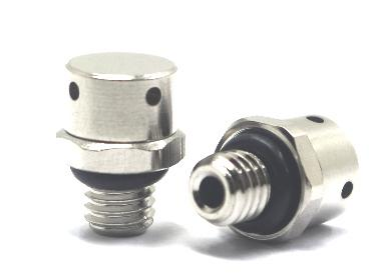

Product display

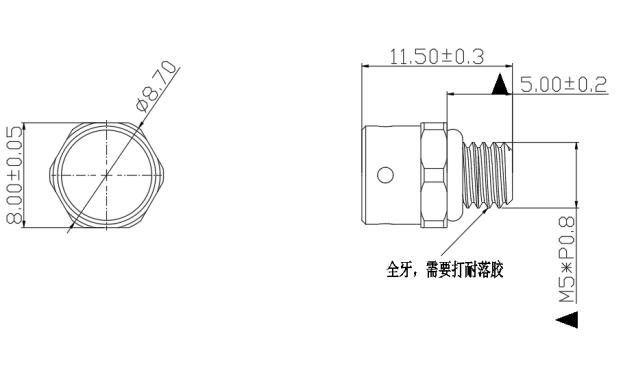

Design dimension

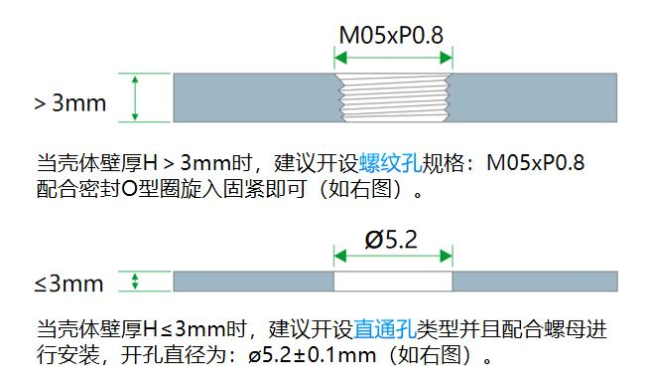

Installation suggestions

Recommended size

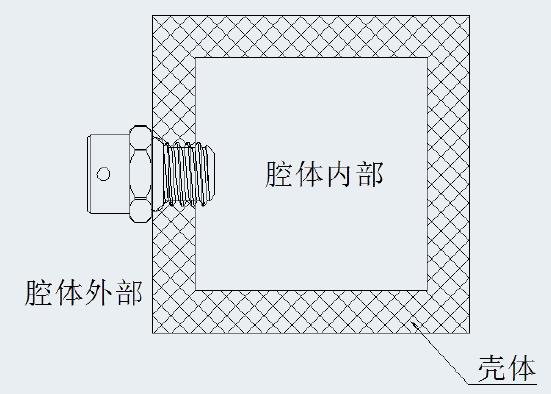

Installation diagram
