China 0.4Nm Auto Vent Valve M04 X 0.7 Vacuum Vent Valve Metal Threaded Waterproof Air Permeable Valve Compact Metal Vent Valve for Outdoor & Industrial Electronics for sale

0.4Nm Auto Vent Valve M04 X 0.7 Vacuum Vent Valve Metal Threaded Waterproof Air Permeable Valve Compact Metal Vent Valve for Outdoor & Industrial Electronics

Price Negotiable
Price: 1.5USD/PCS
MOQ: 5000PCS
Delivery Time: 5-8 working days
Brand: XINXIA
Product Description

CJ04-N001

Part name/ Product model

Metal threaded waterproof air permeable valve

Customer / Customer name



P/N/ code

CJ04-N001

Customer P/N / Customer part number


product appearance

Thread specifications

M04X0.7

Length of thread

5.0mm

Material quality

☑ Stainless steel         aluminum alloy   Copper     Other Please note:

Colour

☑Natural color     Oxidized black   Nickel plating   Other please note:

Gasket ring

Black O-ring         Original          ☑ color O-ring     Black flat washer     Original color flat washer

Logo

☑ Logo     No logo
Product performance characteristics

Breathability

&

Water resistance

☑ M002≥60ml/min, IP67>10Kpa (about equal to 1.0 m water pressure)

Working temperature

-40℃ ~125℃

Salt atmosphere

48 hours (IEC 68-2-11)

Torsion

0.4 ±0.1Nm
Design and dimensions

Product display

 27

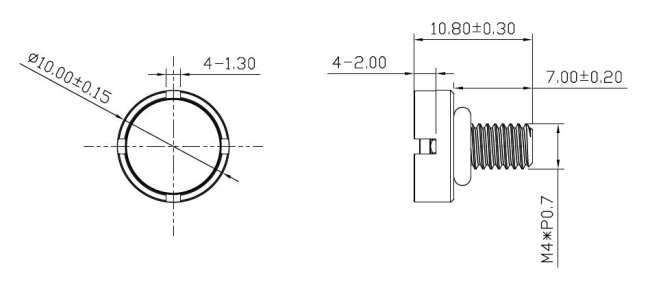

 Design dimension

 28
Installation suggestions

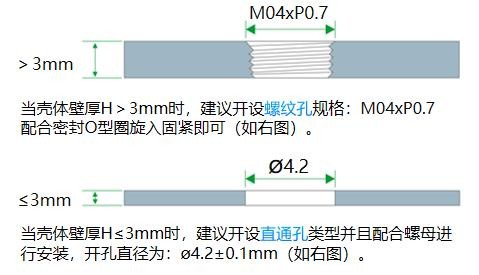

Recommended size

 29

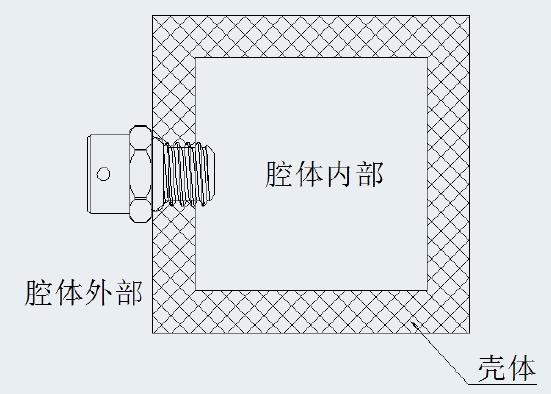

 Installation diagram

 14
