Servo CNC Turret Punch Press 300 KN Punching Capacity Low Noise High Stability
This servo CNC turret punch press machine utilizes thick turret standard tooling and features:

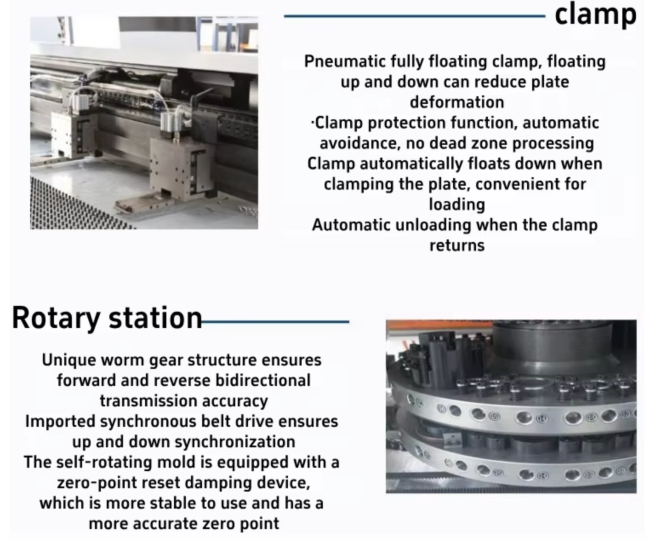

- Main transmission with direct drive servo motor for simple, reliable structure
- Superior performance compared to hydraulic transmission systems
- High-efficiency, energy-saving operation with low noise levels
- High accuracy for precision manufacturing
- Capable of multiple processes including die-cutting, forming, beading, and lettering
- 300KN punching force capacity
- Maximum sheet size: 5000x1250mm (with one re-positioning)
- Five-axis machining (X, Y, T, Z, A)
- Dadong CNC software on IEI system specifically developed for punch presses
- Japan AC servo motor and amplifier unit
- Nanjing Estun all-electric servo motor for punching power
- O-frame steel welding frame construction
- Taiwan HIWIN or German Rexroth linear guides and ball screws
| Parameter | Unit | HC-300/HC-400 |
|---|---|---|
| Punching force | KN | 300/400 |
| Frame structure | "O" type closed frame | |
| Max. machined plate size | mm | 5000x1250 | 5000x1500 | 5000x2000 |
| Stamping stroke | mm | 40 | 40 | 40 |
| Max. diameter of one punch | mm | 88.9 | 88.9 | 88.9 |
| Max. punching frequency | hpm | 1800 | 1800 | 1800 |
| Max. processed sheet thickness | mm | 6.35 | 6.35 | 6.35 |
| Workstation | piece | 28/32 | 28/32 | 28/32 |
| Hole spacing accuracy | mm | ±0.10 | ±0.10 | ±0.10 |
| Max. punching frequency (1mm pitch, 6mm stroke) | hpm | 800 | 800 | 800 |
| Max. punching frequency (25.4mm pitch, 6mm stroke) | hpm | 400 | 400 | 400 |
| Max. speed of sheet movement | m/min | 106 | 106 | 106 |
| Number of control axes | piece | 5 | 5 | 5 |
| Turret speed | r/min | 30 | 30 | 30 |
| Maximum mass of workpiece | kg | 156 | 156 | 156 |
| Air supply pressure | Mpa | 0.6 | 0.6 | 0.6 |
| Overall dimensions (LxWxH) | mm | 5200x5200x2280 | 5500x5200x2280 | 6400x5200x2280 |
- One-year machine warranty (excluding damage from improper operation)
- Complete documentation including installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists
- On-site installation guidance and staff training services available
30-50 working days, based on factory production order conditions.
We provide overseas service with engineers available to guide installation and debugging at your location.
We design machines according to your requirements, typically based on workpiece size, weight, and efficiency needs.
One-year warranty with 10 quality control teams checking every part from design drawings through machine completion.
