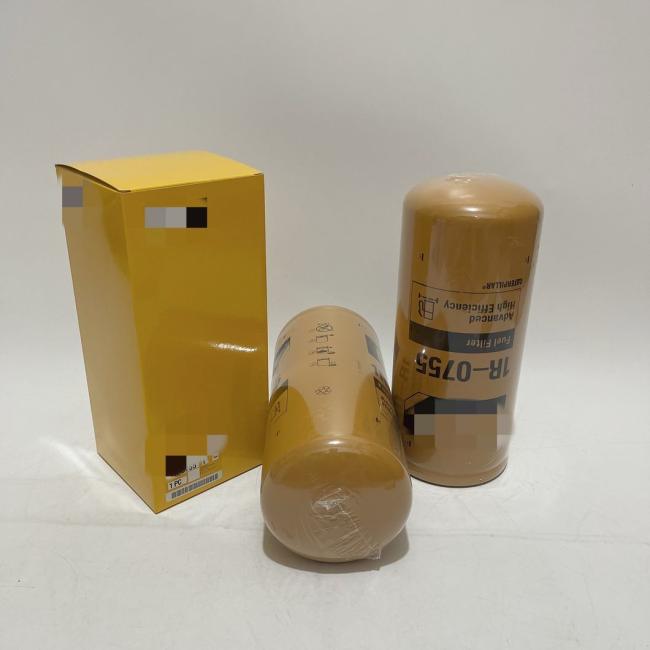

1R-0755 High Efficiency Water Separation Spin On Fuel Filter CAT Excavator Loader Diesel Engine
1R-0755 spin-on fuel filter is high-performance replacement filter for CAT diesel engine construction equipment. Advanced multi-layer filter media efficiently traps water, fine sediment and fuel impurities to protect fuel injectors and engine fuel system from abrasion damage. Thick seamless steel can and durable nitrile rubber sealing ring effectively prevent leakage under fluctuating working pressure. Same OEM dimensional specification enables quick direct spin-on installation without modification. Designed for heavy-load dusty construction and mining conditions, superior dirt holding capacity extends filter service cycle and reduces overall engine maintenance cost.
| Parameter | Details |
|---|---|
| Part Number | 1R-0755 |
| Product Name | 1R-0755 High Efficiency Spin-On Fuel Water Separator Filter |
| Filter Type | Fuel Filter (SpinOn, ScrewOn, with Water Separator & Drain Valve) |
| Filtration Media | HighEfficiency Glass Fiber Composite Media |
| Filtration Rating | 2 μm (98% Efficiency, Beta ≥ 200) |
| Outer Diameter (OD) | 108 mm (4.25 in) |
| Overall Length | 330 mm (13.0 in) |
| Thread Size | 114 UNS2B |
| Max Operating Pressure | 0.69 MPa (100 psi) |
| Max Flow Rate | 189 L/min (50 GPM) |
| Water Removal Efficiency | >95% |
| Seal Material | Nitrile Rubber (NBR) |
| Installation Type | SpinOn (ScrewOn) |
| Single Net Weight | 1.6 kg (3.53 lbs) |
| Single Package Size | 115 × 115 × 340 mm |
| Single Gross Weight | 1.7 kg |
| Application | HeavyDuty Diesel Engines, Construction Machinery, Mining Equipment, Generators, Marine |
| Compatible Models | 3406, 3408, 3412, 3508, 3512, 3516, C15, C18, C27, C32; Excavators, Bulldozers, Loaders, Trucks |
| Cross Reference | FF5644 P552020 BF7753 33820 WK940/26 |
| OEM Part No | Cross Reference | Fit CAT Equipment |
|---|---|---|
| 1R-0755 | BF7638,FF5264,P551329 | 325L,330L Excavator,966F/980G Loader,3306/3406 Engine |
| 1R-0756 | BF7639,FF5265,P551330 | 345B,365B Large Excavator,992D Loader |
| 1R-0757 | BF7640,FF5266,P551331 | D8R,D9N Bulldozer,3508 Generator Engine |
| 1R-0758 | BF7641,FF5267,P551332 | E240,3126 Series Industrial Engine |
- ISO 9001 certified.
- 100% pressure, flow, and leakage tested before shipment to ensure quality.
- Comply with construction machinery hydraulic component industry standards.
- 10+ years of professional experience in manufacturing excavator hydraulic parts, mature technology, stable quality.
- Sufficient inventory, ready stock for popular models, fast delivery.
- Support OEM/ODM customization, develop special models per customer requirements.
- Complete after-sales team, provide technical consultation, installation guidance, troubleshooting.
- Free replacement or repair for non-human quality issues within warranty period.
- Provide technical support for installation, commissioning, and operation.
- Lifetime supply of wearing parts and maintenance services at cost price.
ISSUES YOU MAY BE CONCERNED ABOUT
HERE IS THE ANSWER!
A: Compatible with CAT 325L,330L excavators,966F/980G wheel loaders and machinery with 3306,3406 diesel engines.
Q2: Available interchange part numbers?A: Replaces BF7638, FF5264, P551329.
Q3: Core advantage of this fuel filter?A: Multi-layer filter paper realizes excellent water separation and impurity interception to safeguard fuel injectors.
Q4: Installation method?A: Standard spin-on threaded design for fast screwing installation without extra accessories.
Q5: Can it replace original CAT filter directly?A: Strict OEM size, seamless matching for plug-and-play replacement.
Thank you for attention!
