Virgin Long Fiber Kraft Paper Takeaway Bags With Square Bottom Structure Custom Logo Printing
Price:
Negotiable
MOQ:
1000 pieces
Delivery Time:
7-15 days
Brand:
XinYanForever
Product Description

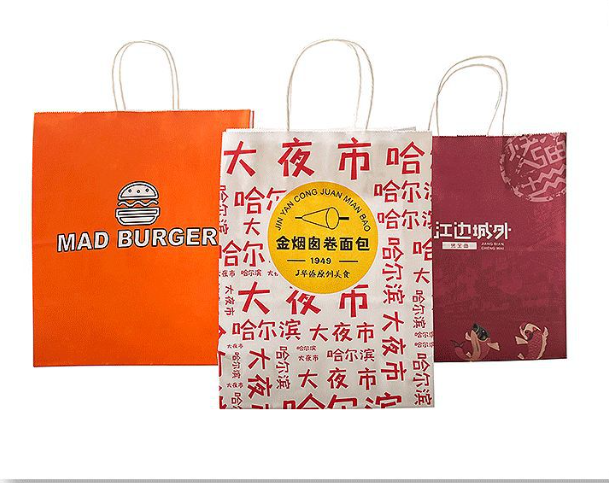

Kraft Paper Handled Takeaway Bags
Professional packaging solutions for food delivery, milk tea, bakery, and gift applications with custom logo printing capabilities.
Product Overview
Our kraft paper handled takeaway bags undergo rigorous engineering testing for material selection, structural mechanics, and handle reinforcement systems. Designed to withstand heavy loads and rough handling in food delivery, milk tea, bakery, and gift scenarios.
Technical Specifications
Virgin Kraft Paper Mechanical Advantages
Selected long-fiber softwood pulp kraft paper with 2.5-3.0mm average fiber length provides superior strength:
- MD Tensile Strength: ≥ 4.5kN/m (120g specification)
- Bursting Strength: ≥ 350kPa (120g specification)
- Tearing Strength: ≥ 800mN (MD direction)
Kraft paper demonstrates 35% higher tear resistance than ordinary white cardstock, maintaining structural integrity even with sharp-edged containers or in humid environments.
Square Bottom Structure Mechanics
Machine-precision folded square bottom design optimizes load distribution:
- 40% increased bottom load-bearing area with uniform stress distribution
- Enhanced longitudinal support preventing content sagging and deformation
- 25%-30% expanded volume capacity compared to traditional tapered bottom bags
Static load tests confirm size #12 bags (240×320×130mm) loaded with 8kg for 24 hours show no bottom cracking or deformation.
Handle System Load-Bearing Solutions
| Handle Type | Material Specifications | Fixing Method | Dynamic Load Capacity | Applicable Scenarios |
|---|---|---|---|---|
| Kraft Paper Twisted Handle | 3-ply virgin paper rope, diameter 4mm | Double rivets + hot melt adhesive | ≤ 5kg | Milk tea, bakery, light retail |
| Cotton Rope Handle | 16-ply combed cotton, diameter 5mm | Double rivets + reinforcement patch | ≤ 8kg | Food delivery, multiple drinks |
| PP Webbing Handle | Width 15mm, thickness 1.2mm | Four-hole rivets + hot melt adhesive | ≤ 12kg | Heavy retail, beverages, gift boxes |
All handle connections undergo simulated repeated lifting tests (80 times/minute for 2 continuous hours) ensuring no loosening or detachment under full load.
Custom Printing Technical Specifications
Bag surface calendered to 30-40s smoothness ensures clear dot reproduction:
- Printing Precision: Minimum reproducible line width 0.1mm, dot reproduction rate ≥95%
- Registration Error: ≤0.2mm, precise multi-color registration
- Color Control: ΔE < 1.5 (within batch), Pantone matching
- Abrasion Resistance: Printed layer tested under 4lb pressure friction, 50 cycles with no visible wear
Supports offset printing, flexo printing, hot stamping, embossing/debossing, and other processes.
Environmental Adaptability Testing
Extreme usage scenario simulations:
- High Temperature & Humidity: 24 hours at 40°C/85% RH, paper stiffness retention ≥85%
- Low Temperature Brittleness: Drop test after freezing at -10°C for 4 hours, no brittle cracking
- Water Resistance: Water droplets wiped from surface, no penetration or deformation within 30 minutes
Standard Specifications
| Item | Specification Details |
|---|---|
| Product Name | Kraft Paper Handled Takeaway Bags (Square Bottom Reinforced Series) |
| Product Material | Virgin Long-Fiber Kraft Paper / Recycled Eco-Friendly Kraft Paper (Optional) |
| Paper Grammage | 80g / 100g / 120g / 150g (±5% tolerance) |
| Available Sizes | Width 120-450mm / Height 150-600mm / Bottom Width 50-250mm (Full customization) |
| Dimensional Tolerance | ±2mm |
| Bottom Structure | Machine-folded square bottom, flat when opened, four-corner support |
| Handle Types | Kraft Paper Twisted Handle / Cotton Rope / PP Webbing (Length and color customizable) |
| Handle Fixing | Double Rivets / Four-Hole Rivets + Hot Melt Adhesive + Reinforcement Patch (Optional) |
| Rivet Material | Galvanized Iron / Copper / Eco-Friendly Paper Rivets (Optional) |
| Load Capacity Grade | Light ≤3kg / Standard ≤5kg / Reinforced ≤8kg / Heavy-Duty ≤12kg |
| Printing Process | Offset Printing / Flexo Printing / Hot Stamping / Embossing/Debossing / Screen Printing |
| Printing Colors | 1-4 colors (Spot color available) |
| Color Control | ΔE < 1.5 |
| Surface Treatment | Water-Based Varnish / Matte Varnish / Lamination (Matte/Glossy) |
| Logo Customization | Supports printing of logos, text, patterns, barcodes, QR codes |
| Environmental Certification | FSC Forest Certification / Recyclable / Biodegradable / ISO 14001 |
| Packaging Method | Flat Folded (50-100 pcs/bundle) + Export-Grade Corrugated Cartons |
| Storage Conditions | Temperature 10-30°C / Humidity ≤70% RH / Protect from light and moisture |
| Shelf Life | 24 months |
| Minimum Order Quantity | 5,000 units (Standard) / 10,000 units (Custom Printed) |
| Lead Time | Sampling 3-5 days / Bulk Production 15-20 days (subject to order quantity) |
Process Quality Control
| Process Stage | Execution Standard | Quality Characteristics |
|---|---|---|
| Paper Inspection | Grammage/Thickness/Moisture/Tensile Strength | Batch sampling ensures raw material compliance |
| Printing Registration | Automatic Color Registration System | Precise multi-color registration, clear pattern edges |
| Die-Cutting & Indentation | Laser Die ±0.1mm | Consistent indentation depth, smooth folding without cracking |
| Handle Installation | Automated Riveting Equipment | Smooth rivets, firm connection without loosening |
| Finished Product Inspection | Full Inspection / Sampling | No surface stains, qualified dimensions, secure handles |
Application Scenario Recommendations
| Scenario Type | Recommended Configuration | Core Value |
|---|---|---|
| Milk Tea Chains | 120g Kraft Paper + Cotton Rope Handles + 4-Color Offset Printing | Balancing load capacity with unified brand image |
| Bakeries | 100g Kraft Paper + Paper Rope Handles + Hot Stamping Logo | Natural texture, aligning with artisanal branding |
| Fast Food Delivery | 120g Kraft Paper + PP Webbing Handles + Flexo Printing | Cost optimization, suitable for large-volume procurement |
| Premium Retail | 150g Kraft Paper + Cotton Rope Handles + Embossing | Premium texture, enhancing brand positioning |
| Holiday Gift Boxes | Custom size + Color Printing with Lamination + Hot Stamping | Strong gift appeal, suitable for holiday marketing |
Quality Assurance
With 20 years of paper bag production experience, we operate fully automatic printing presses, die-cutting machines, and integrated handle riveting machines with daily production capacity of 300,000 bags. All processes from paper procurement to finished product delivery are controlled in our own factory.
Three-Inspection Quality System
- First Article Inspection: Confirm signed samples before production startup
- In-Process Inspection: Sampling every 2 hours during production
- Final Inspection: Full inspection of finished products or sampling according to AQL standards
Choose our Kraft Paper Handled Takeaway Bags to make every bag a silent ambassador of your brand's reliable image.
