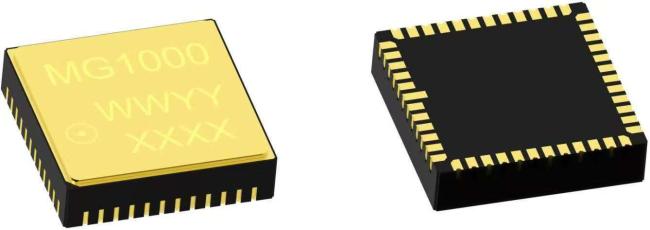

High Precision MEMS Gyroscope Chip Micro Mechanical Design Acceleration Sensor SIMG10000
Built on a fully domestic silicon-based MEMS technology platform, this system delivers precise and reliable inertial sensing with its core strengths of high performance, high reliability, and complete self-reliance.
Through the deep integration of precision micro-mechanical design, advanced manufacturing processes, and intelligent measurement and control algorithms, the product delivers outstanding features including high precision, reliability, and integration, along with low noise, low power consumption, and cost-effectiveness, achieving comprehensive performance at the international advanced level.
Main performance Parameters
|
test item |
unit |
MG10000 |
|
Range |
g |
±500 |
|
Bandwidth |
Hz |
≥50 |
|
Scale factor |
LSB/g |
8000 |
|
Scale factor repeatability |
ppm |
≤100 |
|
scale factor temperature sensitivity |
ppm/℃ |
≤50 |
|
Nonlinear scaling factor |
ppm |
≤100 |
| Zero bias stability (10s,1σ) | °/h | ≤5 |
|
Zero bias repeatability |
°/h |
≤3 |
|
Angle random walk |
°/√h |
≤0.5 |
|
Zero offset temperature sensitivity |
°/h/℃ |
≤0.2 |
|
G value sensitivity |
°/h/g |
≤1 |
|
Vibration rectification error |
°/h/grms |
≤1 |
|
Power-on time |
s |
≤1 |
|
Impact (live) |
g |
1000 |
|
Impact-resistant (unpowered) |
g |
10000 |
|
Vibration (charged) |
/ |
12grms,20Hz-2kHz |
|
Working temperature |
℃ |
-45~85 |
|
Supply voltage |
V |
5±0.25 |
|
Current |
mA |
40 |
