SA-50 Dual-Battery Edition Industry Application Drone

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

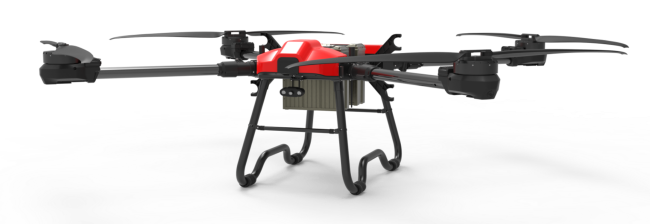

Heavy Lift Cargo Drone SA-50 features an all-new structural design with a modular airframe for exceptional compatibility. Equipped with a quick-release dual-battery system and a front-rear folding quadcopter configuration, it supports optional obstacle avoidance and terrain-following radar extensions.

The front-mounted FPV camera delivers clear real-time imagery feedback. Powered by 56-inch propellers for robust performance, its lightweight construction offers compact dimensions with high payload capacity, ensuring portability and operational flexibility.

Maximum payload capacity: 50kg. Suitable for transporting cargo, delivering saplings, high-altitude equipment deployment, and multiple industries. (Customizable high-capacity batteries extend flight time). Available in Smart Battery Edition or Soft-Pack Battery Edition.

SPEC:

Product Wheelbase 2280mm
Product Dimensions

1783x1783x730mm(Expand)

950x910x923mm(Fold)

Product Weight

14kg(Rack weight including cargo hold)

33.5kg(Highest configuration, battery not included)

59.5kg(Weight including dual batteries)

109.5kg(Maximum takeoff weight with 50kg payload)

Arm Dimensions 46x50mm
Maximum Payload 20~50kg
Mounting method Plug-in Dual Power Board
Flight Controller boying/KX/VK
Remote Controller H12/H16/MK32
Power System

X13(Electric motor)

200A(Electronic control)

73-inch (propeller)

Battery 18S 30000mAh*2

Full Load Range(40~50kg)

9~15min
No Load Range >50min
