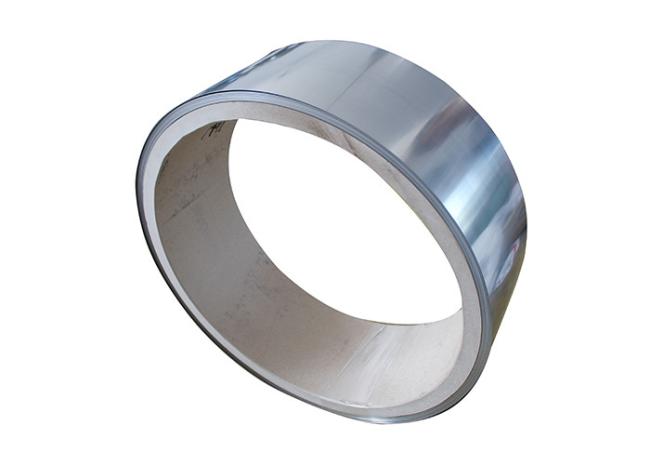

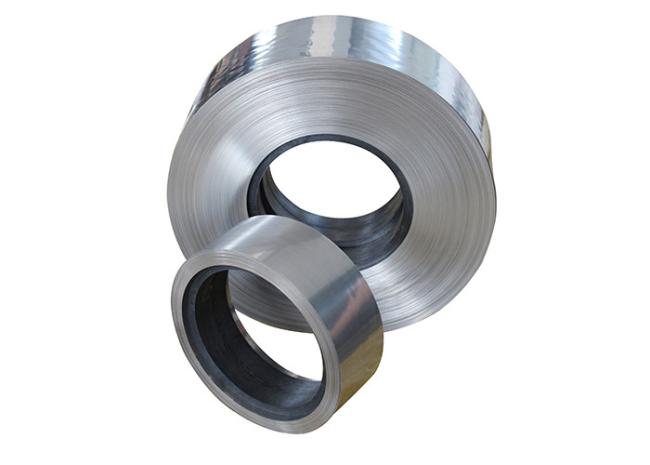

1*35mm Resistance Alloy Ni30Cr20 Strip For Sale
1*35mm Resistance Alloy Ni30Cr20 Strip For Sale
- NiCr Series
DLX alloy could offer nickel resistance alloy Ni30Cr20, It is an austenitic nickel chrome alloy suitable for temperature applications, The Max working temperature could be up to 1100°C. This alloy is characterized by high resistivity, good oxidation resistance, good ductility after use and excellent weldability. Ni30Cr20 is used for a wide range of electric heating elements in domestic appliances.
Typical applications: hot plates, heavy-duty rheostats, storage heaters, convection heaters, fan heaters, heating cables, electric blankets and pads, car seats, resistors, etc.
Common Name: OhmAlloy104B, Ni30Cr20,Nikrothal 30, N3, HAI-NiCr 30, Resistohm 30,30-20 Ni-Cr,Nikrothal 3
Ni30Cr20 Nickel-Chromium Nickel alloy resistance heating flat wire.
- Ni30Cr20 Nickel-chromium alloy performance tables
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composition | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | ||
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | ||
| μΩ·m,20℃ | |||||||
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | ||
| J/g.℃ | |||||||
| Thermal conductivity | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | ||
| KJ/m.h℃ | |||||||
| Coefficient of lines expansion | 18 | 17 | 17 | 19 | 19 | ||
| a×10-6/ | |||||||
| (20～1000℃) | |||||||
| Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | ||
| Magnetic properties | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | ||
- Ni30Cr20 The Form we could offer
| Size Range | Wire | Ribbon | Strip | Rod | ||||
| dia 0.03-7.5mm | dia 8.0-12.0mm | (0.05-0.35)*(0.5-6.0)mm | (0.50-2.5)*(5-180)mm | 8-50mm |
||||
