FeCrAl Alloy 0Cr23Al5 Resistance Heating Wire For Industry Heating
- FeCrAl Series
0Cr23Al5 is a high-performance electric heating alloy widely used in various electric heating equipment and heating elements due to its excellent high-temperature resistance, good oxidation resistance, and excellent mechanical strength.
- High-Temperature Heating
The 0Cr23Al5 resistance wire is widely used in industrial heating due to its excellent high-temperature stability. It can operate stably for extended periods at extremely high temperatures, making it suitable for industrial processes requiring high-temperature heating.
- Heating Furnaces and Smelting Equipment
The 0Cr23Al5 resistance wire is commonly used in heating furnaces, smelting furnaces, and other equipment. Its high-temperature stability and corrosion resistance make it an ideal heating element for these devices, used in industrial processes such as metal smelting and glass processing.
- Plastic Processing
In the plastic processing industry, the 0Cr23Al5 resistance wire is used for heating various plastic processing equipment, such as injection molding machines and extruders. Its fast heating and uniform heating characteristics help improve the efficiency and quality of plastic processing.
- Chemical Reactors
In the chemical industry, the 0Cr23Al5 resistance wire can be used for heating chemical reactors and reaction equipment. Its stable heating performance and corrosion resistance make it an ideal choice for providing precise temperature control in chemical reaction processes.
- Glass Manufacturing
The 0Cr23Al5 resistance wire plays a crucial role in the glass manufacturing process, used for heating glass melting furnaces and glass forming equipment. Its high-temperature stability and uniform heating characteristics help ensure production efficiency and product quality in glass manufacturing.
- Ferrous Chromium Aluminum alloy performance tables
| Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main Chemical composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Nb0.5 | Mo1.8-2.2 | |||||||
| Max. continuous service temp. of element(°C) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity at 20ºC(μΩ·m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Thermal conductivity(KJ/m·h·ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | ||
| Coefficient of lines expansion(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Continuous Servicetime(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
Magnetic |
|

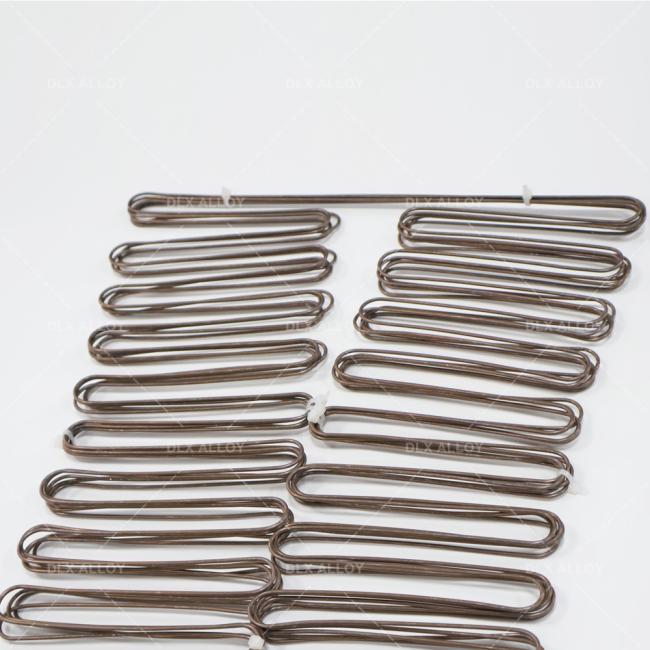

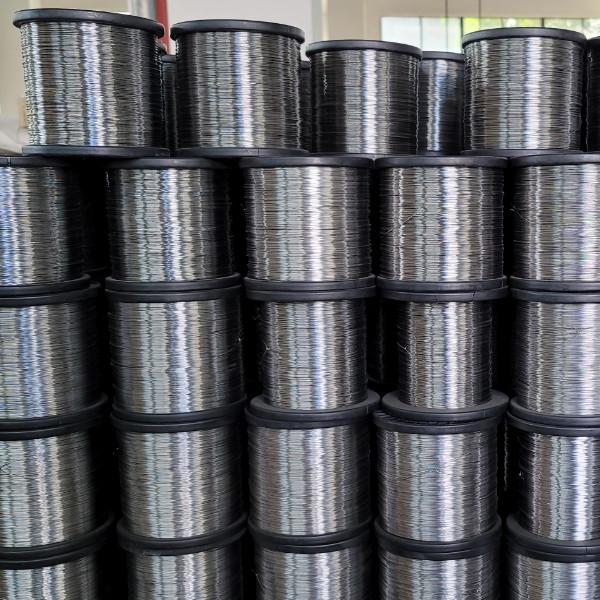

- The Form we could offer
 |
||
 |
||
 |
||
 |
||
 |
||
