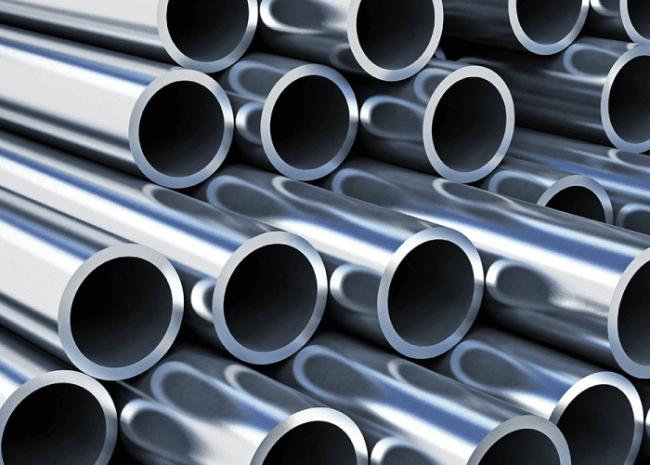

345 MPA Hastelloy B3 Seamless tube N10675 Hastelloy Material pipe
- Nickel Based corrosion resistance Alloy
HASTELLOY® B-3® alloy (UNS N10675) exhibits extremely high resistance to pure hydrochloric, hydrobromic, and sulfuric acids. Furthermore, it has greatly improved structural stability compared with previous B-type alloys, leading to fewer concerns during welding, fabrication, and service.
Like other nickel alloys (in the mill annealed condition), it is ductile, can be formed and welded, and resists stress corrosion cracking in chloride-bearing solutions. Also, it is able to withstand fluoride-bearing media and concentrated sulfuric acid, both of which result in damage to zirconium alloys.
HASTELLOY® B-3® alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and coated electrodes. It is used in numerous chemical process industry (CPI) applications, especially in the construction of reaction vessels for pure, reducing acid service.
-
Chemical Properties of Hastelloy B-3 Tubing
| Hastelloy Alloy | Ni | Cr | Co | Mo | FE | W | Mn | C | V | P | S | Si |
| B-3 | ≥65 | 1Max | 3Max | ≤28.5 | 1.5 Max | ≤3 | 1.0 Max | 0.01 Max | - | 0.1Max |
- Application
Some typical applications are:
- Strong oxidizers (such as ferric and cupric chlorides)
- Hot contaminated media (organic and inorganic)
- Chlorine
- Formic and acetic acids
- Acetic anhydride
- Seawater and brine solutions
contact us:
email:sales7@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm
Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
