8mm Dia K Type Thermocouple Wire And Thermocouple Extension Wire

Price Negotiable

Price: Negotiable

MOQ: 5

Delivery Time: 5-21 days

Brand: DLX

Product Description

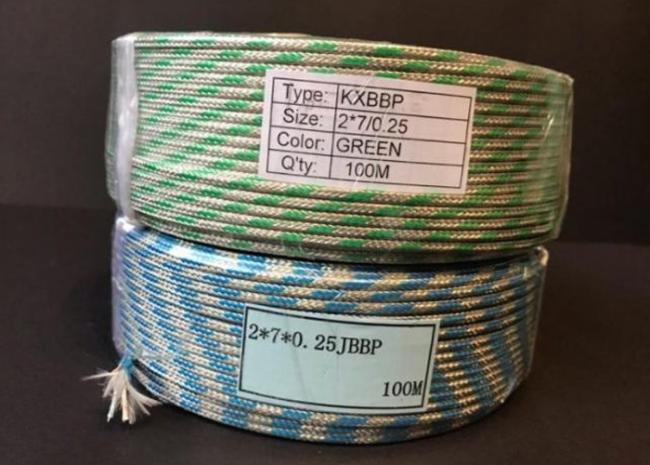

Hot Selling Thermocouple Extension Wire 8mm Dia K Type Thermocouple Wire And Thermocouple Extension Wire

Thermocouple Extension Wire

There are multiple types and grades of thermocouple wire.Each type of thermocouple wire has a specific combination of metal alloys.This combination is what defines the type of thermocouple.Thermocouple grade wire is used to manufacture thermocouple probes.Thermocouple grade wire is normally used for the junction and inside the stem sheath.

Thermocouple Wire

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)

Standards

ASTM	ANSI	IEC	DIN	BS	NF	JIS	GOST
(American Society for Testing and Materials) E 230	(American National Standard Institute) MC 96.1	(European Standard by the International Electrotechnical Commission 584)-1/2/3	(Deutsche Industrie Normen) EN 60584 -1/2	(British Standards) 4937.1041, EN 60584 - 1/2	(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324	(Japanese Industrial Standards) C 1602 - C 1610	(Unification of the Russian Specifications) 3044

Detailed Parameter of thermocouple wire

Working Temperature Range

Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

Thermocouple No. indexing	Compensation wire type	Usag Classification	Measuring junction temperature / ℃	standard EMF value/μV	Precision grade		General grade
Thermocouple No. indexing	Compensation wire type	Usag Classification	Measuring junction temperature / ℃	standard EMF value/μV	Tolerance μV	Thermal EMF range μV	Tolerance μV	Thermal EMF range μV
SorR	SC or RC	G	100	646	±30	616~676	±60	586~706
		H	100	646	-	-	±60	586~706
			200	1 1441	-	-		1.381~1 501

K	KX,KCA	G	-25	-968	±40	-924~-1 012	±80	-880~-1 056
	or KCB	G	100	4 096	±40	4 052~4 140	±80	4 008~4 184
		H	-25	-968	±40	-924~-1 012	±88	-880~-1 056
			100	4 096		4 052~4 140		4 008~4 184
			200	8 138		8 094~8 182		8 050~8 226
N	NX or NC	G	-25	-646	±43	-603~-689	±86	-560~-732
		G	100	2 774	±43	2 731~2 817	±86	2 688~2 860
		H	-25	-646	±43	-603~-690	±86	-560~-732
			100	2 774		2 731~2 817		2 688~2 860
			200	5 913		5 870~5 956		5 827~5 999
E	EX	G	-25	-1 432	±81	-1 351~-1 513	±138	-1 294~-1 570
		G	100	6 319	±81	6 238~ 6400	±138	6 181~6 457
		H	-25	-1 432	±81	-1 351~- 1513	±138	-1 294~-1 570
			100	6 319		6 238~6 400		6 181~6 457
			200	13 421		13 340~13 502		13 283~13 559
J	JX	G	-25	-1 239	±62	-1 177~-1 301	±123	-1 116~-1 362
		G	100	5 269	±62	5 207~5 331	±123	5 146~5 392
		H	-25	-1 239	±62	- 177~-1 301	±123	-1 116~-1 362
			100	5 269		5 207~5 331		5 146~5 392
			200	10 779		10 717~10 841		10 656~10 902
T	TX	G	-25	-940	±30	-910~-970	±60	-850~-1 000
		G	100	4 279	±30	4 249~4 309	±60	4 189~4 339
		H	-25	-940	±48	-892~-988	±90	-850~-1 030
			100	4 279		4231~4 327		4 189~4 369
