NiTi Alloy Nitinol Tube 1.2*1.0*1000 For Sales
NiTi alloy Nitinol tube 1.2*1.0*1000 for sales
What is NiTiNol alloy.
Nitinol is a kind of special unique material. No other material exhibits the mechanical shape memory superelasticity and the thermal shape memory effects. Fields of applications of Nitinol are peripheral stents, cardio stents and other medical devices for the human body. The name for the alloys composing it (Ni-nickel and Ti-titanium), along with the laboratory where it was discovered (the Naval Ordnance Laboratory), nitinol is also widely used in the aerospace, energy and industrial sectors.
Part of what makes nitinol invaluable is its ability to return to its original structure and shape once a stress is removed, all without substantial deformation. This remarkable characteristic stems from nitinol’s reversible solid-state phase transformation, known as martensitic transformation. Nitinol is also highly biocompatibile, resisting corrosion in the human body, and has been proven safe in vascular, soft tissue and orthopedic applications.

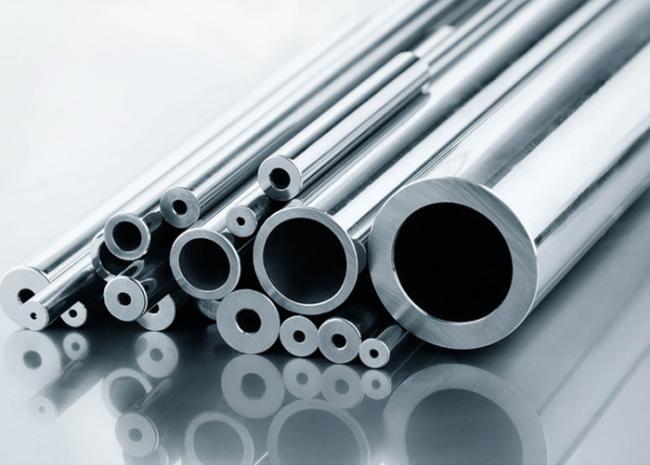

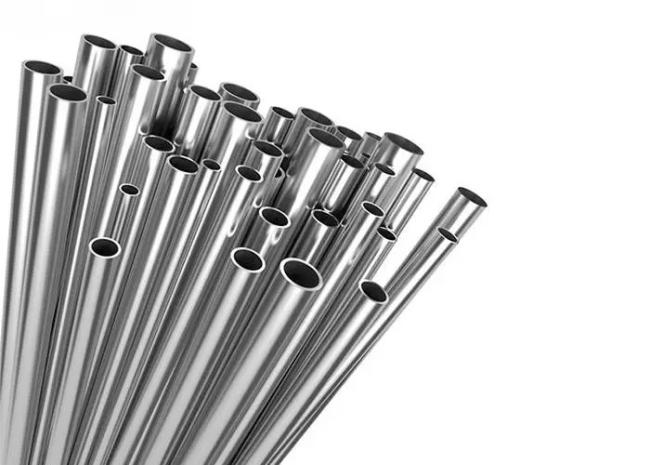

NiTiNol Tube:
Our Nitinol tubes with the mechanical properties, requested tolerances and appropriate surface quality for stent use. All our Niti tubes are made according to customers specifications.
Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire Nickel welding wire
Chemical Properties of NiTiNol Tube
el Welding Wire Nickel W
| Component | Nickel | Cobalt | Iron | Carbon | Nioium | Copper | Chromium | Oxygen + Nitrogen | Hydrogen | Titanium |
| wt % | 54,50-57,00 | max. 0,050 | max. 0,050 | max. 0,050 | max. 0,025 | max. 0,010 | max. 0,010 | max. 0,050 | max. 0,005 | balance |
elding Wire Nickel Welding Wire Nickel Welding Wire
Mechanical / Superelastic Tubes Properties
| Ultimate Tensile Strength | Fracture Elongation | Loading Plateau Stress (at 3% strain) | Permanent Set (after 6% strain) | Austenite Finish Temperature(Af) |
| min. 1000 MPa | min. 10 % | min. 380 MPa | max. 0,3 % | max. 15 °C |
Physical Tube Properties
| Melting Point | Density | Specific el. Resistivity | Coefficient of Thermal Expansion (CTE) | Modulus of Elasticity |
| 1310 °C | 6,5 g/cm3 | 82 μΩcm | 11×10-6 °K | 41-75 GPa |
CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.
