Certified 7kW to 22kW Home Wall-mounted EV Charging Station with Type 2/GBT Interface and IP54/IK08 Protection

1.Quickly & safely charger 11kW /22kW of output power. This product is an efficient and versatile 11KW  Ev Charger Type1/Type2/GBT Charging Plug, capable of charging electric vehicles (EVs) from various manufacturers quickly and safely.

2.Fashion design with upgraded wheels, featuring a built-in bypass function and fast charging capabilities, allowing you to charge 1 to 4 EVs simultaneously. The product has a compact and portable design, complete with upgraded wheels and a built-in bypass function, enabling you to charge up to 4 EVs simultaneously.

3.Burn-free IP65 water and dust-resistant, Flame Retardant materials, and 10 feet long power cord with power factor correction & zero-interference. The product boasts a high level of durability and protection with an IP65 water and dust-resistant body, flame and burn-resistant materials, and a 10-foot-long power cord with power factor correction and zero-interference features.

4.Support Type1/Type2/GB/T fast-charging, and synchronous WIFI and Bluetooth capabilities, you can access real-time charging status via the app or voice assistant. The product is compatible with Type1/Type2/GB/T fast-charging and supports real-time monitoring via the RUIVANDA app or voice assistant, allowing convenient access to charging information.

5.High-end smart portable charger with a 2.4-inch TFT color screen, powerful charging capabilities, and simple operation. This smart portable charger offers a 2.4-inch TFT color screen, providing clear and easy-to-read data, and the high-performance charging capabilities coupled with user-friendly operation ensure an efficient and smooth charging process.

Shenzhen Huinengzhi Technology Co., Ltd. specializes in the research, development, and production of charging piles. Since its inception in 2014, the company has been committed to exploring advanced charging technologies and manufacturing charging stations for AC and DC power sources. Our comprehensive product range covers various charging station solutions, as well as flexible software and hardware development and customization services. We are dedicated to fostering strategic partnerships with clients to ensure seamless business operations and maximize efficiency.

Q1. Who are we?

A: Our company " Shenzhen Huinengzhi Technology"

10+ Years Dedicated EV Charger Manufacturer (Established in 2014).

Over 1000 units deployed across Europe, South America, and Asia.

Independent Hardware and Software R&D with self-developed SECC controllers.

Q2. Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped

Q3.what can you buy from us?
A: AC &DC EV charging pile

Q4. Can this 7kW charger be managed by a third-party white-label software platform?

A: Yes. With full OCPP 1.6J compliance, the charger allows operators to change the WebSocket URL via a local configuration web page or app, connecting instantly to any third-party CMS for billing, user authorization, and firmware OTA updates.

Q5: What are the installation requirements for a 7kW AC charging station?

A: A 7kW AC charger requires a single-phase 230V AC power supply with a current of 32A. It is highly recommended to install a dedicated circuit breaker (Type B RCD or Type A + DC 6mA protection) to ensure electrical safety.

Q6: Can a 7kW AC charger be installed at home?

A: Yes. A 7kW AC charger is the most popular choice for residential installations, as most household electrical grids can support a 32A single-phase load without requiring expensive grid upgrades.

Q7: Is a 7kW AC charger compatible with all electric vehicles?

A: Yes, it is compatible with almost all modern EVs and plug-in hybrids (PHEVs). However, the actual charging speed will be limited by the vehicle’s maximum onboard charger capacity (e.g., if a PHEV only accepts 3.5kW, it will charge at 3.5kW even when connected to a 7kW charger).

Q8: What charging interface standards do these chargers support?

A: Our charging stations can be configured with various global connector standards:

AC Charging: Type 2 (Europe), Type 1 (North America), GB/T (China).

DC Charging: CCS Combo 2 (Europe), CCS Combo 1 (North America), CHAdeMO (Japan), GB/T (China), and NACS (Tesla standard).

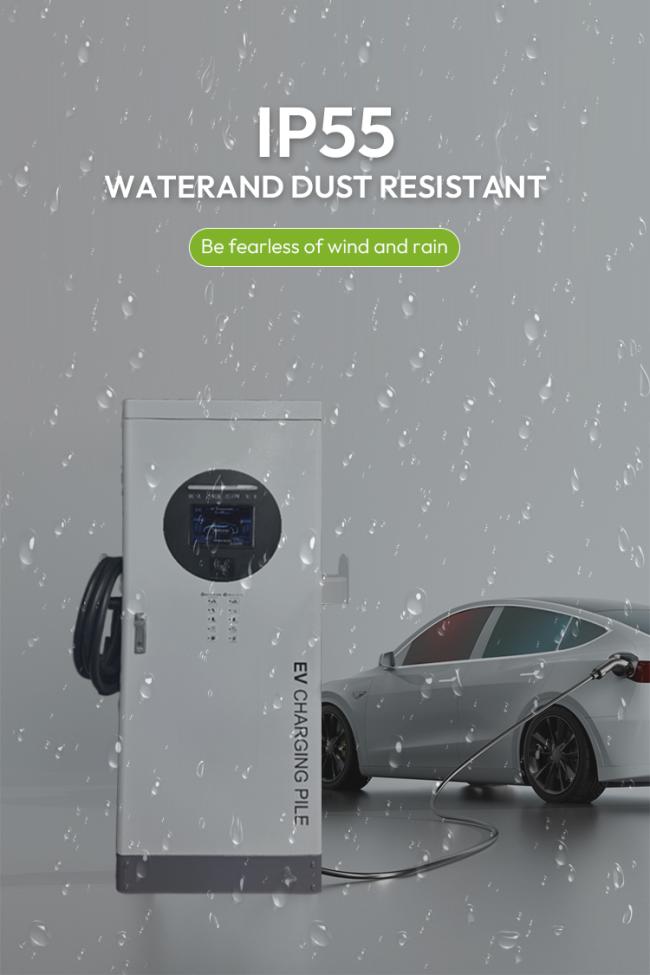

Q9: Are these chargers safe to use in the rain or extreme weather?

A: Yes. Our chargers are designed with high weatherproof ratings (typically IP54 or IP55 for outdoor use). They feature multiple safety protections, including over-current, over-voltage, short-circuit, leakage, and lightning protection.

Q10: Can I custom my LOGO?

Answer: Yes. You can not only custom LOGO, but also color, cable, enclosure box and carton. Just contact us if you have special needs. We accept full customization for Appearance/Software/Functions/ Accessories/Charging Standards/Packaging etc.

Q11: How long to fully charge a car?

To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
