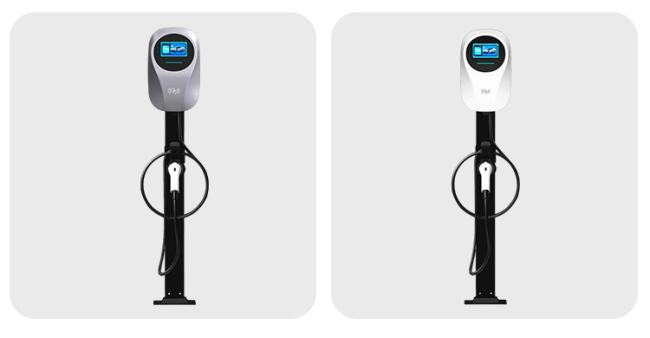

Tuya APP Control Smart EV Charging Station with IP65 Waterproof Rating and 7kW 11kW 22kW Power Options
-|

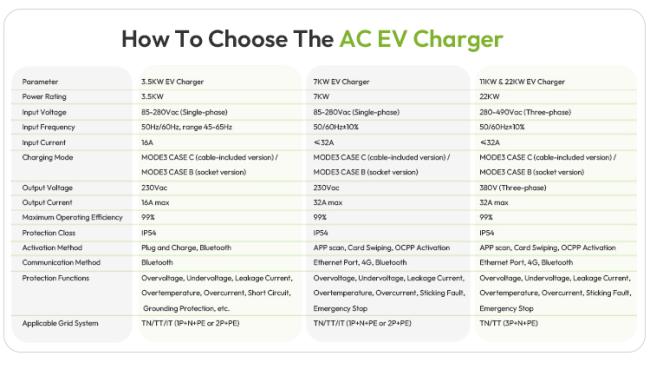

Parameter |
Specification |
|
Max Power |
7kW (32A) |
|
Voltage |
220V - 240V AC |
|
Communication |
Wi-Fi / Bluetooth / RFID/4G/Ethernet optional |
|
Protocol |
OCPP1.6J |
|
Connector |
Type 2 (Mennekes)/SAE J1772 (Type 1)/GB/T 20234 |
|
Cable length |
5meter(UL/TPU) |
|
Standard |
IEC 62196-2 IEC 61851-1 |
|
Protection |
IP54 / IK08 |
This commercial-grade 7kW 32A AC EV Charger is designed for high-density residential parking, commercial workplaces, and fleet depots. It solves three critical points for overseas operators:
Grid Capacity Limits: Delivers maximum single-phase charging speed 7kw 32A on standard 230v connections without requiring expensive three-phase grid upgrades.
Logistics & Installation Costs: The ultra-compact structural design reduces ocean freight volume by 30%, maximizing pallet loading efficiency and lowering shipping costs per unit.
Interoperability & Lock-in: Fully open OCPP 1.6J (JSON) protocol ensures seamless integration with any standard third-party Central Management System (CMS), preventing software lock-in.
Compatiable with 95% New Energy Vehicles in market like BYD, GWM, VinFast, VGo
Compliance & Certifications
Electrical Safety: Certified in compliance with IEC 61851-1:2017 (Electric vehicle conductive charging system) and IEC 61851-21-2:2018 (EMC requirements).
Regional Market Access: Standard configurations meet European CE (LVD/EMC/RED) marks, Australian RCM guidelines, and Indian BIS component safety thresholds.
Upstream Supply Chain Integrity: The internal switching components utilize industrial-grade MCCB protection, and all structural plastics are UL94 V-0 flame retardant rated.
1.Portable: The Portable EV Charger is a compact and easy-to-use device, perfect for traveling or charging on-the-go.
2.Customizable Length: With a cable length of 5m, the Portable EV Charger can be tailored to your specific charging needs.
3.High Power: Capable of delivering up to 3.5KW of power, this charger provides quick and efficient charging for your electric vehicle.
4.LED Indicator: The LED display on the Portable EV Charger offers a clear view of charging status, providing peace of mind during charging.
5.European plugs: This device comes with a European 16A plug, making it compatible with most European power outlets.

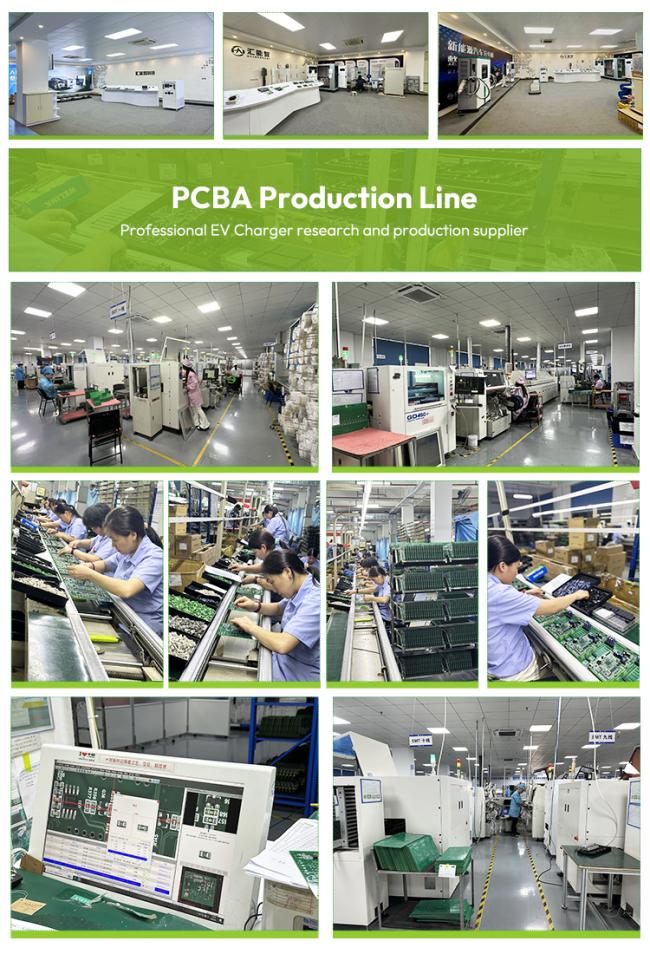

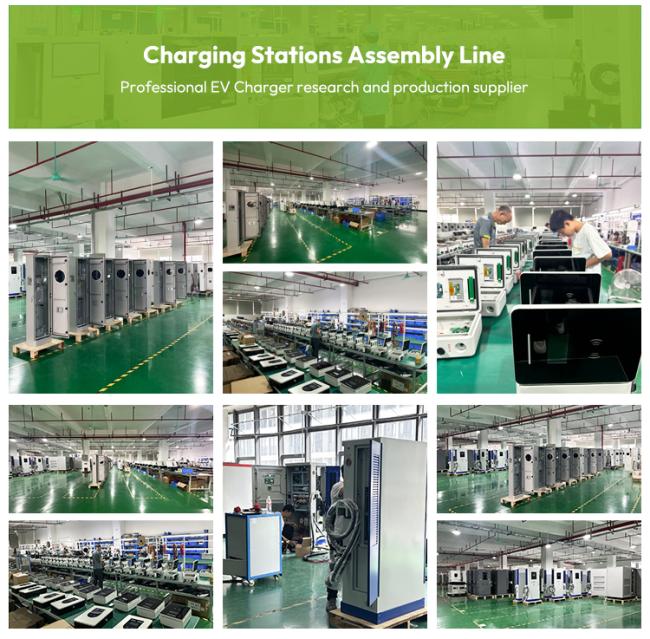

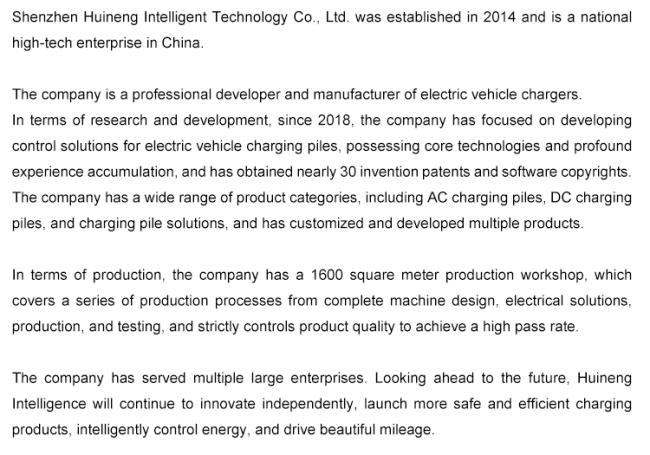

Shenzhen Huinengzhi Technology Co., Ltd. specializes in the domain of charging pile research and development. Since the inception of the company in 2014, we have been committed to advancing charging technology through our expertise in PCBA production and AC/DC charging station manufacturing. Our comprehensive suite of products, coupled with tailored software and hardware development services, provides the perfect foundation for a fruitful collaboration. Join forces with us to witness the synergy that ensues from a seamless integration of cutting-edge technology and innovation.

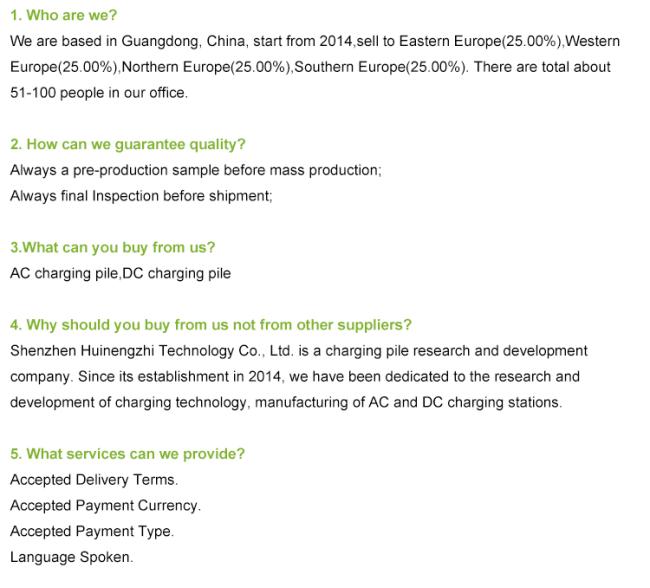

Q1. Who are we?
A: Our company " Shenzhen Huinengzhi Technology"
10+ Years Dedicated EV Charger Manufacturer (Established in 2014).
Over 1000 units deployed across Europe, South America, and Asia.
Independent Hardware and Software R&D with self-developed SECC controllers.
Q2. Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
Q3.what can you buy from us?
A: AC &DC EV charging pile
Q4. Can this 7kW charger be managed by a third-party white-label software platform?
A: Yes. With full OCPP 1.6J compliance, the charger allows operators to change the WebSocket URL via a local configuration web page or app, connecting instantly to any third-party CMS for billing, user authorization, and firmware OTA updates.
Q5: What are the installation requirements for a 7kW AC charging station?
A: A 7kW AC charger requires a single-phase 230V AC power supply with a current of 32A. It is highly recommended to install a dedicated circuit breaker (Type B RCD or Type A + DC 6mA protection) to ensure electrical safety.
Q6: Can a 7kW AC charger be installed at home?
A: Yes. A 7kW AC charger is the most popular choice for residential installations, as most household electrical grids can support a 32A single-phase load without requiring expensive grid upgrades.
Q7: Is a 7kW AC charger compatible with all electric vehicles?
A: Yes, it is compatible with almost all modern EVs and plug-in hybrids (PHEVs). However, the actual charging speed will be limited by the vehicle’s maximum onboard charger capacity (e.g., if a PHEV only accepts 3.5kW, it will charge at 3.5kW even when connected to a 7kW charger).
Q8: What charging interface standards do these chargers support?
A: Our charging stations can be configured with various global connector standards:
AC Charging: Type 2 (Europe), Type 1 (North America), GB/T (China).
DC Charging: CCS Combo 2 (Europe), CCS Combo 1 (North America), CHAdeMO (Japan), GB/T (China), and NACS (Tesla standard).

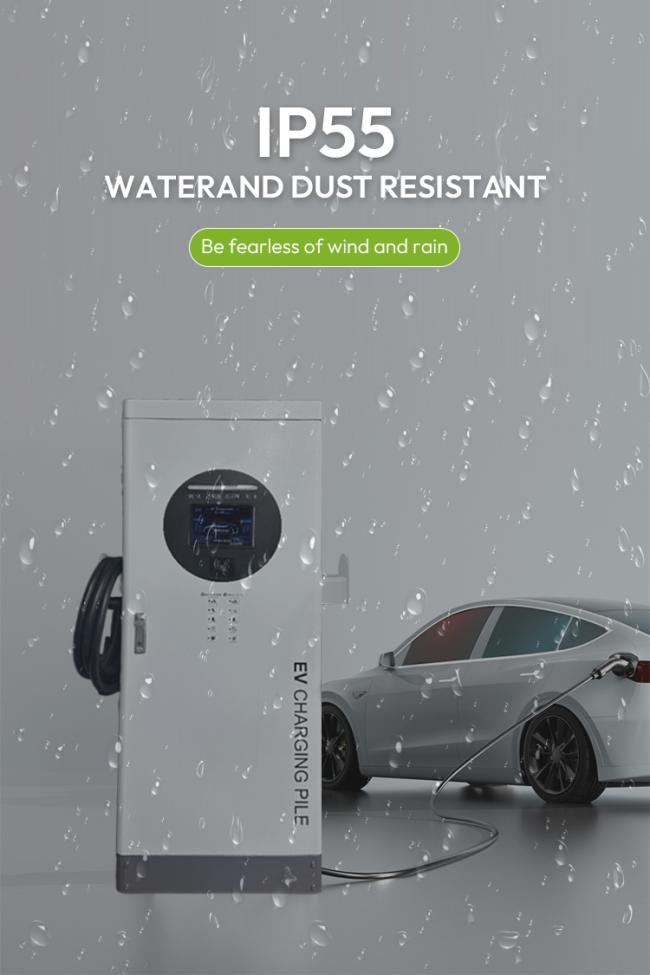

Q9: Are these chargers safe to use in the rain or extreme weather?

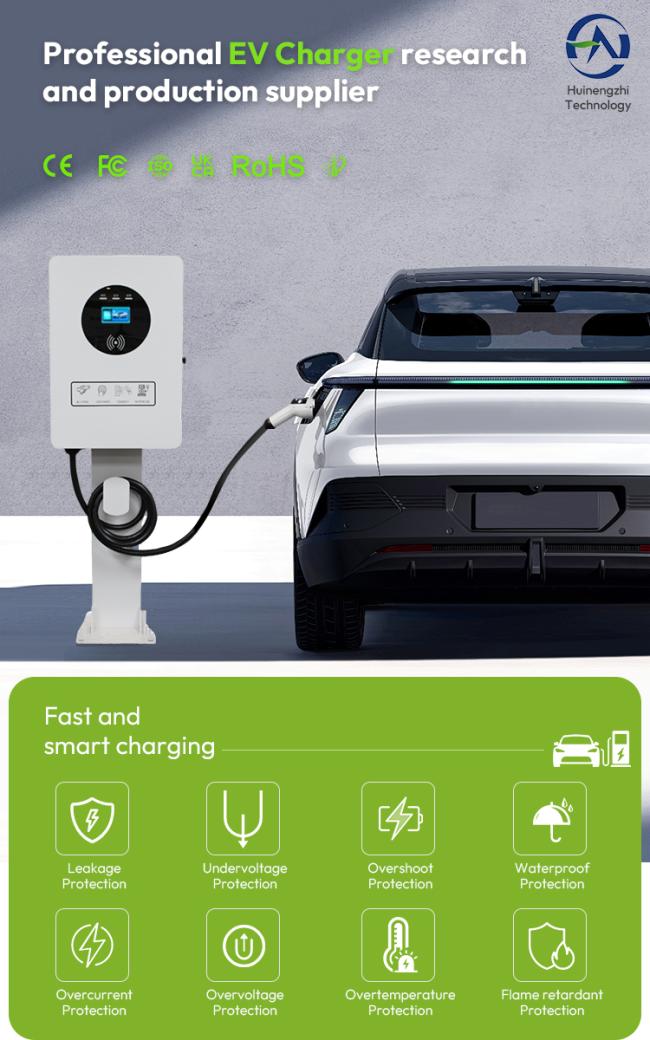

A: Yes. Our chargers are designed with high weatherproof ratings (typically IP54 or IP55 for outdoor use). They feature multiple safety protections, including over-current, over-voltage, short-circuit, leakage, and lightning protection.
Q10: Can I custom my LOGO?
Answer: Yes. You can not only custom LOGO, but also color, cable, enclosure box and carton. Just contact us if you have special needs. We accept full customization for Appearance/Software/Functions/ Accessories/Charging Standards/Packaging etc.
Q11: How long to fully charge a car?
To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
