120kW Ultra Fast DC EV Charger Dual Gun Rapid Charging Hub for Commercial Fleet Stations
|
Product model |
XCEVC-WD-120KW-C |
XCEVC-WD160KW-C |
|
|
Product Specifications |
Rated Power |
120KW |
160KW |
|
Installation Method |
Vertical standing |
||
|
Line Layout |
Bottom-in and Bottom-out |
||
|
Equipment Size |
1800*850*550mm |
||
|
Input Voltage &Frequency |
380VAC±20% 50Hz/60Hz |
||
|
Input Current |
0-200A |
0-230A |
|
|
Output Voltage |
200VDC-1000VDC |
||
|
Output Current |
0-250A |
0-280A |
|
|
Cable Length |
5m |
||
|
Meas.Accuracy: |
Level 1.0 |
||
|
Electrical Specifications |
Current Limit |
≥110% |
|
|
Voltage Regulation Accuracy |
≤±0.5% |
||
|
Stabilized Current Precision |
≤±1% |
||
|
Ripple Factor |
≤±0.5% |
||
|
Efficiency |
≥95% |
||
|
Power Factor |
≥0.98(above 50%load) |
||
|
Harmonic content (THD) |
≤5%(above 50%load) |
||
|
Functional Design |
Interface Display |
7-inch high brightness color touch screen |
|
|
Charging Modes |
automatic/fixed battery /fixed amount/fixed time |
||
|
Charging Methods |
card swiping/code scanning/password |
||
|
Payment Methods |
swipe card/scan code /password |
||
|
Networking method |
Screen click/Ethernet/4G/ |
||
|
Safety Design |
Execution Standards |
GB/T20234,GB/T18487,GB/T27930,NB/T33008, NB/T33002,IEC61851-23,IEC62196,IEC61851-21-2 |
|
|
Safety Functions |
charging gun temperature detection,overvoltage protection,undervoltage protection,overload protection,short circuit protection,grounding protection,over temperature protection,low temperature protection,insulation monitoring protection,polarity reversal protection,lightning protection,emergency stop protection,leakage protection |
||
|
Environmental Indicators |
Working Temperature |
-20℃~+50℃ |
|
|
Working Humidity |
5%~95%without frost |
||
|
Working Altitude |
<2000m |
||
|
Protection Level |
IP54 |
||
|
Cooling Method |
air cooling |
||
|
Noise Control |
≤60dB |
||
|
MTBF |
100,000 hours |
||
























1.The EV Charger is designed for electric cars, supporting various output voltage levels from 200-750V and input voltage levels from 320-530V, ensuring compatibility and efficient charging.
2.CE ROHS ISO certified, this state-of-the-art product complies with international safety standards, ensuring reliable and secure operation.
3.The charger supports multiple plug types including CCS, catering to a wide range of electric vehicle models.
4.With an air-cooled design, this commercial-grade charger is built for durability and high performance in various environments.
5.As a retrofit/upgrade solution, the 120KW V2G EV Charger can be easily installed and integrated into existing charging infrastructure, enhancing overall charging capabilities and supporting rapid electrification.

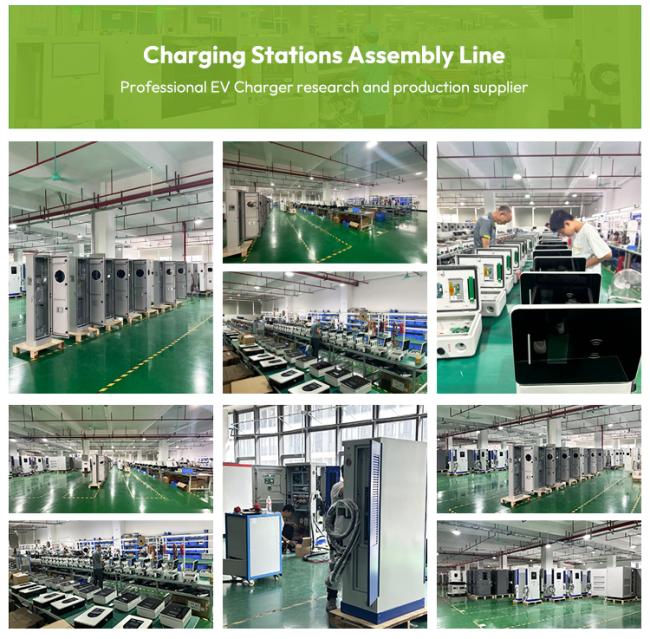

The Shenzhen Huinengzhi Technology Co., Ltd. specializes in conducting research and development activities for charging piles. Since the inception of the company in 2014, it has focused on the development of charging technology, production of printed circuit board assemblies, and manufacturing of AC and DC charging stations. The company is keen to promote cooperation and offers a comprehensive range of charging station products. Moreover, it provides software and hardware development and customization services to cater to the diverse requirements of its clients. If you are looking for a reliable partner with extensive expertise in charging pile technology, we invite you to join hands with us and unleash the power of our innovative solution.
