7.4kW Plug-and-Play EV Charger Wall Mount AC Charging Pile with 5m Wire for Residential Use
| European standard single-phase AC charging pile | ||
| Basic Parameters | Product name | AC Charging Pile |
| Maximum Power | 7KW | |
| Applicable Scenarios | Public operation/private charging | |
| Certificate | CE | |
| AC Input | Input Voltage | 85-280V |
| Input Frequency | 50-60HZ | |
| Input Phase | Single-phase | |
| AC Output | Output Voltage | 85-280V |
| Output Current | 3.5KW 16A,7.6KW 32A | |
| Output Power | 3.5KW 16A,7.6KW 32A | |
| Standby Power Consumption | Offline ≤ 5W; Online<10W | |
| Electric Energy Metering | Metering Chip | |
| Metering Accuracy | ≤ 2.0 class | |
| Interactive Functions |
Communication Method | 4G, Bluetooth, Cardswiping, Ethernet(optional) |
| Operation platform | OCPP1.6J | |
| Charging Method | Plug-and-Charge,Card-swiping, QR code Scanning, APP,Bluetooth etc. | |
| Display Method | LED + 4.3 inch square screen, LED+ no screen | |
| Start-stop and Payment |
No Network-connected Pile | Plug-and-Charge,Card-swiping Start-stop, Bluetooth Start -stop |
| Network-connected Pile | QR-code Scanning, Card-swiping, APP Start-stop | |

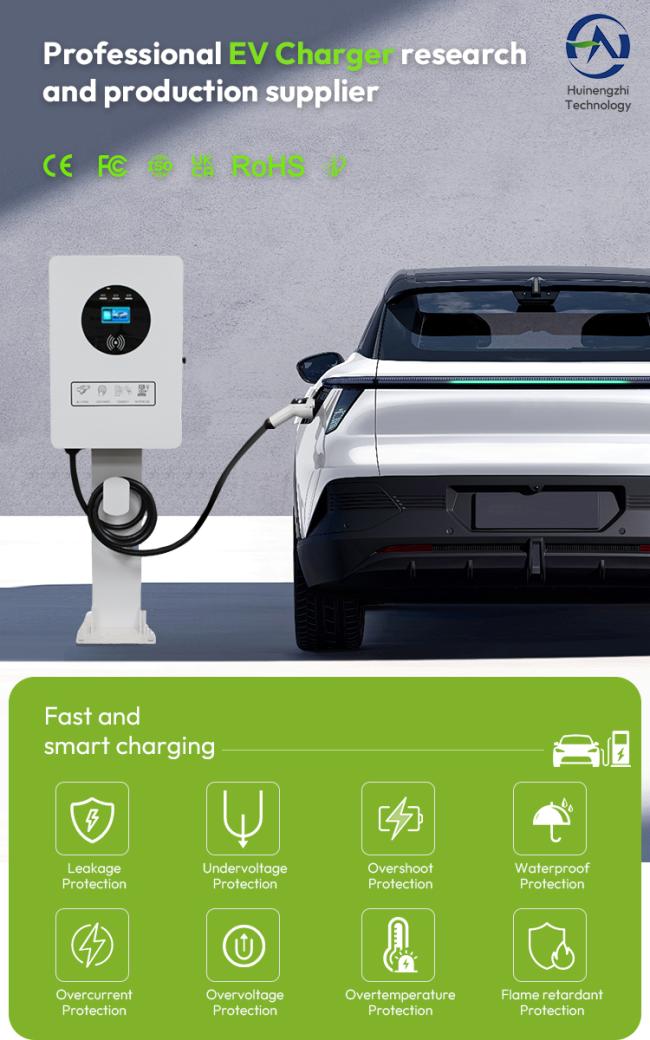

| Safety System | Leakage Protection | Standard A-type,Optional B type |
| Over-voltage Protection | Yes | |
| Under-voltage Protection | Yes | |
| Over-current Protection | Yes | |
| Grounding Protection | Yes | |
| Short-circuit Protection | Yes | |
| Over Temperature Protection | Yes | |
| Environmental Indicators |
Operating Temperature | -30°C -+ 55°C |
| Storage Temperature | -40°C-+85°C | |
| Environmental Humidity | ≤ 95% Non-condensing | |
| Applicable Locations | Outdoor/Indoor | |
| Other Feature | Enclosure Material | PC+ASA |

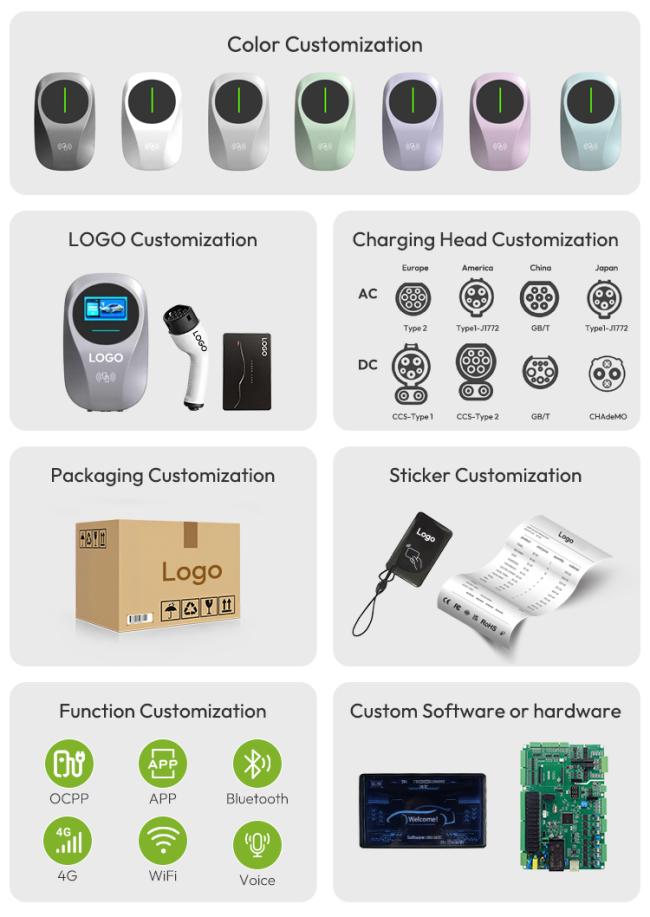

| Color | Black(Standard),White,Grey, Red, Green | |
| Cable Length | 18ft (5m) Standard(Accept customization) | |

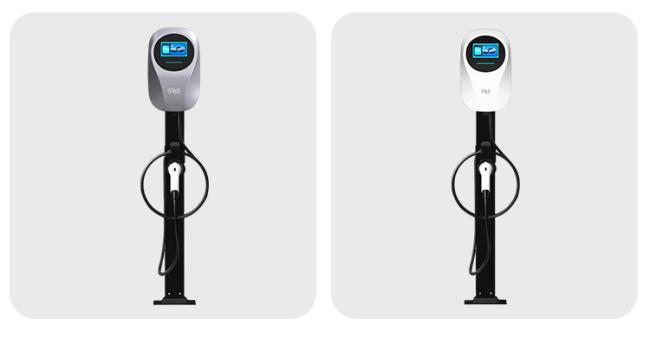

| Installation Method | Wall mounted / With column | |
This commercial-grade 7kW 32A AC EV Charger is designed for high-density residential parking, commercial workplaces, and fleet depots. It solves three critical points for overseas operators:
Grid Capacity Limits: Delivers maximum single-phase charging speed 7kw 32A on standard 230v connections without requiring expensive three-phase grid upgrades.
Logistics & Installation Costs: The ultra-compact structural design reduces ocean freight volume by 30%, maximizing pallet loading efficiency and lowering shipping costs per unit.
Interoperability & Lock-in: Fully open OCPP 1.6J (JSON) protocol ensures seamless integration with any standard third-party Central Management System (CMS), preventing software lock-in.
Compliance & Certifications
Electrical Safety: Certified in compliance with IEC 61851-1:2017 (Electric vehicle conductive charging system) and IEC 61851-21-2:2018 (EMC requirements).
Regional Market Access: Standard configurations meet European CE (LVD/EMC/RED) marks, Australian RCM guidelines, and Indian BIS component safety thresholds.
Upstream Supply Chain Integrity: The internal switching components utilize industrial-grade MCCB protection, and all structural plastics are UL94 V-0 flame retardant rated.

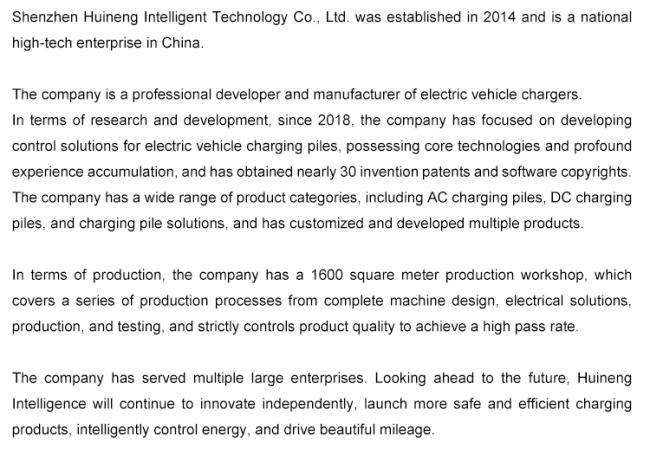

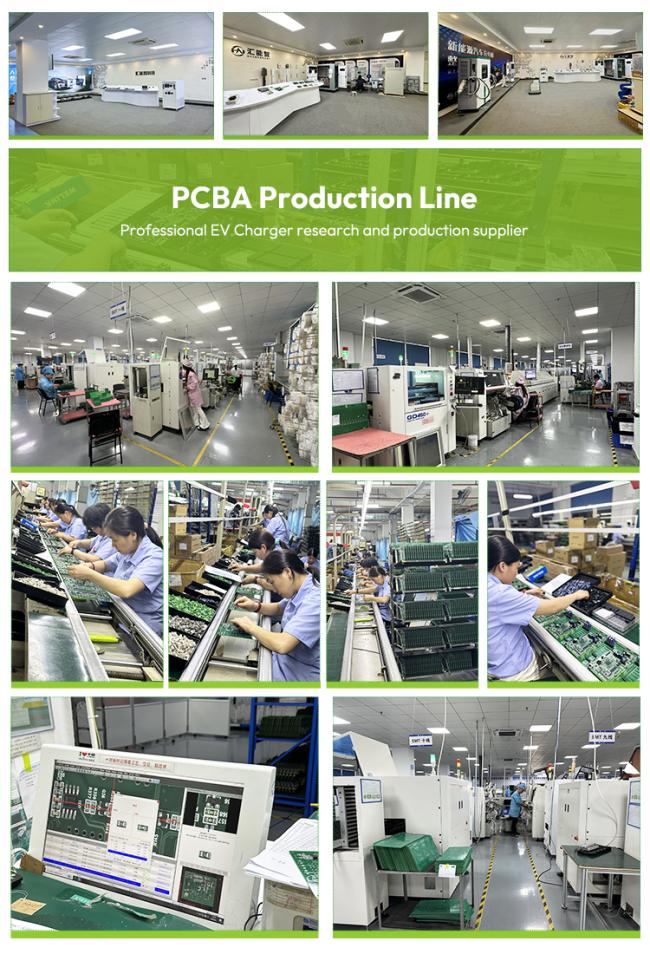

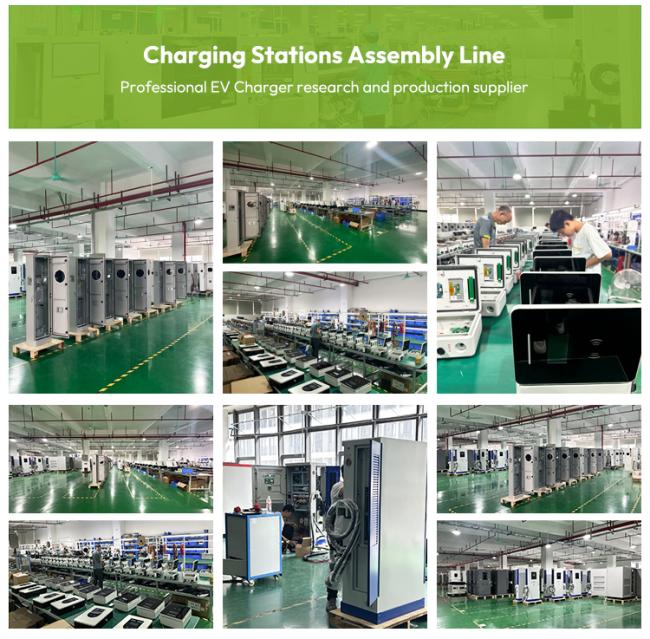

Shenzhen Huinengzhi Technology Co., Ltd. is a distinguished company specialized in the in-depth exploration of charging pile systems. Established in 2014, our primary mission is to fuel our research and development in charging technology, focusing on the production of PCBA and manufacturing of AC and DC charging stations. We advocate a professional, collaborative approach and encourage businesses to work in tandem with us. By offering a comprehensive range of charging station products alongside tailored software and hardware solutions, we strive to deliver the best possible experience. Our commitment to innovation and customer satisfaction sets us apart as a reliable partner in the field of charging station technology.

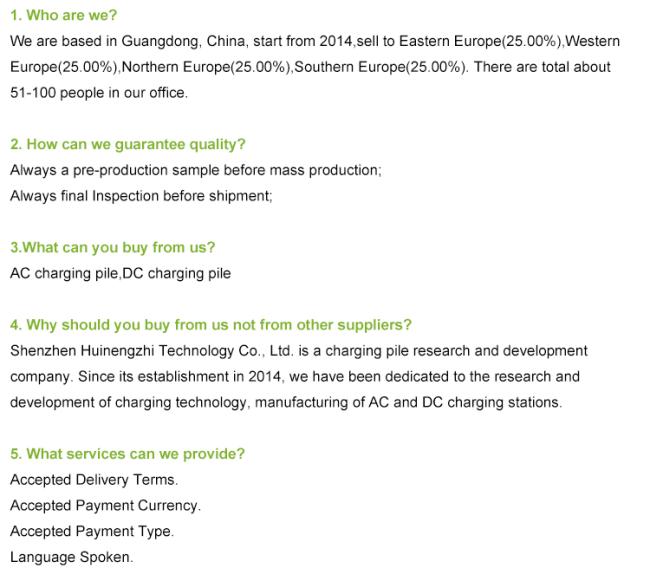

1. who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Europe(25.00%),Western Europe(25.00%),Northern Europe(25.00%),Southern Europe(25.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
AC charging pile,DC charging pile
4. why should you buy from us not from other suppliers?
Shenzhen Huinengzhi Technology Co., Ltd. is a charging pile research and development company. Since its establishment in 2014, we have been dedicated to the research and development of charging technology, manufacturing of AC and DC charging stations.
10+ Years Manufacturing Excellence: Developed by an established EVSE manufacturer (since 2014) with an in-house PCBA hardware and software R&D team.
Global Field Proven: Over 50,000+ units actively deployed across Europe, Southeast Asia, and South America.
