Customized IP65 Waterproof EV Charger Enclosure for 7KW 11KW Charging Stations with Customizable Color Options
| item | value |
| Place of Origin | China |
| Purpose | for manufacturing |
| Condition | New |
| Brand Name | Huinengzhi |

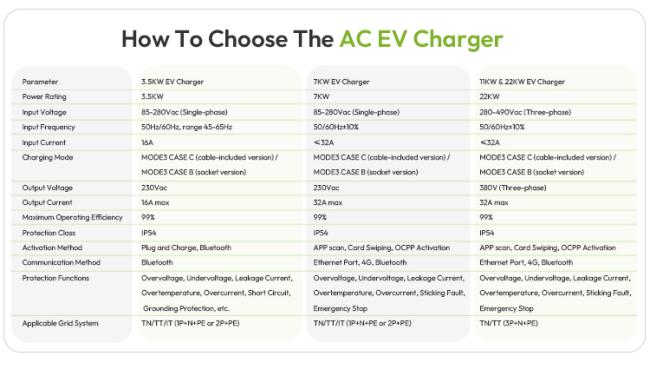

| European standard single-phase AC charging pile | ||
| Basic Parameters | Product name | AC Charging Pile |
| Maximum Power | 7KW | |
| Applicable Scenarios | Public operation/private charging | |
| Certificate | CE | |
| AC Input | Input Voltage | 85-280V |
| Input Frequency | 50-60HZ | |
| Input Phase | Single-phase | |
| AC Output | Output Voltage | 85-280V |
| Output Current | 3.5KW 16A,7.6KW 32A | |
| Output Power | 3.5KW 16A,7.6KW 32A | |
| Standby Power Consumption | Offline ≤ 5W; Online<10W | |
| Electric Energy Metering | Metering Chip | |
| Metering Accuracy | ≤ 2.0 class | |
| Interactive Functions |
Communication Method | 4G, Bluetooth, Cardswiping, Ethernet(optional) |
| Operation platform | OCPP1.6J | |
| Charging Method | Plug-and-Charge,Card-swiping, QR code Scanning, APP,Bluetooth etc. | |
| Display Method | LED + 4.3 inch square screen, LED+ no screen | |
| Start-stop and Payment |
No Network-connected Pile | Plug-and-Charge,Card-swiping Start-stop, Bluetooth Start -stop |
| Network-connected Pile | QR-code Scanning, Card-swiping, APP Start-stop | |
| Safety System | Leakage Protection | Standard A-type,Optional B type |
| Over-voltage Protection | Yes | |
| Under-voltage Protection | Yes | |
| Over-current Protection | Yes | |
| Grounding Protection | Yes | |
| Short-circuit Protection | Yes | |
| Over Temperature Protection | Yes | |
| Environmental Indicators |
Operating Temperature | -30°C -+ 55°C |
| Storage Temperature | -40°C-+85°C | |
| Environmental Humidity | ≤ 95% Non-condensing | |
| Applicable Locations | Outdoor/Indoor | |
| Other Feature | Enclosure Material | PC+ASA |
| Color | Black(Standard),White,Grey, Red, Green | |
| Cable Length | 18ft (5m) Standard(Accept customization) | |
| Installation Method | Wall mounted / With column | |
1.Customized IP65 Waterproof EV Charger Station Wallbox Enclosure: This product is a customized AC EV Charger Case designed for 11KW charging station assemblies. It is made of durable materials and provides a waterproof level of IP65, ensuring the safe and reliable charging of electric vehicles in various weather conditions.
2.Wall-mounted or Floor-mounted Installation: The unit is available in both wall-mounted and floor-mounted installation options, providing flexibility in installation choices and catering to diverse location requirements.
3.Easy Assembly and Disassembly: The product is designed with an easy-to-assemble and disassemble structure, reducing the complexity and time required for installation and maintenance.
4.Tempered Glass + Flame Retardant PC+ABS Construction: Made of tempered glass and flame retardant PC+ABS materials, this charger case is durable and resistant to burn, scratches, and impacts, ensuring long-term usage and a high level of safety.
5.Customizable Color Options: Offered in gray, black, or OEM color options, the case can be tailored to meet specific branding or visual preferences. The product also comes with a glass touch screen and RFID verification for added convenience and security.
Established in 2014, Shenzhen Huinengzhi Technology Co., Ltd is an acclaimed charging pile research and development firm that specializes in intelligent charging pile products and provides comprehensive charging solutions. Our primary focus lies in the development of charging technologies, PCBA production, and the manufacture of AC and DC charging piles. We are dedicated to fostering a harmonious, competitive, and sustainable charging network, with a commitment to technological innovation and operational excellence. Shenzhen Huinengzhi Technology Co., Ltd is a leading provider of C2C, B2B, and industry-based solutions, featuring cutting-edge charging pile products. Our offerings encompass hardware, software, and equipment development, as well as intelligent charging station solutions. Our team of experienced professionals boasts expertise in the domain and a strong commitment to unwavering customer satisfaction. Welcome to join our esteemed league of business partners and embark on a Shared Future and Smart Future journey together.

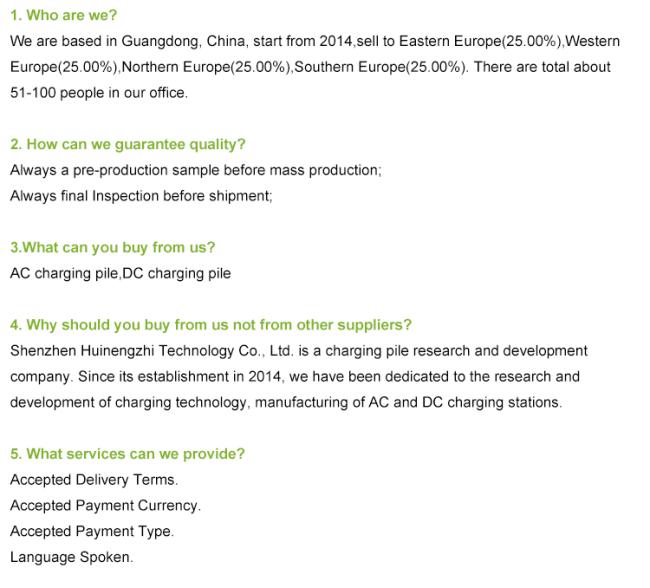

1. who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Europe(25.00%),Western Europe(25.00%),Northern Europe(25.00%),Southern Europe(25.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
AC charging pile,DC charging pile
4. why should you buy from us not from other suppliers?
Shenzhen Huinengzhi Technology Co., Ltd. is a charging pile research and development company. Since its establishment in 2014, we have been dedicated to the research and development of charging technology, manufacturing of AC and DC charging stations.
5. what services can we provide?
Accepted Delivery Terms: -;
Accepted Payment Currency: -;
Accepted Payment Type: -;
Language Spoken: -
