Commercial-Grade 120kW Ultra Fast Charging Station with Intelligent Temperature Control and RFID Smart Access
|
Power Rating |
120kW / 160kW / 180kW / 240kW |
|
Output Voltage |
150V - 1000V DC |
|
Gun Numbers |
Dual Connector (CCS2/CCS1/CHAdeMO/GBT) |
|
Display |
10 inch LCD Touch Screen |
|
Input Voltage |
400V AC ± 15% |
|
Network |
4G / Ethernet / OCPP 1.6J |
|
OEM/ODM |
Support |
[Key Technical Features]
- Dual Connector Flexibility: Choose between CCS1, CCS2, CHAdeMO, or GBT. Supports simultaneous charging for two vehicles.
- 95%+ Peak Efficiency: High-frequency switching technology reduces energy loss and operational costs.
- Secure Payment & Access: Integrated RFID card reader, NFC, and optional credit card terminal (POS) compatibility.

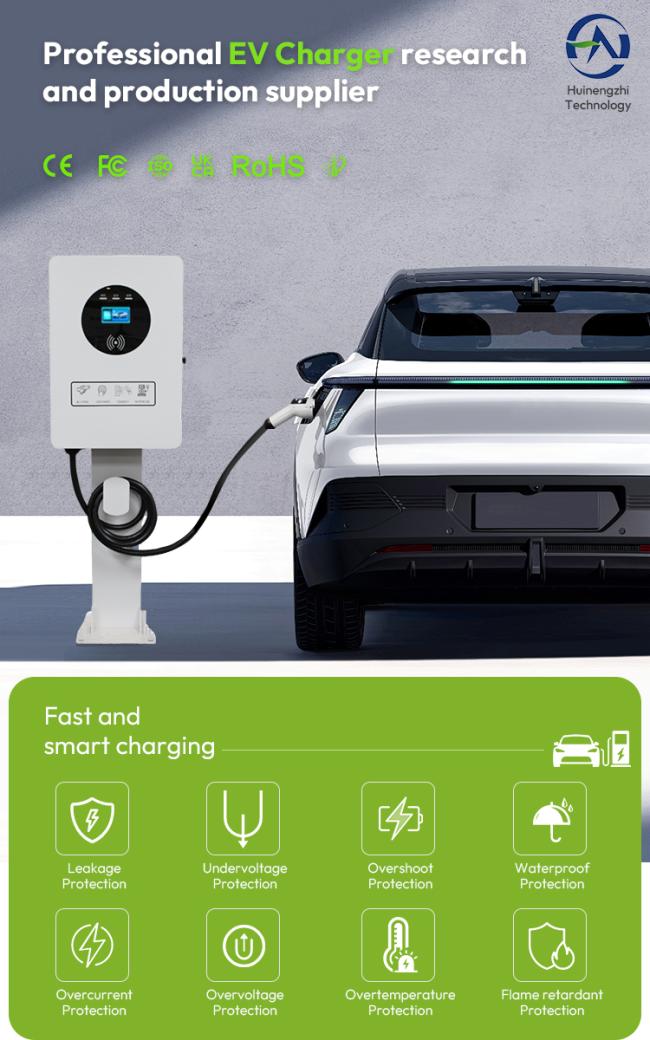

- Active Safety Suite: Comprehensive protection including Insulation Monitoring, Surge Protection, Over-temperature, and Emergency Stop functionality.
- Connectivity: Built-in 4G LTE, Ethernet, and Wi-Fi for real-time data syncing with your CPO dashboard.
[Target Application Scenarios]
- Highway Service Areas: Rapid charging for long-distance travel.
- Commercial Fleet Hubs: Overnight or mid-day fast charging for electric vans, trucks, and buses.
- Retail & Hospitality: Attract high-value customers at malls, hotels, and restaurants.
- Public Parking Infrastructure: High-turnover charging for urban dwellers and ride-sharing fleets.
[Service & Support]
- Remote Diagnostics: 90% of issues resolved via OTA (Over-the-Air) updates.
- Modular Design: Easy field service and power capacity expansion.
- Warranty: Standard 2-year warranty with optional extension and maintenance packages.
- Customization: OEM/ODM services available for branding and custom cabinet colors.
1. Smart Dynamic Power Sharing: For dual-gun configurations, our intelligent controller automatically allocates power between two vehicles based on their State of Charge (SoC), maximizing throughput and reducing wait times.
2. Ultra-Wide Voltage Range (200V - 1000V): Future-proof design compatible with current 400V battery systems and next-generation 800V high-voltage platforms (e.g., Porsche Taycan, Hyundai IONIQ 5, Electric Buses).
3. 3.Full Backend Integration: Native support for OCPP 1.6J(upgradeable to 2.0.1). Easily connect to any third-party management platform for billing, remote diagnostics, and user management.
4. Ruggedized for Public Use: IP54-rated weatherproof enclosure and IK10 impact resistance. Features a vandal-proof 7-inch or 10-inch LCD touch screen with sunlight-readable display.

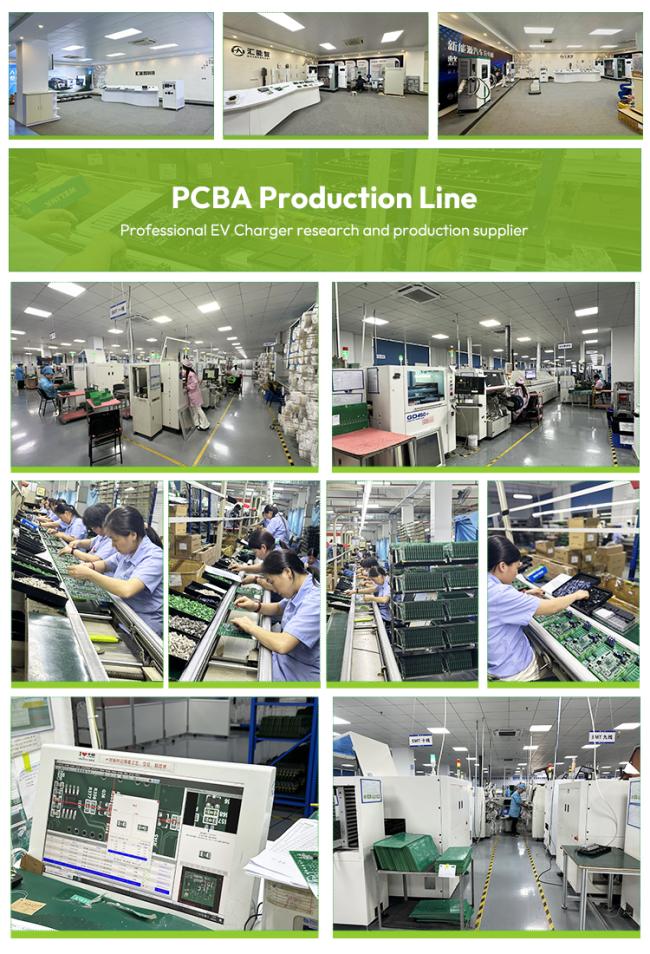

Shenzhen Huinengzhi Technology Co., Ltd. is a prestigious charging pile research and development enterprise, specialized in the field of charging technology development, PCBA production, and AC and DC charging station manufacturing. Established in 2014, the company has consistently focused on technological advancements and product innovation. We are keen on collaborations with interested parties, offering a comprehensive range of charging station solutions. Our services encompass software and hardware development, as well as customization to suit unique requirements. Trust us to be your ideal partner in the world of charging technologies.
Q1. who are we?
A: Our company " Shenzhen Huinengzhi Technology"
10+ Years Dedicated EV Charger Manufacturer (Established in 2014).
Over 1000 units deployed across Europe, South America, and Asia.
Independent Hardware and Software R&D with self-developed SECC controllers.
Q2. Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
Q3.what can you buy from us?
A: AC &DC EV charging pile
Q4. why should you buy from us not from other suppliers?
A: Shenzhen Huinengzhi Technology Co., Ltd. is a charging pile research and development company. Since its establishment in 2014, we have been dedicated to the research and development of charging technology, manufacturing of AC and DC charging stations.
Q5. Can this 3.5kw 7kW charger be managed by a third-party white-label software platform?
A: Yes. With full OCPP 1.6J compliance, the charger allows operators to change the WebSocket URL via a local configuration web page or app, connecting instantly to any third-party CMS for billing, user authorization, and firmware OTA updates.
Q6: What are the installation requirements for a 3.5kw 7kW AC charging station?
A: A 3.5kw 7kW AC charger requires a single-phase 230V AC power supply with a current of 16A 32A. It is highly recommended to install a dedicated circuit breaker (Type B RCD or Type A + DC 6mA protection) to ensure electrical safety.
Q7: Can this charger adjust the current?
A: Yes can adjust the current 8A 10A 13A 16A 32A.
Q1. Who are we?
A: Our company " Shenzhen Huinengzhi Technology"
10+ Years Dedicated EV Charger Manufacturer (Established in 2014).
Over 1000 units deployed across Europe, South America, and Asia.
Independent Hardware and Software R&D with self-developed SECC controllers.
Q2. Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
Q3.what can you buy from us?
A: AC &DC EV charging pile
Q4: What charging interface standards do these chargers support?
A: Our charging stations can be configured with various global connector standards:
AC Charging: Type 2 (Europe), Type 1 (North America), GB/T (China).
DC Charging: CCS Combo 2 (Europe), CCS Combo 1 (North America), CHAdeMO (Japan), GB/T (China), and NACS (Tesla standard).
Q5: Are these chargers safe to use in the rain or extreme weather?

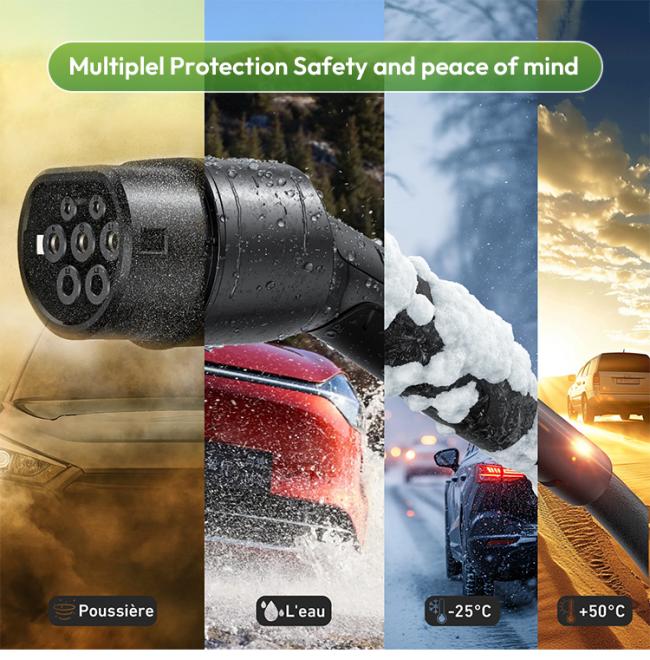

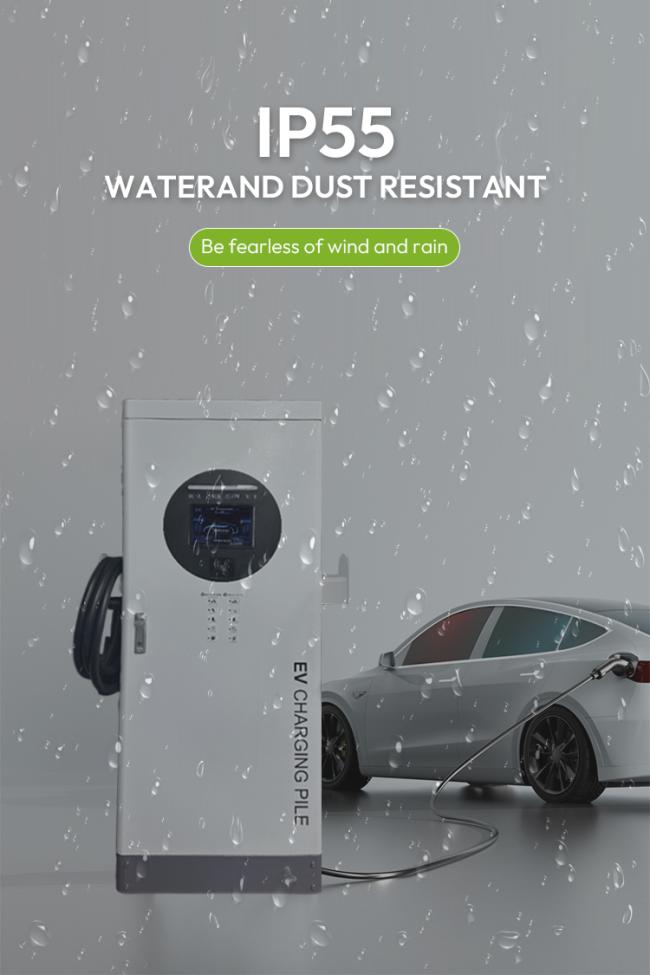

A: Yes. Our chargers are designed with high weatherproof ratings (typically IP54 or IP55 for outdoor use). They feature multiple safety protections, including over-current, over-voltage, short-circuit, leakage, and lightning protection.
Q6: Can I custom my LOGO?

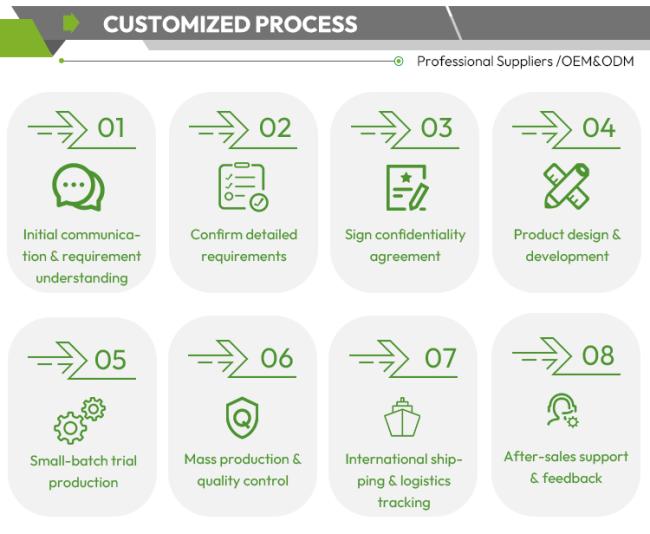

Answer: Yes. You can not only custom LOGO, but also color, cable, enclosure box and carton. Just contact us if you have special needs. We accept full customization for Appearance/Software/Functions/ Accessories/Charging Standards/Packaging etc.
