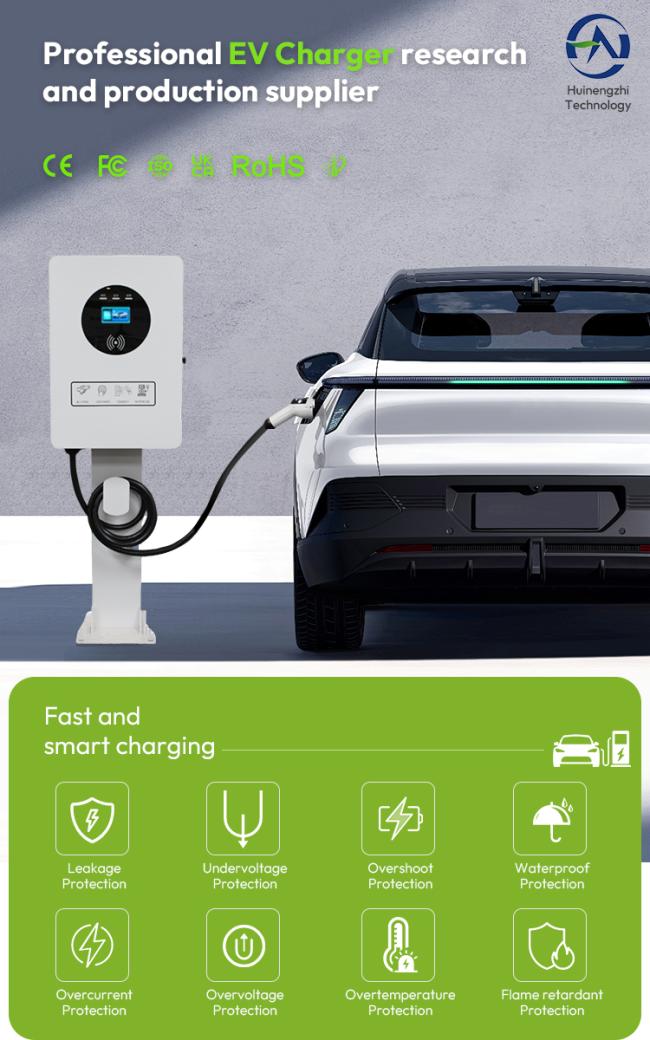

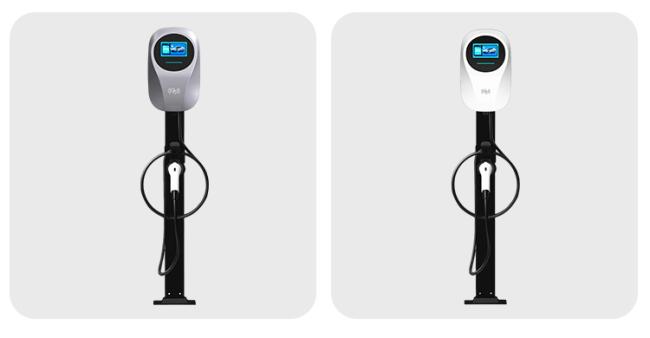

7kW 32A IEC 62196-2 Type 2 EV Charging Station with OCPP1.6J and 5m Gun Cable 220V
|
Parameter |
Specification |
|
Max Power |
7kW (32A) |
|
Voltage |
220V - 240V AC |
|
Communication |
Wi-Fi / Bluetooth / RFID/4G/Ethernet optional |
|
Protocol |
OCPP1.6J |
|
Connector |
IEC 62196-2 Type 2 (Mennekes)/SAE J1772 (Type 1)/GB/T 20234 |
|
Protection |

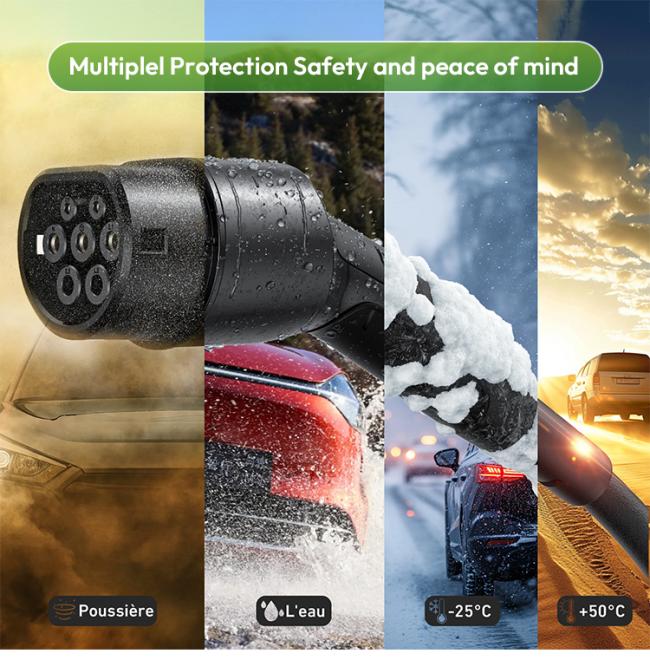

IP54 / IK08 |
This commercial-grade 7kW 32A AC EV Charger is designed for high-density residential parking, commercial workplaces, and fleet depots. It solves three critical points for overseas operators:
Grid Capacity Limits: Delivers maximum single-phase charging speed 7kw 32A on standard 230v connections without requiring expensive three-phase grid upgrades.
Logistics & Installation Costs: The ultra-compact structural design reduces ocean freight volume by 30%, maximizing pallet loading efficiency and lowering shipping costs per unit.
Interoperability & Lock-in: Fully open OCPP 1.6J (JSON) protocol ensures seamless integration with any standard third-party Central Management System (CMS), preventing software lock-in.
Compliance & Certifications
Electrical Safety: Certified in compliance with IEC 61851-1:2017 (Electric vehicle conductive charging system) and IEC 61851-21-2:2018 (EMC requirements).
Regional Market Access: Standard configurations meet European CE (LVD/EMC/RED) marks, Australian RCM guidelines, and Indian BIS component safety thresholds.
Upstream Supply Chain Integrity: The internal switching components utilize industrial-grade MCCB protection, and all structural plastics are UL94 V-0 flame retardant rated.

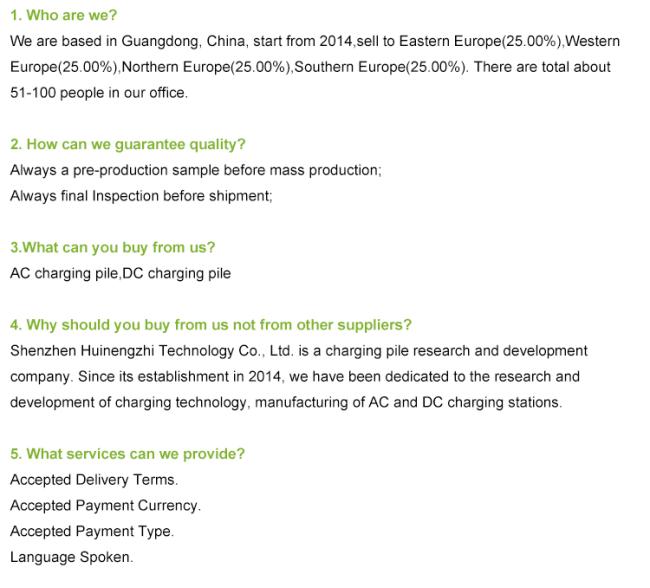

1. who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Europe(25.00%),Western Europe(25.00%),Northern Europe(25.00%),Southern Europe(25.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
AC charging pile,DC charging pile
4. why should you buy from us not from other suppliers?

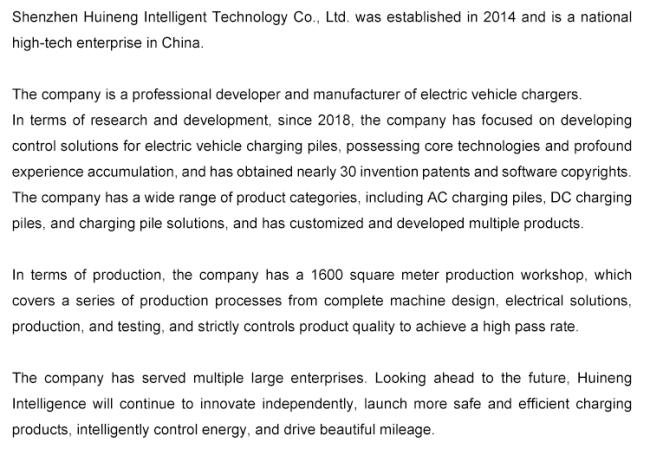

Shenzhen Huinengzhi Technology Co., Ltd. is a charging pile research and development company. Since its establishment in 2014, we have been dedicated to the research and development of charging technology, manufacturing of AC and DC charging stations.
5. what services can we provide?
Accepted Delivery Terms: -;
Accepted Payment Currency: -;
Accepted Payment Type: -;
Language Spoken:
6. Can this 7kW charger be managed by a third-party white-label software platform?
A: Yes. With full OCPP 1.6J compliance, the charger allows operators to change the WebSocket URL via a local configuration web page or app, connecting instantly to any third-party CMS for billing, user authorization, and firmware OTA updates.
7.How does the charger protect against over-temperature issues in high-ambient countries like India or Thailand?
A: The internal PCBA control board and the charging plug handle heat via built-in temperature sensors. If temperatures exceed 85, the charger triggers an automatic linear current-derating mechanism, dropping from 32A-16A before a full safety shutdown is required.
