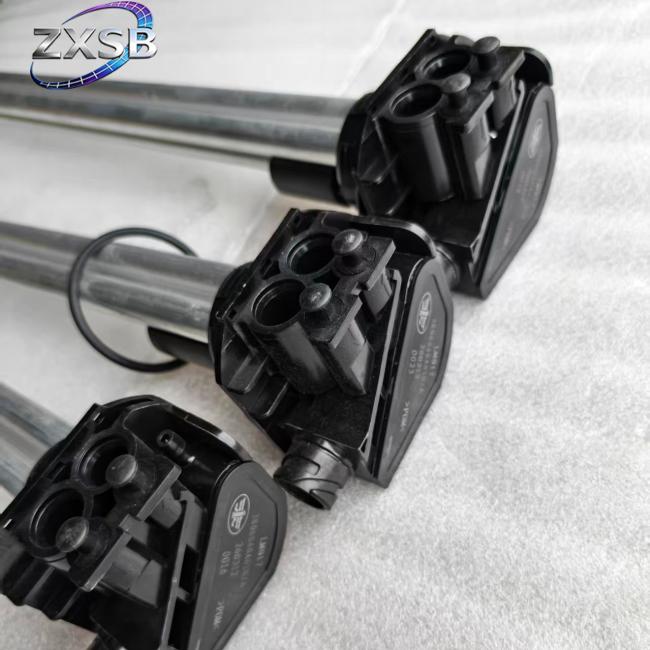

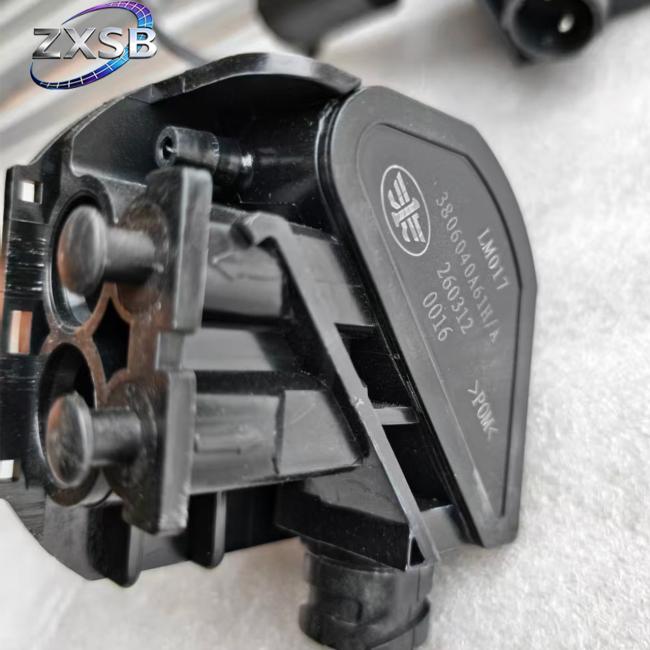

FAW Jiefang J6 Truck Fuel Tank Level Sensor Float Assembly 3806040A61HA

Fuel Level Sensor Assembly 3806040A61HA For FAW Truck Spare Parts

 3806040A61HA can detect the remaining fuel level in the fuel tank in real time and convert the detected physical fuel level into an electrical signal, which is then transmitted to the instrument panel (displaying the fuel gauge needle/remaining driving range) or the vehicle's computer (ECU/vehicle networking terminal).

Basic Attributes

Core materials:Corrosion-resistant aluminum alloy/stainless steel measuring rod, high-density float, and oxidation-resistant precision resistor.

Output signal:Standard resistance signal (matching vehicle dashboards or vehicle networking ECUs).

Compatible Models
FAW Group: Jiefang J6P, JH6, J6L and other series of heavy-duty trucks

Compatible fuel tanks: Primarily suitable for standard diesel tanks of specific heights (e.g., D-type or square).

Product Features

Precision Linear Measurement: Utilizing a high-precision resistive sliding contact structure, it can reflect real-time changes in fuel level in the tank, effectively avoiding issues like fluctuating or inaccurate readings on the instrument panel fuel gauge.

Diesel Corrosion Resistant Design: Both the measuring rod and float are made of special materials resistant to long-term immersion and diesel scale buildup, preventing component jamming or failure due to chemical reactions.

Vibration and Shake Resistance Filtering: Optimized for heavy-duty truck road conditions, the float maintains relatively stable fuel level data acquisition even when the vehicle is climbing hills, braking, or experiencing road undulations.

Standard Sealed Socket: The plug interface offers excellent dust and water resistance, and the mounting flange features an oil-resistant sealing gasket, preventing oil leakage from the top of the fuel tank or infiltration of external moisture.

In-Situ Non-Destructive Replacement: The mounting holes perfectly match the original vehicle's standard flange, and the wiring terminals are directly plugged in, requiring no modification to the existing vehicle electrical wiring.

Product Specifications
