China TABER abrasion tester Leather Rubber Cloth Abrasion Tester Glass Wear Resistance Tester for sale

TABER abrasion tester Leather Rubber Cloth Abrasion Tester Glass Wear Resistance Tester

Name: TABER abrasion tester Leather Rubber Cloth Abrasion Tester Glass Wear Resistance Tester
Brand: Dongguan Dongjun Testing Equipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 15-25Work days

Brand: Dongjun

Product Description

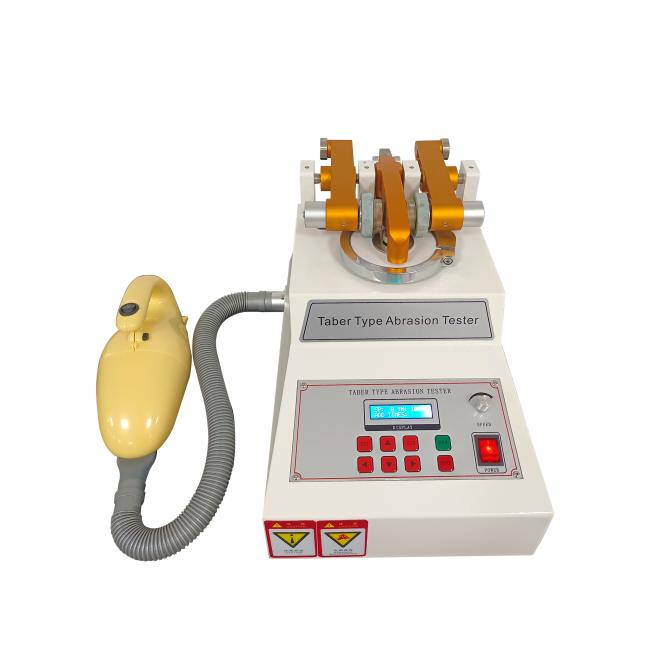

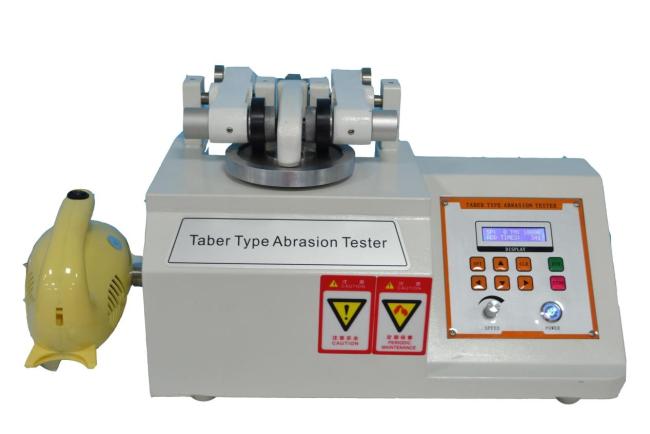

TABER abrasion tester

Product Overview

The TABER Abrasion Tester (also known as the Taber Abrasion Tester) is a classic rotating-platform accelerated abrasion testing instrument. By simulating multi-directional friction conditions, it rapidly evaluates the abrasion resistance and durability of material surfaces, and is widely used in research and development as well as quality inspection across industries such as plastics, coatings, leather, paper, and flooring.

Parameters

Parameter Item	Specification
Test piece	outer diameter 110mm, inner diameter 8mm
Abrasion wheel	ф2" (Max.52mm) (W)1/2"
Center distance between abrasion wheels	63.5mm
Center distance between the abrasion wheel and the test piece disk	37～38mm
Rotational speed	adjustable from 60 to 72 r/min
Load	250, 500, 750g
Counter	LED 0～999999
Distance between test piece and dust suction port	3mm
Volume	45×35×42cm
Weight: Approx.	30kg

Product Features:

Exclusive wear process
Place the material to be tested on the turntable, and two grinding wheels press against the material with a certain weight to cause wear.
When the sample is subjected to wear, the surface material of the sample undergoes omnidirectional particle abrasion to form a complete circular ring.
The grinding wheels rotate along with the rotation of the sample plate, generating relative motion and wear; meanwhile, the offset of the grinding wheel shaft relative to the turntable shaft during rotation produces sliding motion, thereby wearing the material.

Test Purpose:

Simulate actual usage conditions or meet the test conditions specified in standards.
A variety of different abrasion media and accessories can be selected for various tests.
Repeated tests can be conducted on the same point of one material, and materials up to approximately 0.5 inches thick can be damaged or abraded away.
Two rotational speeds (60 rpm, 72 rpm) and three types of load can be set.
A vacuum cleaner is used to remove abrasive debris.
The suction arm of the vacuum pump is connected to the adjustable device on the back of the instrument via a hinge, allowing precise height adjustment to accommodate different sample thicknesses.
This ensures the stability and accuracy of the test.
Strict control guarantees reliable results.
The selected grinding wheels and abrasives have undergone rigorous quality control, featuring high quality and excellent stability.

Company Profile

PACKING AND TRANSPORTATION

FAQ

How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
