Auto Sensing Hands Free Barcode Scanner CMOS 2D Bluetooth Scanner For Restaurant Shop
Low Power Consumption Hands Free Barcode Scanner Bluetooth 2D Auto Sensing Reader for Restaurant Shop Warehouse Medical Clinic Scenic Area Device factory direct
-

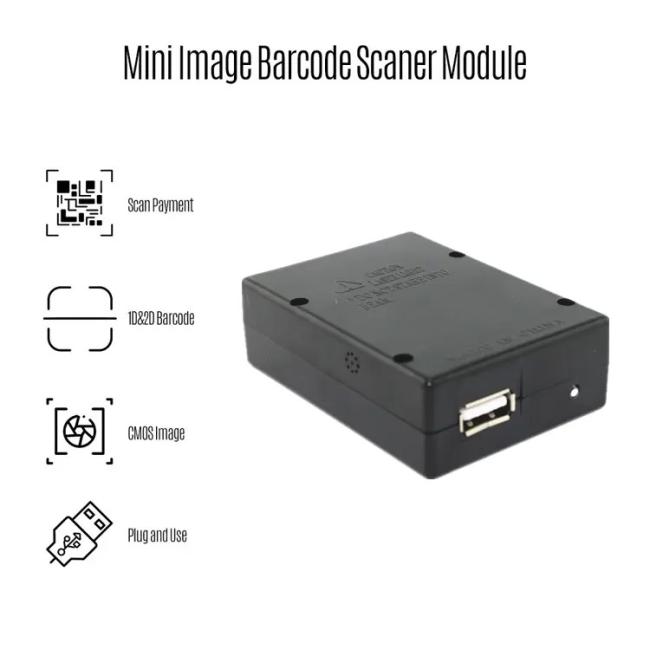

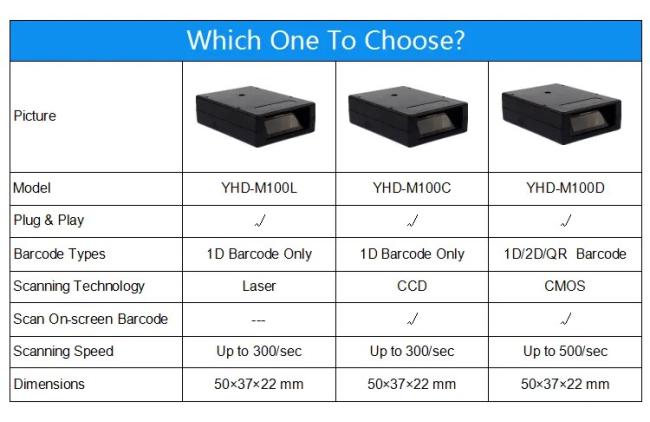

【Application fields】- -The YHD-M100D Barcode Scanner Module is engineered to read a wide variety of barcode formats, including QR codes, Data Matrix, and traditional 1D barcodes. With its advanced imaging technology, it ensures rapid and accurate scanning, even in challenging environments. Whether you’re in retail, logistics, or healthcare, this module is your go-to solution for quick data entry and inventory management.
【kinds of output interfaces】- -The module supports multiple interfaces, including USB, Mirco USB, RS232, and TTL, allowing for seamless connectivity with various devices such as tablets, smartphones, and computers.
【Decode Capability】- -1D Code:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,etc.
- -2D Code: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.
【Small size】- -Easily to integrate into any device, especially for limit space application.
| Imaging Sensor | CMOS |
| Optical Source | 620nm Visible red light diode |

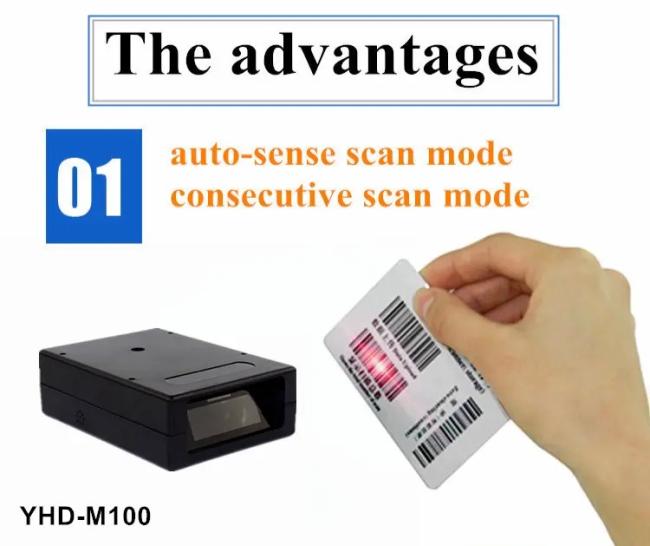

| Trigger Mode | Continuous,Auto-Induction |
| Indication | Buzzer & LED |
| Resolution Ratio | 640*480 CMOS |
| Decoding Speed | 500times/second |
| Interface | RS232,USB,TTL,Micro USB |
| Resolution | 4mil |
| Dimensions(scanner) | 70 *50*23 mm(Length x Width x Height) |
| Weight(without cable) | 47g |
| Minimum Contrast | ≥ 25% |
| Decoding Capability | 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5,Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc. 2D:QR Code,Micro QR,Data Matrix ,PDF417,Micro PDF417,Aztec |
| Depth of field | 40-120mm Code 39(5MIL) 20-300mm EAN-13 (13MIL) 25-340mm Code 39(20MIL) 15-500mm Code 39(40MIL) 20-150mm PDF417(6.8MIL) 15-250mm QR Code(20MIL) |
| Scan Angle | Roll 360° , Pitch± 65° , Skew ±60° |
| Current | Max. : 212mA Working :156mA～212mA Stand-by : 156mA |
| Working Voltage | DC3.3V |
| Storage Temperature | -40°C ~ 70°C / -40°to 158° F |
| Working Temperature | -20°C ~ 60°C / -4°to 140 ° F |
| Relative Humidity | 0%-95%Relative humidity, no condensation state |
| Drop test | 1.5m fall to concrete |
| Certificate | CE,FCC,RoHS,IP54 |
